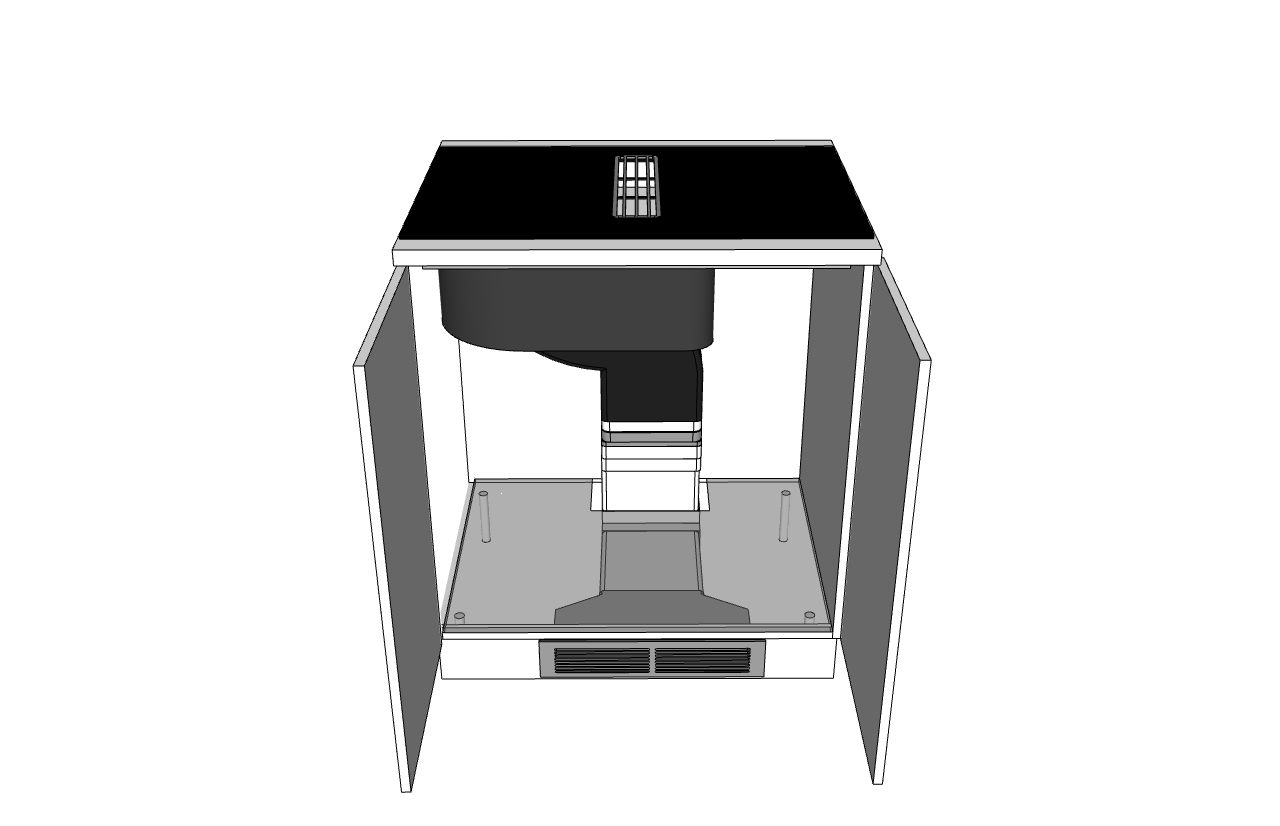

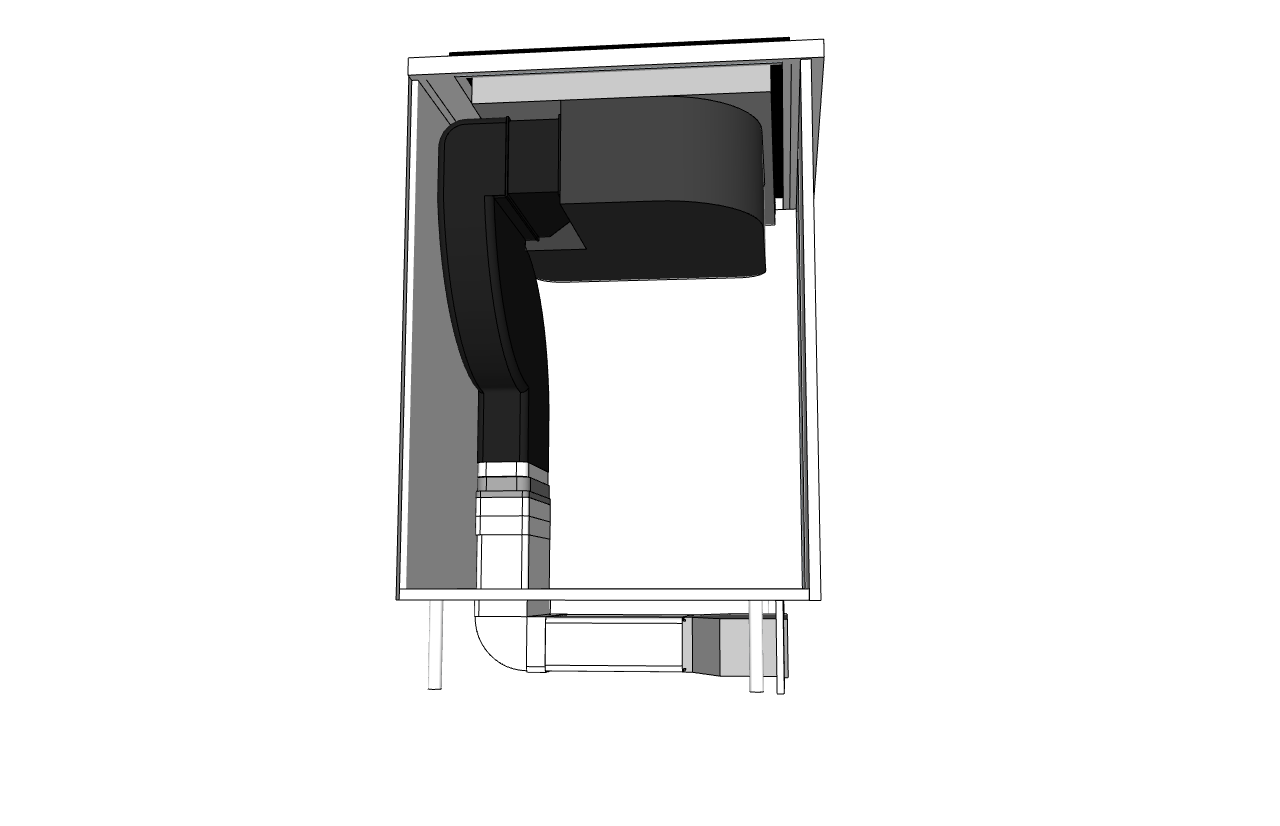

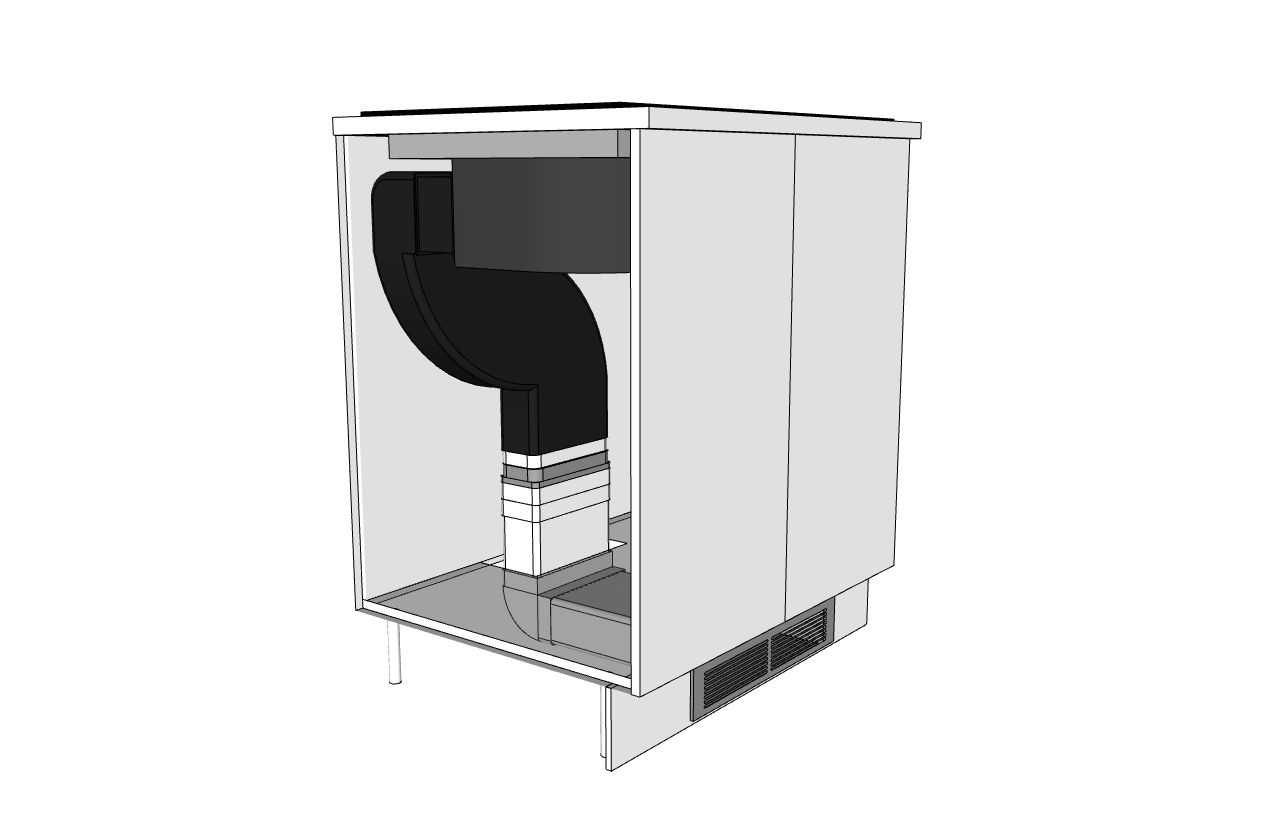

Kit for recirculation - high for Downdraft One
535.99.5002.9
Complete recirculation kit for Downdraft One, ensuring efficient airflow and easy installation. A simple solution with a complete duct package – it doesn't get easier than this.
Complete duct kit for recirculation, specifically designed for Downdraft One. It ensures efficient airflow and simple installation for recirculation. The kit is specially designed for the Downdraft One cooktop and provides high performance in the large 220x90 mm duct.
Features
Efficient airflow through solid ducts that minimize resistance and improve performance
Durable materials with white plastic ducts, galvanized plinth grille, and stainless steel front grille
Easy installation ensured by easy-to-mount components and sealing material for simple setup

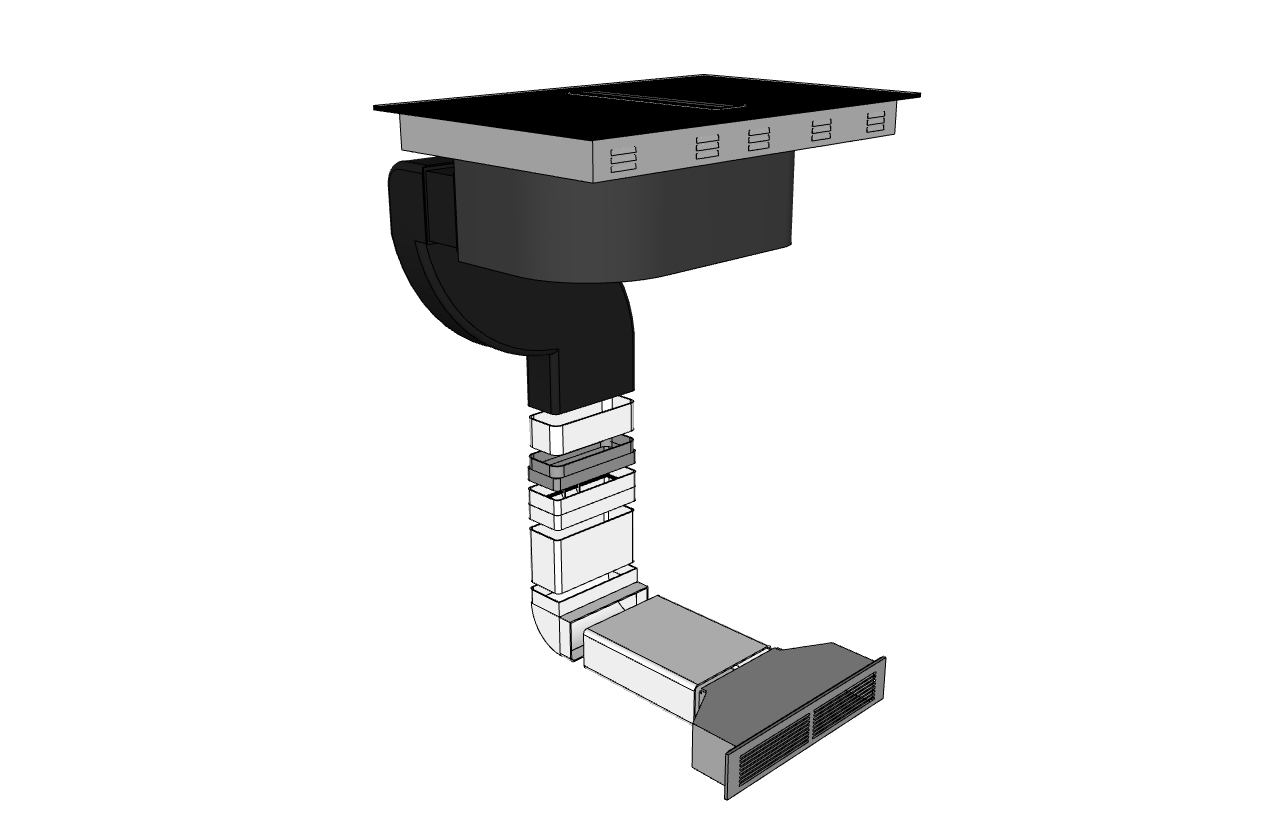

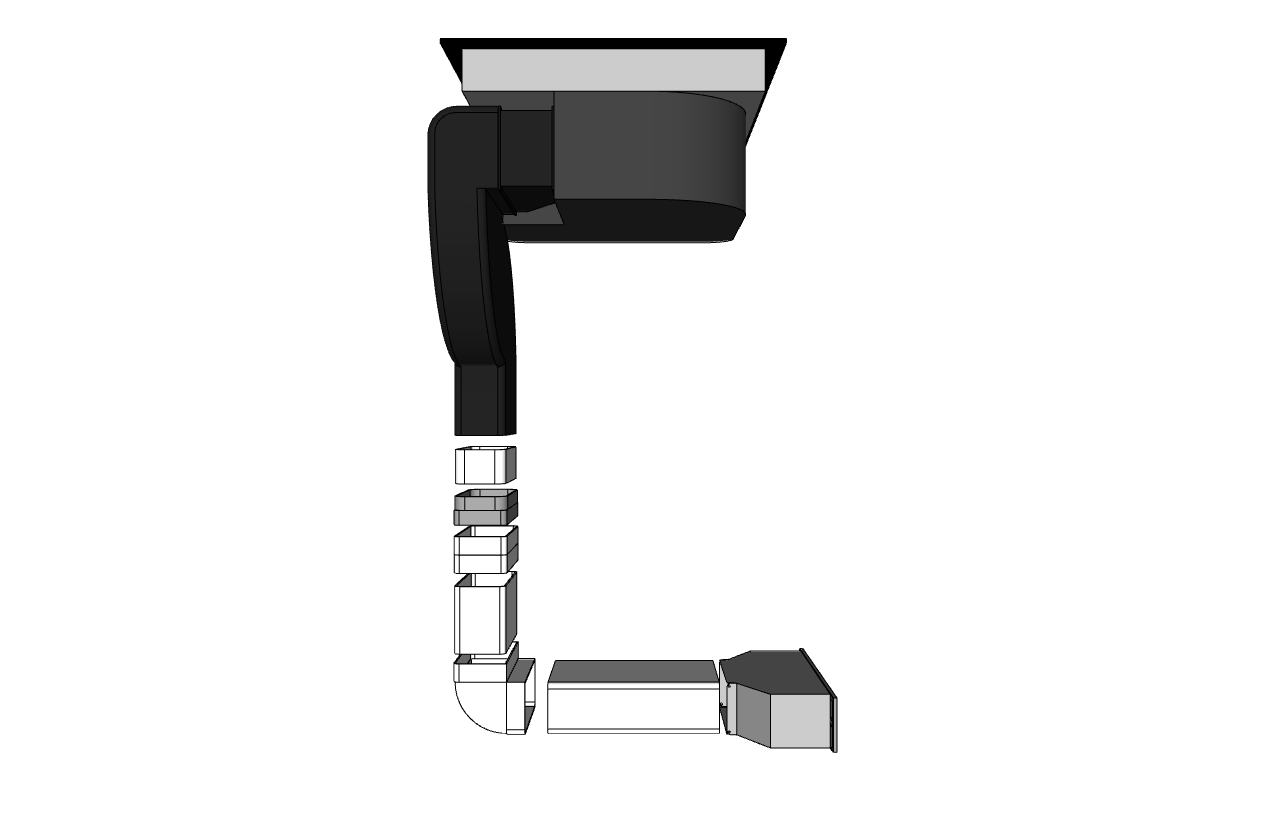

Kit contents:
1x Intermediate piece 222x89 mm L 80 mm
1x Adapter 222x89 mm to 220x90 mm
1x Coupling sleeve 220x90 mm
2x Flat duct 220x90 mm L 500 mm
1x Vertical bend 220x90 mm
1x Plinth grille without carbon filter
1x Sealing tape for sealing joints
A practical solution for an effective and discreet recirculation installation
- Specially designed for Downdraft One
- Complete duct kit for recirculation
- Efficient airflow with solid ducts for minimal resistance
- Durable materials in plastic, galvanized, and stainless steel
- Easy installation with included sealing material
Specifications
Material
Stainless steel
Weight and measurements
Maximum width [mm]
455
Maximum depth [mm]
500
Maximum height [mm]
90
Packaging width(mm)
540
Packaging depth [mm]
455
Packaging height(mm)
250
Net weight [kg]
3.82
Weight
4.52
Other specifications
EAN
5703347534799
BodyColor
Stainless steel
Material
Stainless steel
Downloads
Here you will find all documents relevant to this product
