Kit for recirkulation - lav sokkel for Nordic 6910
535.99.6001.9
Complete recirculation kit for Nordic 6910 that ensures efficient airflow and easy installation. Ideal for kitchens with low plinths, as the plinth grate is only 6 cm high.

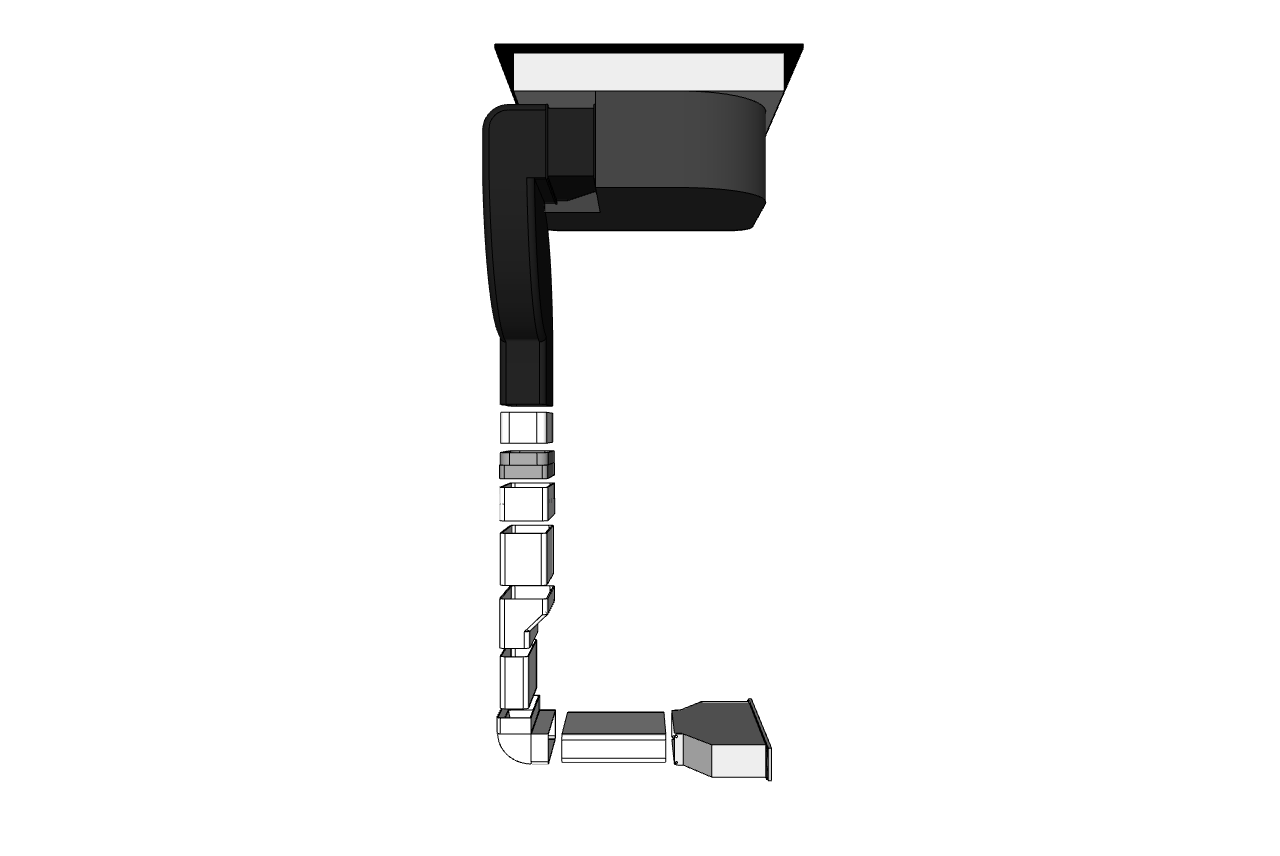

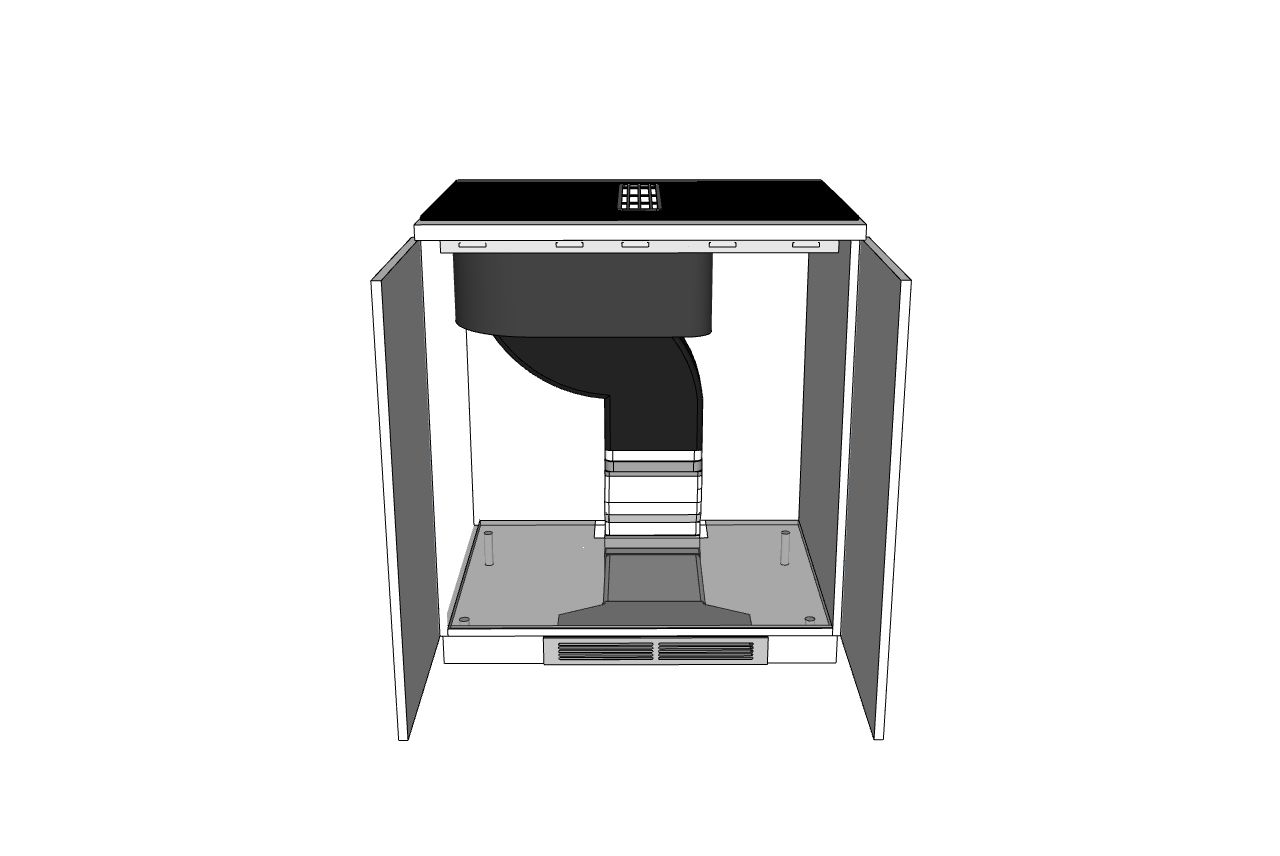

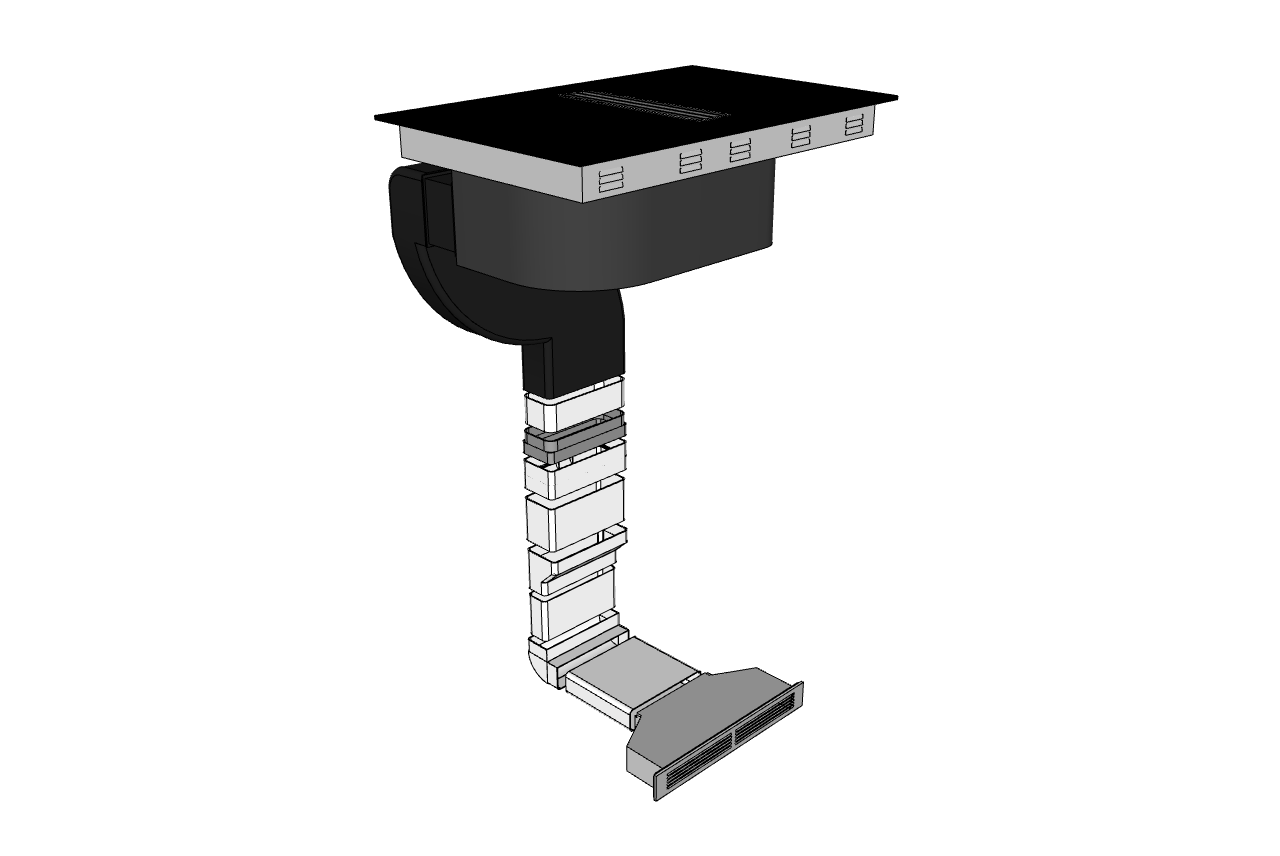

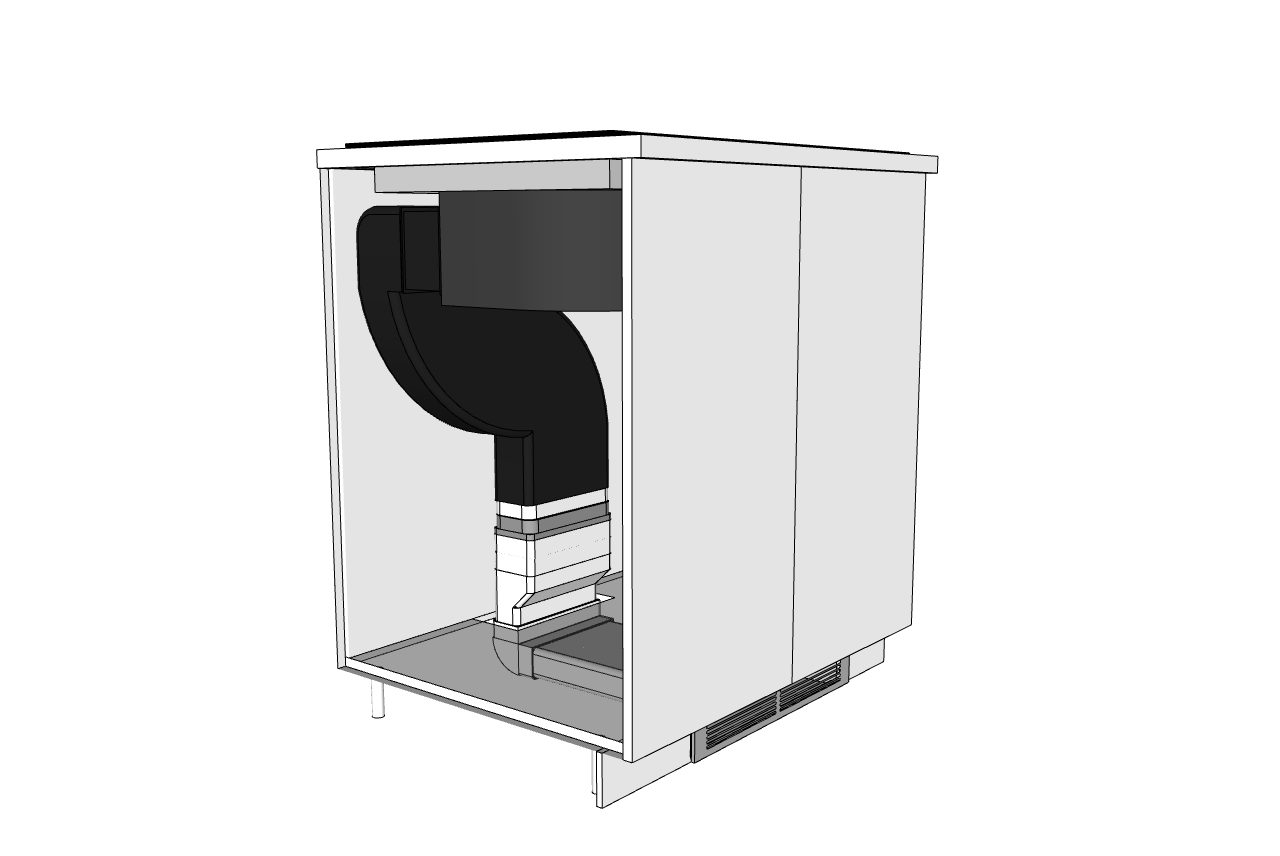

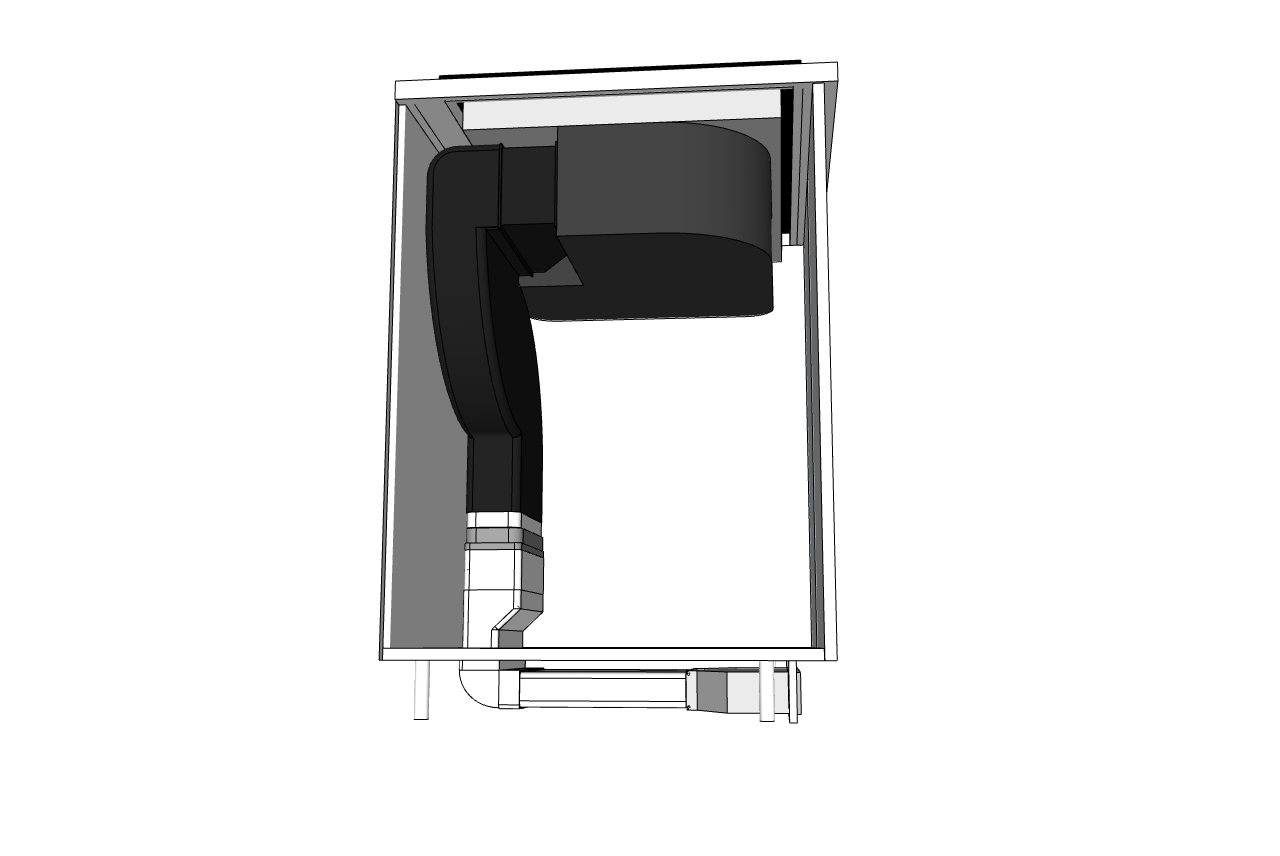

Complete recirculation pipe kit, designed specifically for Nordic 6910. This ensures an efficient airflow and a simple installation for recirculation. The kit specially designed for the Nordic 6910 hob and for kitchens with a low plinth, as the plinth grate is only 6 cm high
Properties
Efficient airflow at fixed pipes that minimizes drag and improves performance
Robust materials with white plastic channels, galvanised plinth grille and stainless steel front grille
Easy installation is ensured by easy-to-assemble components and sealing material for simple installation
Contents of the kit:
Spacer 222x89 mm L 80 mm
Adapter 222x89 mm to 220x90 mm
Connectors 220x90 mm
Flat duct 220x90 mm L 500 mm
Transition 220x90 mm to 220x55 mm
Flat Duct 220x55 mm L 500 mm
Vertical bend 220x55 mm
Pedestal grating without carbon filter
Tapes for sealing joints
A practical solution for an efficient and discreet recirculation installation
- Fits Nordic 6910 and low plinth kitchens
- Complete pipe kit for recirculation
- Efficient airflow with fixed tubes for minimal resistance
- Durable materials in plastic, galvanized and stainless steel
- Easy installation with supplied sealing material
Specifications
Material
Stainless steel
Weight and measurements
Maximum width [mm]
455
Maximum depth [mm]
500
Maximum height [mm]
60
Packaging width(mm)
540
Packaging depth [mm]
455
Packaging height(mm)
250
Net weight [kg]
3.62
Weight
4.32
Other specifications
EAN
5703347534652
BodyColor
Stainless steel
Material
Stainless steel
