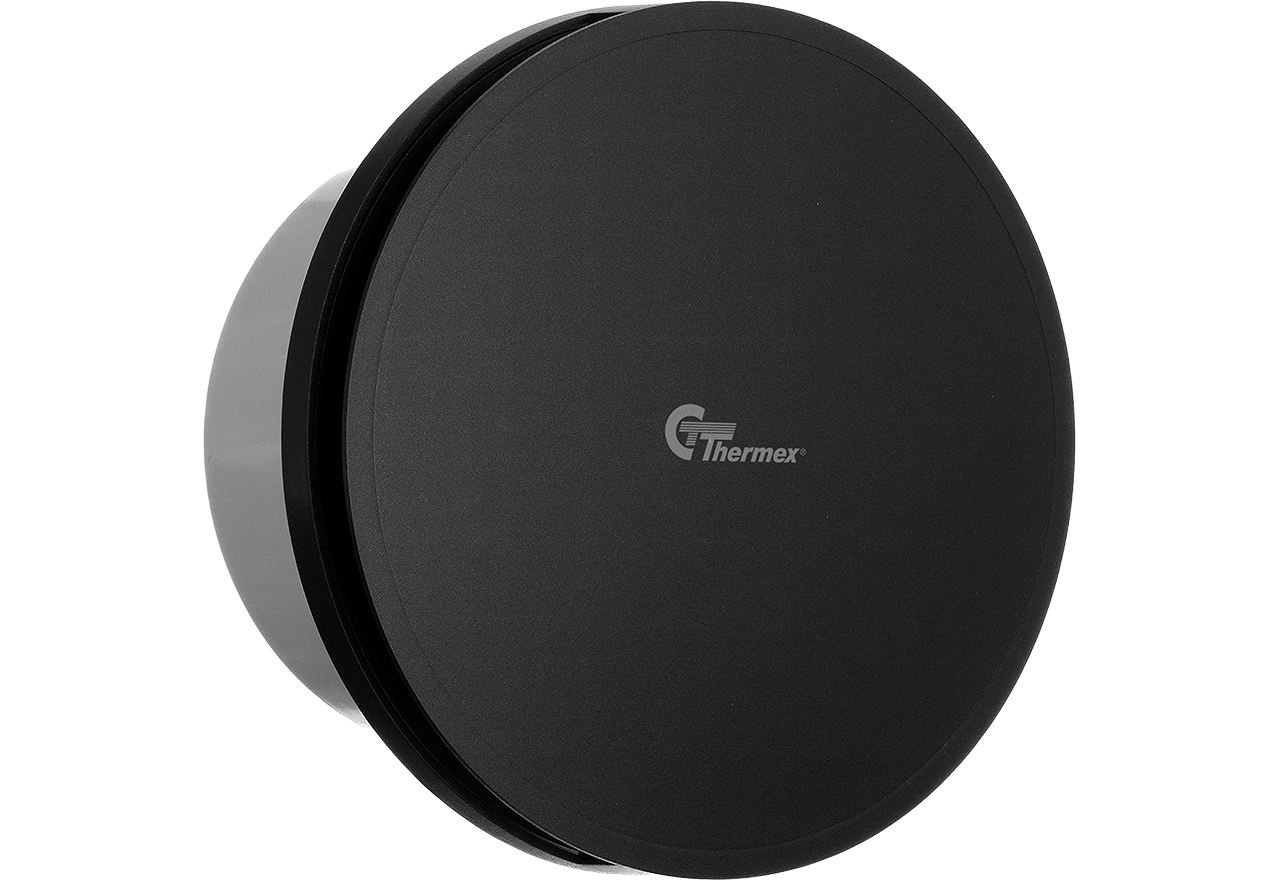

Moon 100 HT – Black
200.50.4012.2
Moon 100 HT in black is a round fan with automatic humidity control and timer – discreet and effective in modern spaces.
Color
Options
Automatic fan with humidity sensor and timer
The Thermex Moon 100 HT in black combines intelligent control with a sleek, round design. The fan is equipped with an adjustable hygrostat and overrun timer that activates and adapts operation to the room’s needs – perfect for modern bathrooms.
The black design makes it particularly suitable for darker interiors. Ball bearings ensure long-lasting and stable operation, while the low noise level makes it almost silent in use.
Features:
Automatic humidity control (60–90% RH)
Overrun timer: 1–30 minutes
Ball bearings for quiet operation
Matte black, round front design
Fits Ø100 mm ducts
Technical specifications:
Voltage: 230 V ~ 50 Hz
Power consumption: 15 W

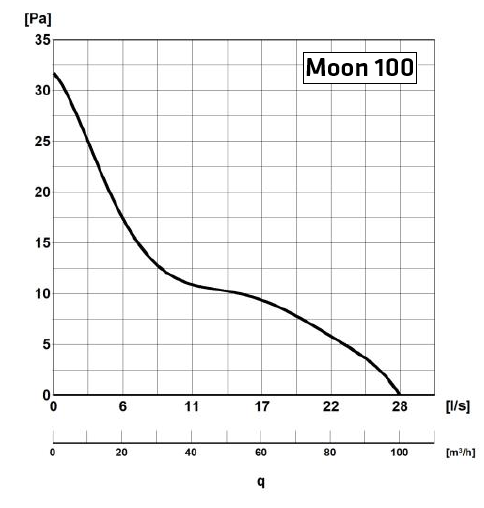

Airflow: 100 m³/h
Sound pressure: 26 dB(A) at 3 metres
Speed: 2550 RPM
IP rating: IPX4
Insulation class: B
Operating temperature: 5 °C to 40 °C

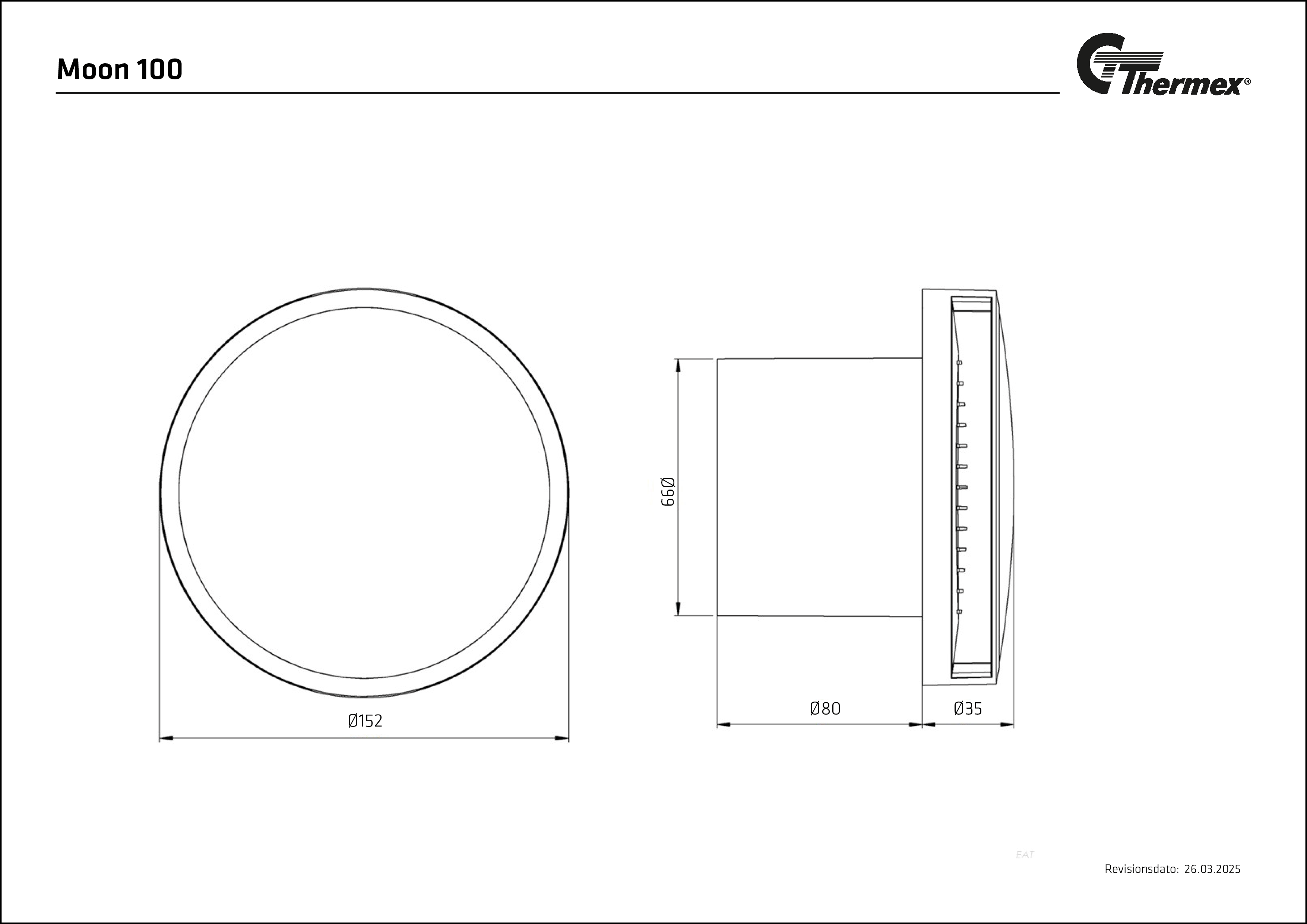

Dimensions (DxH): Ø150 x 95 mm
Duct connection: Ø100 mm
Moon 100 HT – Black is ideal for those looking for a discreet, automatic ventilation solution with a modern look.
- Adjustable hygrostat (60–90 % RH)
- Adjustable overrun timer (1–30 min)
- Low noise level: 32 dB(A)
- Black front in round shape
- Durable design with ball bearings
Specifications
Energy consumption [W]
15
Luftmængde ved 0 Pascal [m3/t]
100
Kapslingsklasse
IPX4
Control
None
Material
Plastic
Voltage [V]
230
Specifications
Energy consumption [W]
15
Luftmængde ved 0 Pascal [m3/t]
100
Kapslingsklasse
IPX4
Control
None
Material
Plastic
Voltage [V]
230
Weight and measurements
Maximum width [mm]
152
Maximum depth [mm]
115
Maximum height [mm]
152
Aftræksdimension (mm)
Ø100
Packaging width(mm)
159
Packaging depth [mm]
120
Packaging height(mm)
156
Net weight [kg]
0.42
Weight
0.53
Features
Control
None
Timer funktion
Ja
Fugtsensor
Ja
Technical specifications
Energy consumption [W]
15
Kapslingsklasse
IPX4
Luftmængde ved 0 Pascal [m3/t]
100
Maximum sound pressure at 3 meters [dB(A)]
32
Voltage [V]
230
Other specifications
EAN
5703347206504
BodyColor
Black
Material
Plastic
Max air temperature (° C)
40
Fan speed [rpm]
2550
