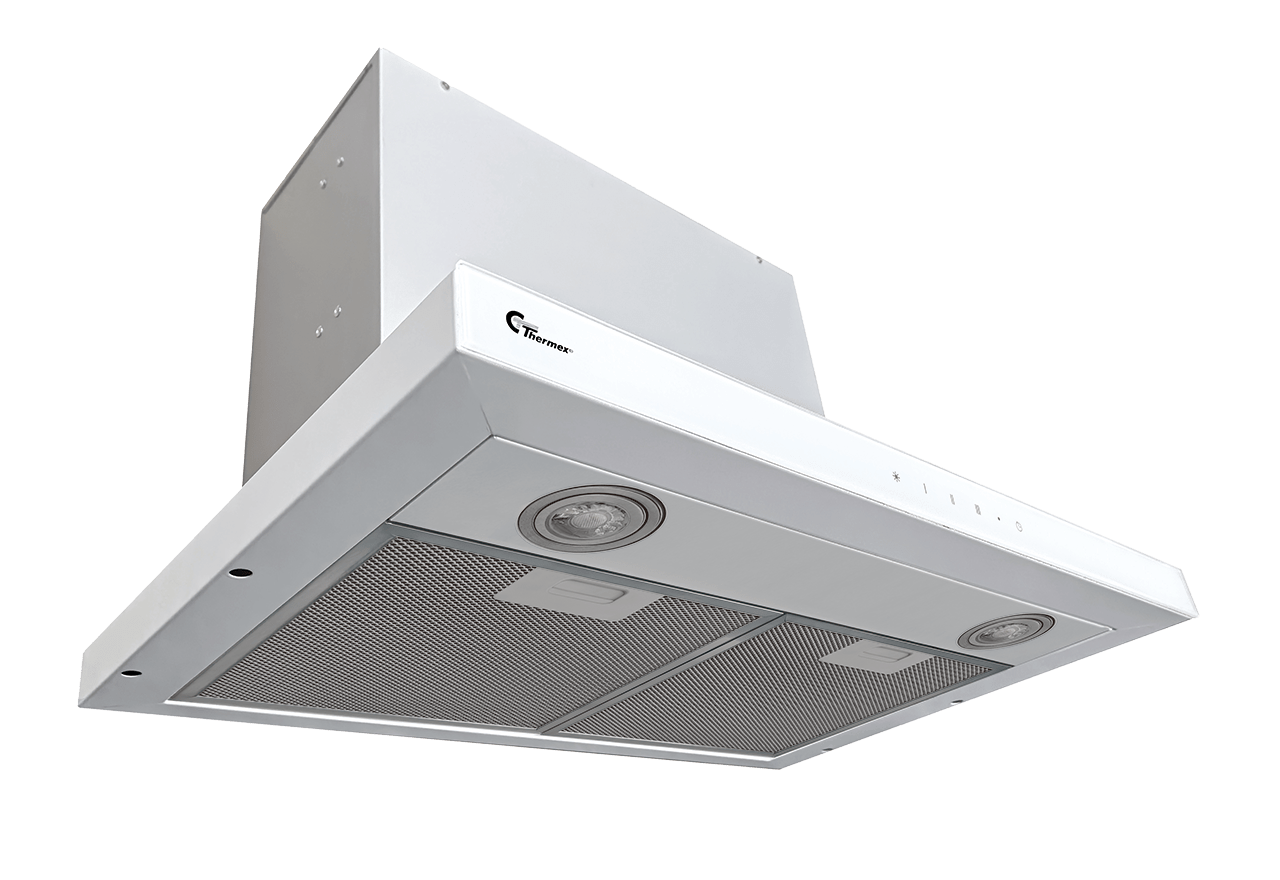

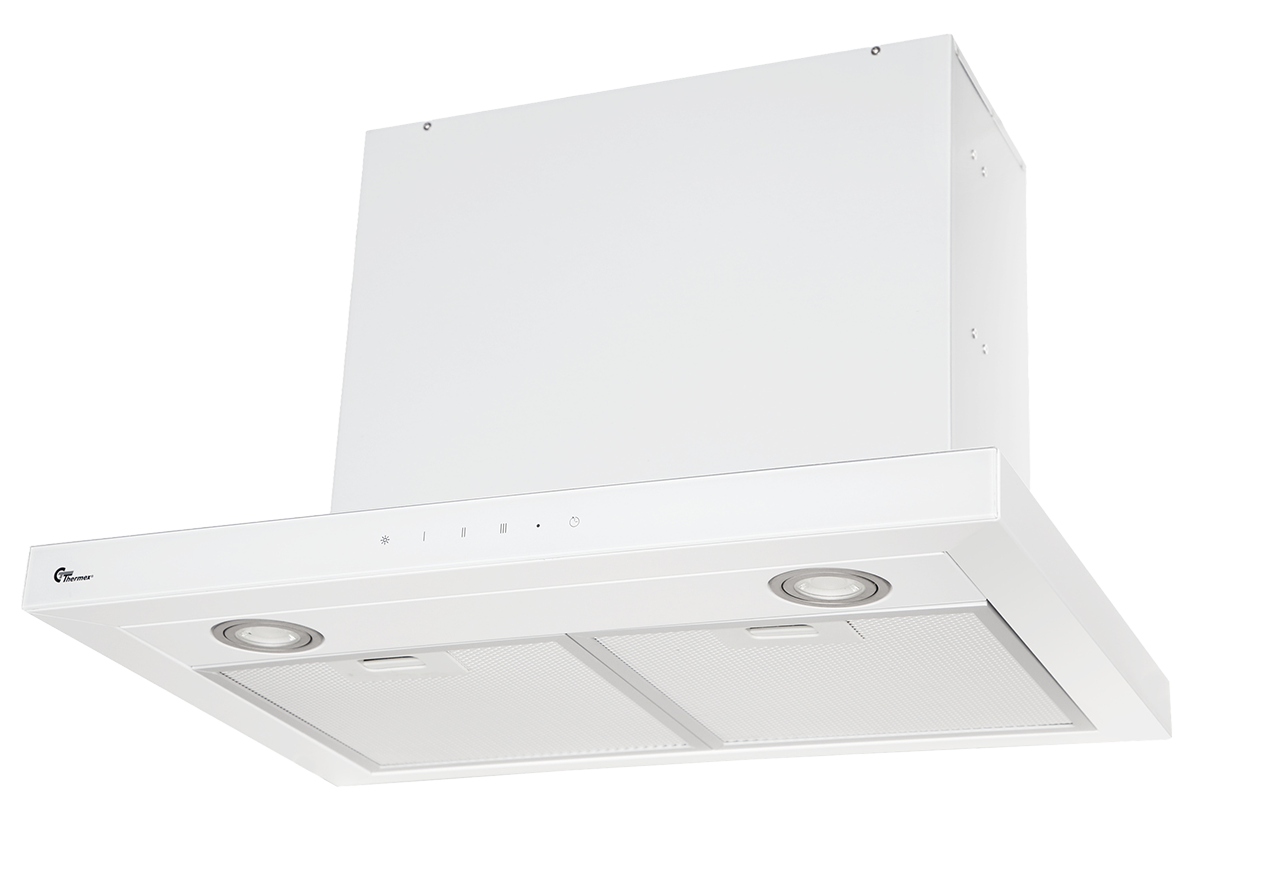

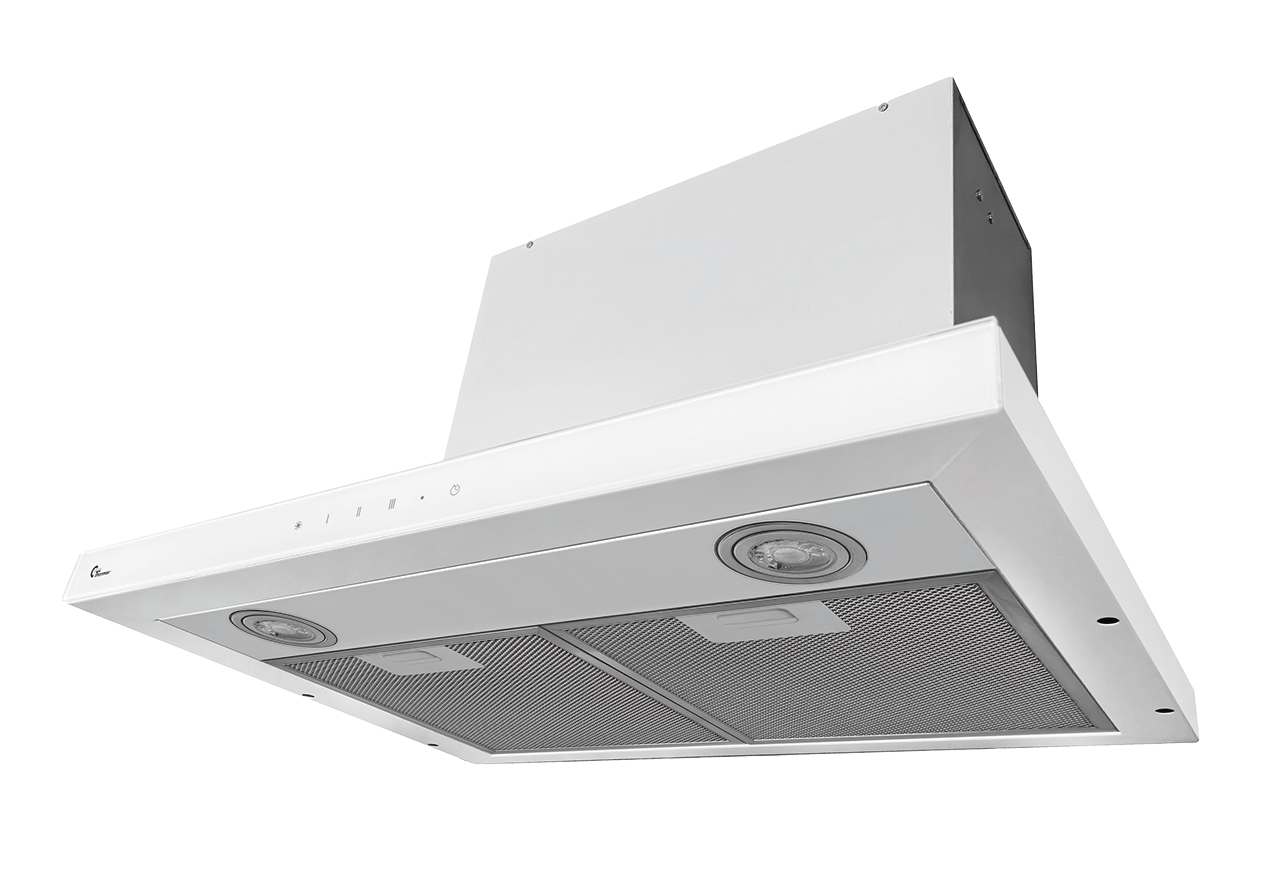

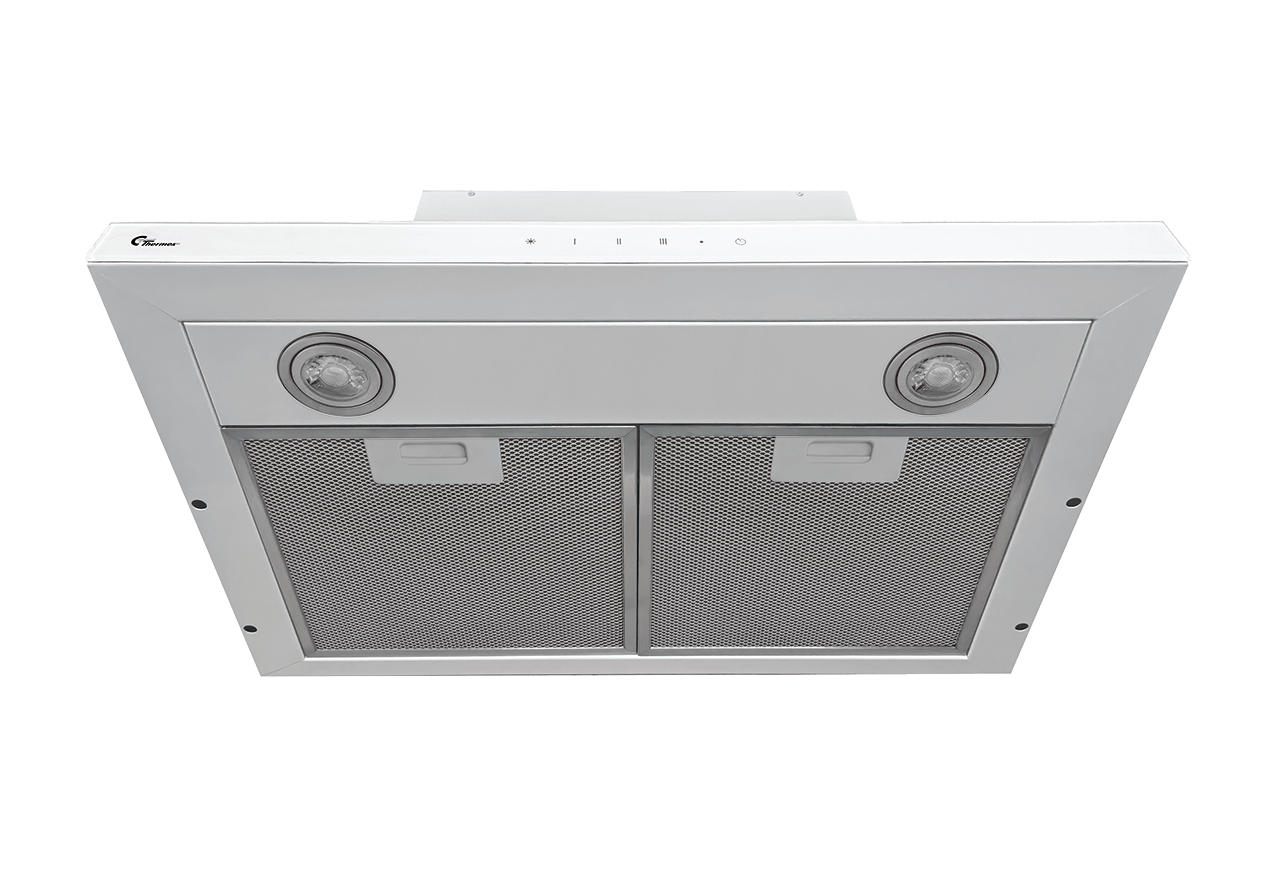

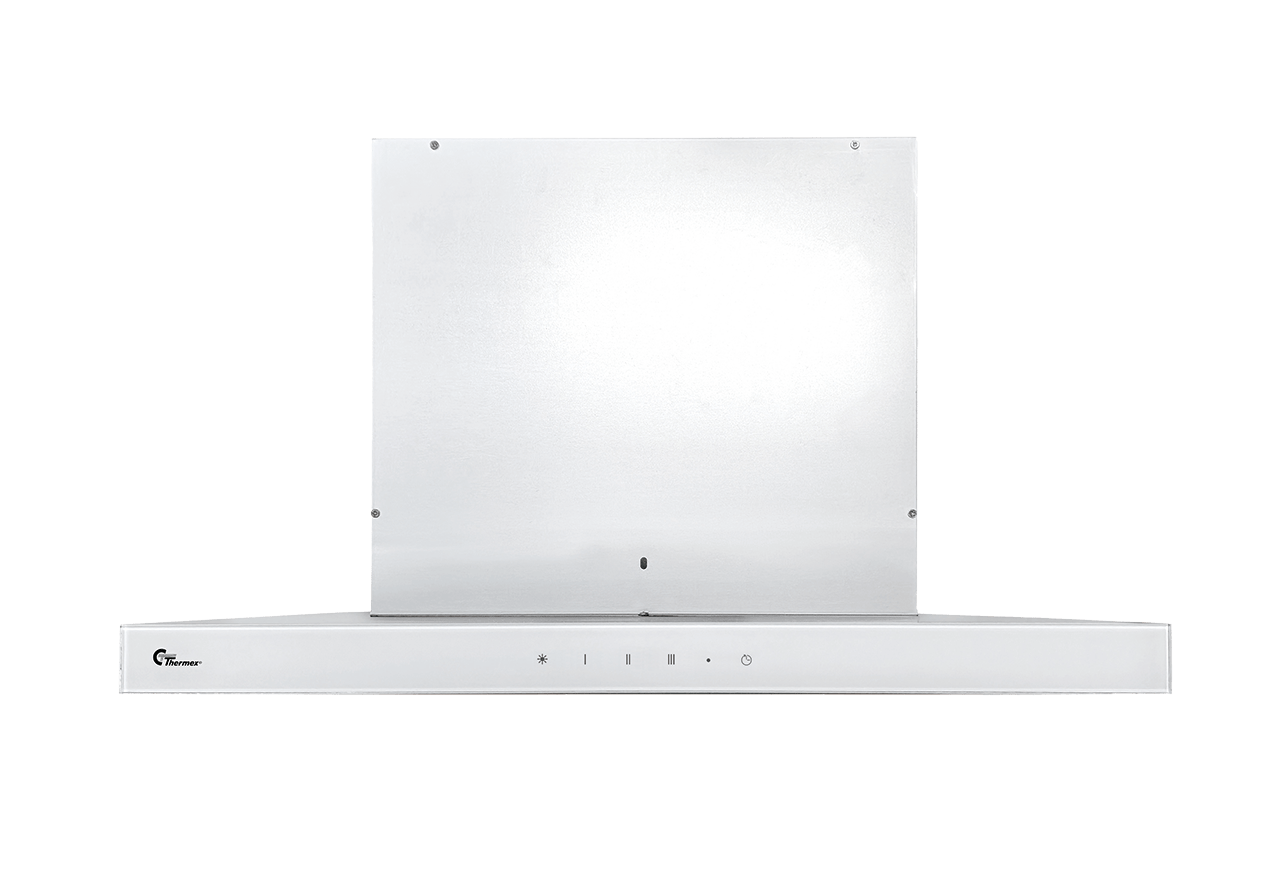

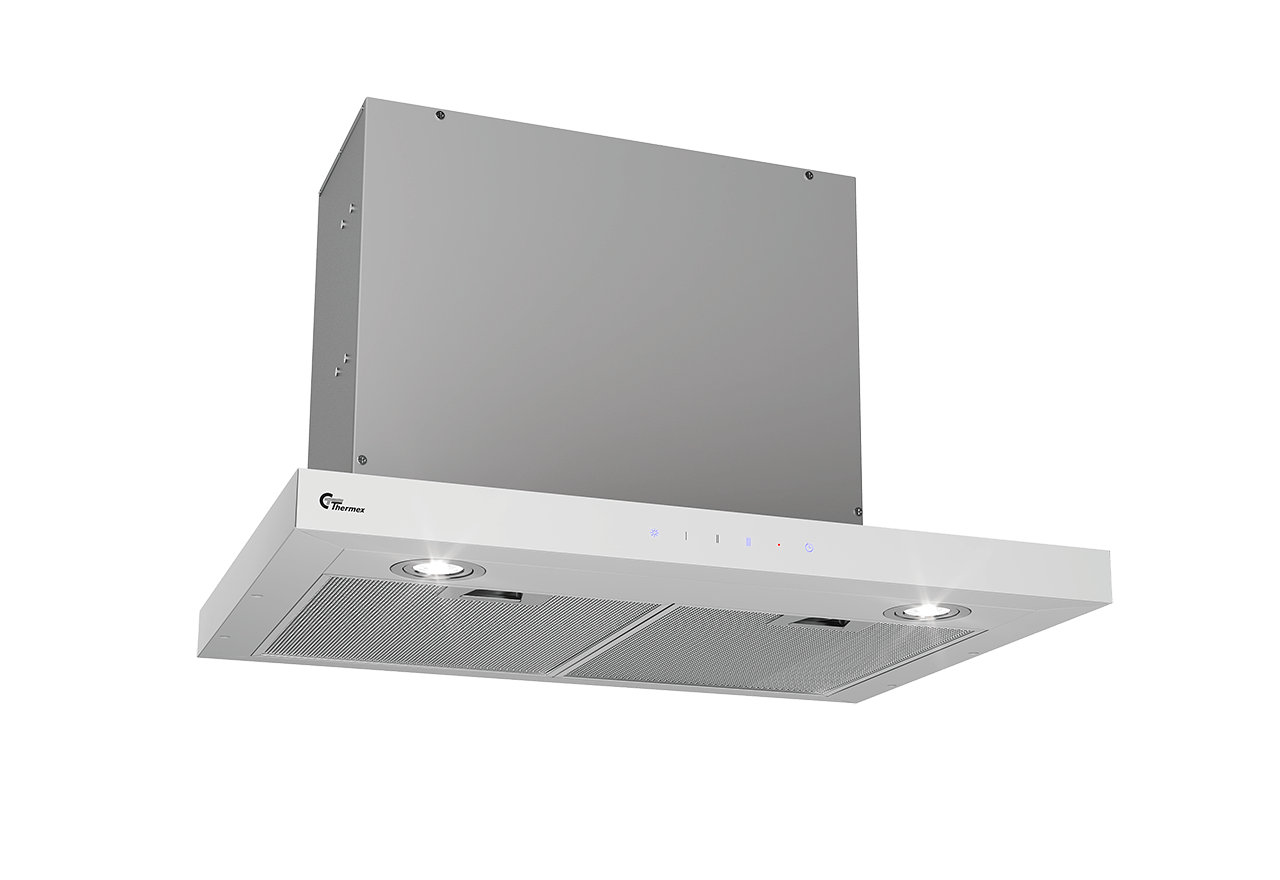

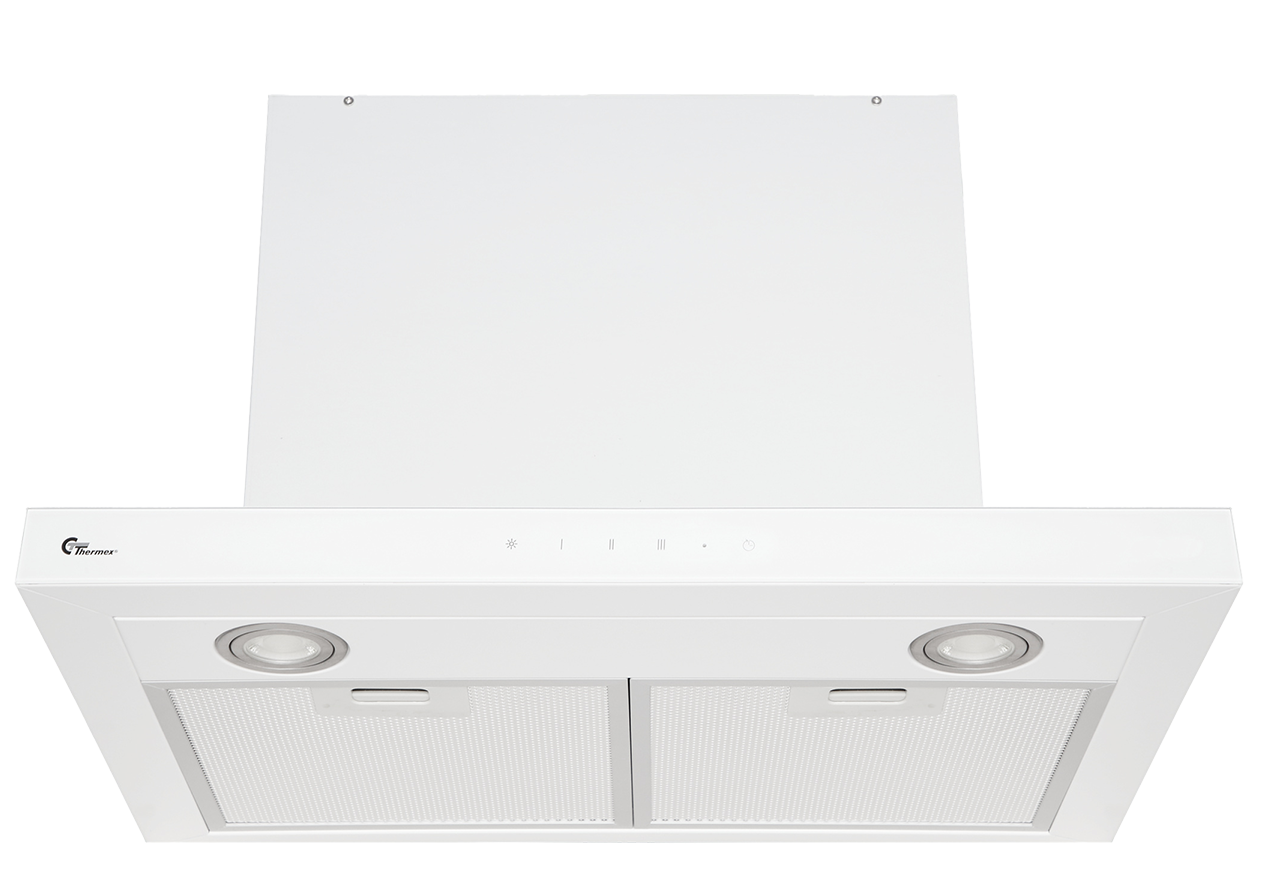

Nordic 6012
520.19.6061.2
Stylish cabinet-mounted cooker hood with glass touch, LED light and energy-efficient motor – perfect for discreet and efficient ventilation in modern kitchens.
Thermex Nordic 6012 is a cabinet-supported cooker hood with high performance and stylish design for modern kitchens.
Design and functionality
The cooker hood is made of white lacquered steel and has an elegant glass front, which adds a light and modern look. It is discreetly supported under the wall cabinet and takes up minimal space in the kitchen. With a width of 60 cm, it fits all standard kitchen cabinets and integrates effortlessly into the interior.
Features and operation
Nordic 6012 is operated via an intuitive glass touch surface, where you can easily control the four speeds, turn on the light and activate the timer function. The cooker hood is equipped with a built-in motor in energy class A, which delivers an air volume of up to 541 m³/h and ensures efficient extraction during cooking.
Noise
Despite the powerful motor, the noise level starts at only 37 dB(A). This makes the cooker hood suitable for kitchens where peace and quiet and the opportunity for conversation are desired, even when the cooker hood is in use.
Easy cleaning
The two included aluminium filters can be easily removed and cleaned in the dishwasher. The surfaces of the hood itself are wiped with a damp cloth, which makes daily cleaning both quick and easy.
Flexible installation
The cooker hood is intended for installation under wall cabinets and is delivered ready for extraction. If recirculation is required, a combined carbon and steel filter can be purchased, which easily replaces the standard filter and enables operation without extraction.
Nordic 6012 is an efficient and discreet cooker hood with modern features, low noise levels and a timeless design that fits perfectly into the modern kitchen.
- Reinforced model in white lacquered steel with elegant glass front
- Glasstouch operation with 4 speeds and timer function
- Low noise level from just 37 dB(A) – ideal for open kitchens
- Built-in motor with energy efficiency class A and air flow rate up to 541 m³/h
- 7 W and 3000 Kelvin LED light strip for bright work light
Specifications
Minimum airflow [m3/h]
183
Minimum-Soundpower [dB(A)]
37
Maximum-airflow [m3/h]
541
Maximum-Soundpower [dB(A)]
68
Energy consumption [W]
117
Control
Glass touch
Material
White painted steel
Voltage [V]
230
Projekteringsfane
Odour extraction test standard
Specifications
Minimum airflow [m3/h]
183
Minimum-Soundpower [dB(A)]
37
Maximum-airflow [m3/h]
541
Maximum-Soundpower [dB(A)]
68
Energy consumption [W]
117
Control
Glass touch
Material
White painted steel
Voltage [V]
230

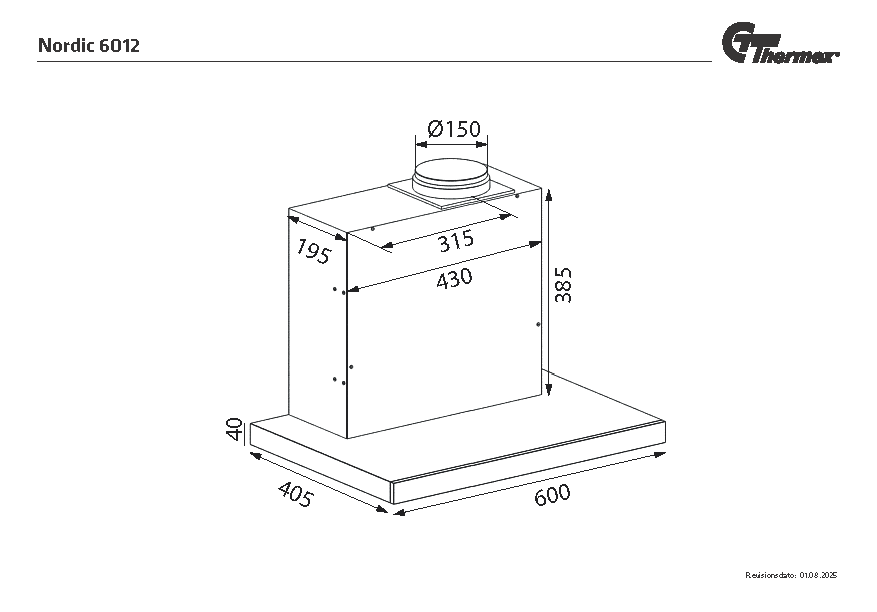

Weight and measurements
Maximum width [mm]
600
Maximum depth [mm]
405
Maximum height [mm]
425
Outlet dimension (mm)
Ø150
Packaging width(mm)
515
Packaging depth [mm]
505
Packaging height(mm)
650
Net weight [kg]
17
Weight
18
Features
Control
Glass touch
Boost funktion
No
Decor light
No
Timer funktion
Ja
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
Illumination (Emiddle) [lux]
496
LE value [lux/W]
146
LE-class
A
EEI-value
48.5
EEI-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
7
Total consumption of light (WL) [W]
7
GFE-value
73.3
GFE-class
D
FDE-value
26.2
FDE-class
B
AEC [kWh/h]
19.9
Energy consumption [W]
117
Type of plug
Schuko
Energiforbrug standby (Ps) [W]
0.36
Odour extraction test standard
Motor Power [W]
110
Voltage [V]
230
Other specifications
EAN
5703347534331
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.19.3600.9
Number of carbonfilters
1
Number of speeds ex (boost)
4
Number of lamps
2
Suction Bottom
Yes
Suction Front
Suction Edge
No
Longer vent pipe available
Vent pipe modification
Mounting
Cabinet substantiated
Motor type
Internal motor
Front panel color
White
BodyColor
White
Front panel material
White glass
Material
White painted steel
Downloads
Here you will find all documents relevant to this product
