Nordic 6414

545.21.6098.2

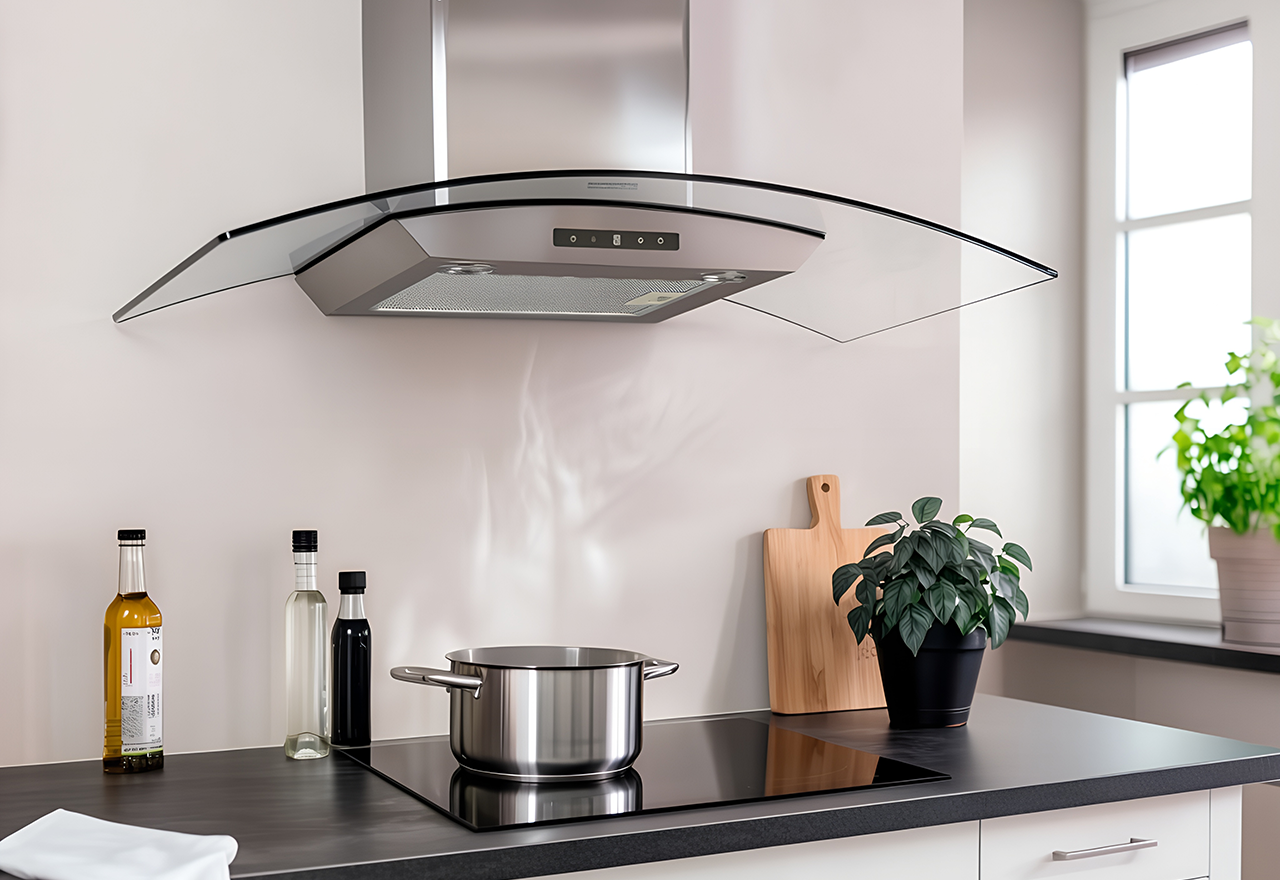

The Nordic 6414 in stainless steel with motor is a true classic with curved shapes in glass and steel. Powerful and reliable extractor hood with super simple glass touch operation.

Design and materials
Thermex Nordic 6414 in 90 cm is an elegant wall-mounted cooker hood made of curved clear glass and body and chimney in stainless steel. The timeless design makes it ideal for the modern kitchen, where aesthetics and functionality go hand in hand.

Intuitive operation
The cooker hood is operated via a glass touch display with digital display of the current stage of the motor. From here, the three speeds, the timer function and the light are controlled – all with a single touch. The user-friendly operation makes it easy to adjust the ventilation as needed.

Efficient performance
The Nordic 6414 is equipped with an extra-quiet and energy-efficient DC motor in energy class A+, which delivers a maximum air flow of up to 595 m³/h. With a sound level starting from just 43 dB(A), you can enjoy a quieter and more comfortable kitchen environment. The two built-in LED lights (2 x 1.5 W) ensure good and energy-saving lighting of your work area.

Easy cleaning
Cleaning is simple and maintenance minimal – the smooth glass surface is easily wiped off with regular window cleaner, and the included aluminium filter can be removed and cleaned in the dishwasher.

  • Elegant wall-mounted cooker hood with curved clear glass and stainless steel
  • User-friendly glass touch operation with digital display
  • Quiet and energy-efficient DC motor (energy class A+)
  • High capacity: up to 595 m³/h and noise level from only 43 dB(A)
  • Easy cleaning with dishwasher-friendly filter and easy-to-wipe glass

Specifications

Minimum airflow [m3/h]
217
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
595
Maximum-Soundpower [dB(A)]
66
Energy consumption [W]
78
Control
Glass touch
Material
Stainless steel and glass
Voltage [V]
230

Projekteringsfane

Odour extraction test standard

Specifications

Minimum airflow [m3/h]
217
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
595
Maximum-Soundpower [dB(A)]
66
Energy consumption [W]
78
Control
Glass touch
Material
Stainless steel and glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
900
Maximum depth [mm]
500
Maximum height [mm]
1045
Vent pipe width (mm)
305
Vent pipe max height (mm)
965
Vent pipe min height (mm)
470
Minimum length vent pipe cutdown [mm]
350
Outlet dimension (mm)
Ø150
Packaging width(mm)
480
Packaging depth [mm]
955
Packaging height(mm)
570
Net weight [kg]
19.5
Weight
23

Features

Control
Glass touch
Decor light
No
Moveable outlet
No
Built-in trigger function
No
Wi-Fi
No
Toplink compatible
No

Technical specifications

Illumination (Emiddle) [lux]
180
LE value [lux/W]
39.9
LE-class
A
EEI-value
43.9
EEI-class
A+
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
4.5
GFE-value
94.3
GFE-class
B
FDE-value
28.2
FDE-class
A
AEC [kWh/h]
16.6
Energy consumption [W]
78
Energiforbrug standby (Ps) [W]
0.48
Odour extraction test standard
Motor Power [W]
75
Voltage [V]
230

Other specifications

EAN
5703347534539
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.21.8300.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Suction Bottom
No
Suction Front
No
Suction Edge
No
Longer vent pipe available
No
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
BodyColor
Stainless steel
Front panel material
Material
Stainless steel and glass
SupplyCord (m)
1.2

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info
