Point Cyclone 83 cm

525.46.3082.2

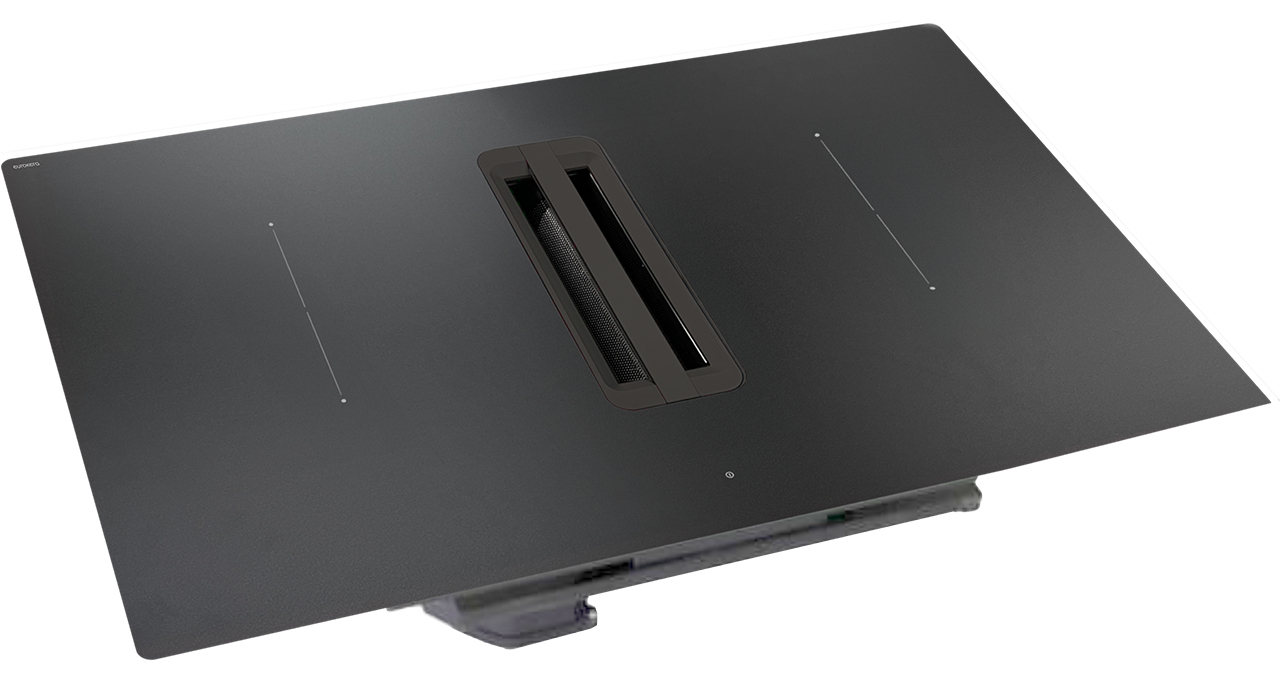

Point Cyclone is a compact induction hob with integrated extractor hood. It has a sophisticated design with matte glass and double bridge function. The advanced filter system ensures efficient filtration, making the cooker hood easy to clean.

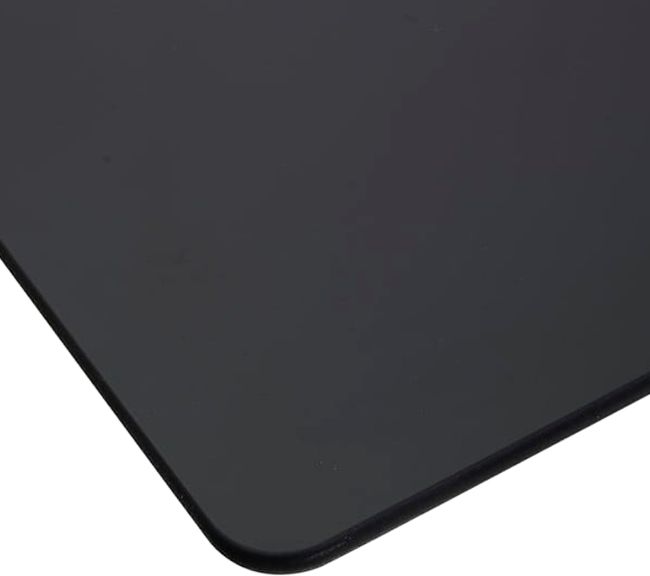

Point Cyclone is an elegant induction hob with integrated extractor hood. The hob is equipped with a matte glass top, which differs from the traditional glossy hobs. This gives an incredibly exclusive look, but in addition, another advantage is that the glass is much less susceptible to scratches compared to regular hobs.

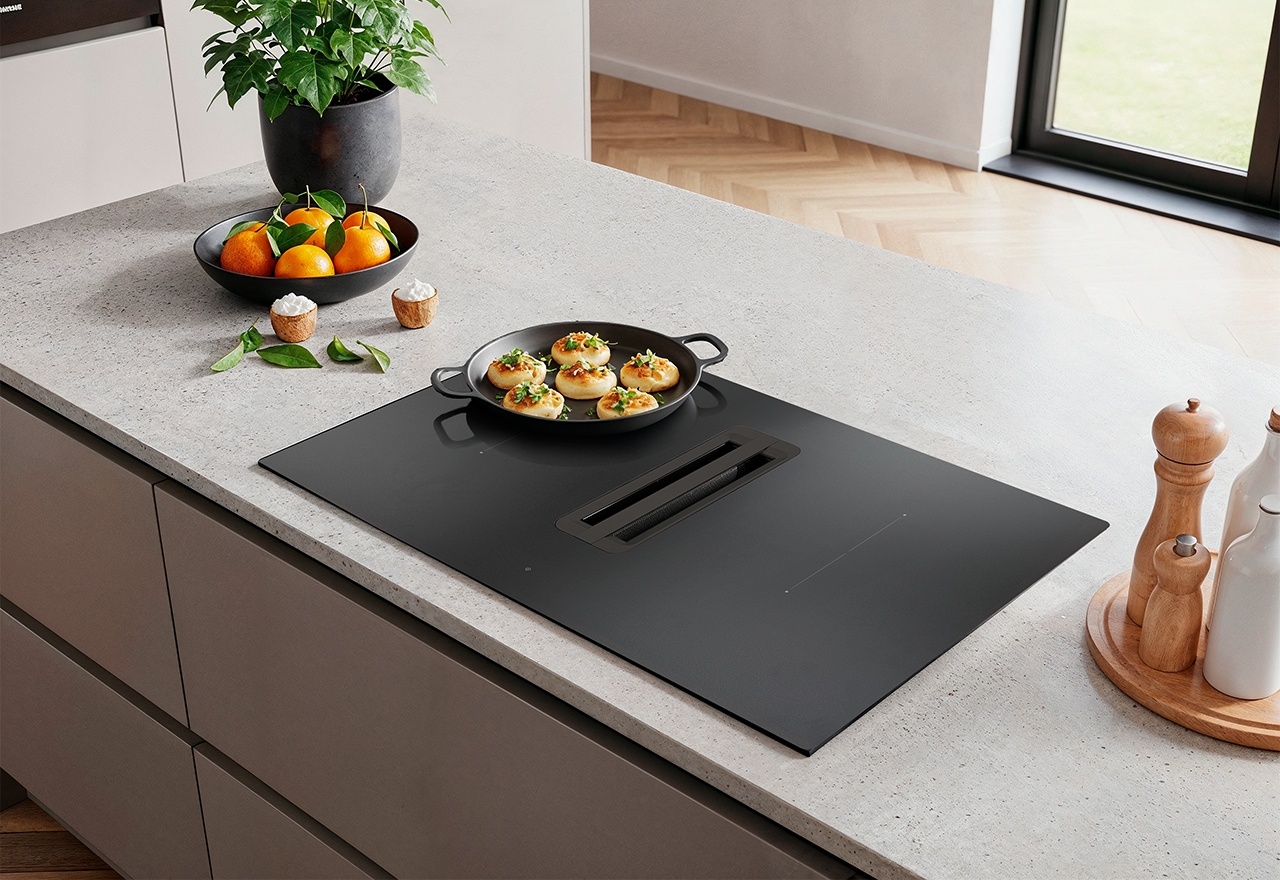

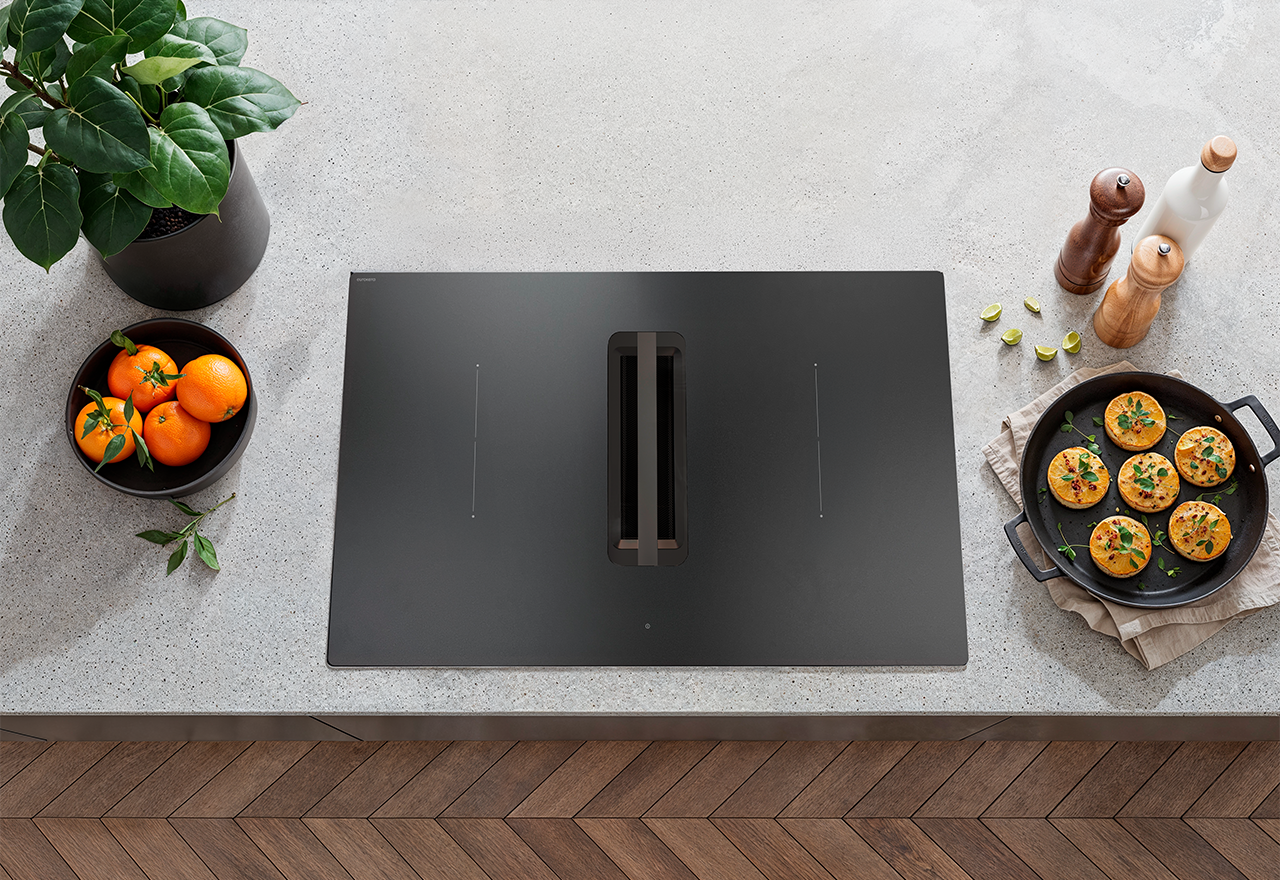

The minimalist design of the hob makes it a perfect match for any kitchen décor. The primary advantage of an integrated cooker hood is that there is no need for a traditional cooker hood hanging over the hob, which is especially advantageous for kitchen islands.

Despite the integrated extractor motor, the hob takes up minimal space in the kitchen cabinet. With a height of only 23 cm, there is ample space for drawers or extra storage under the Point Cyclone.

Operation:

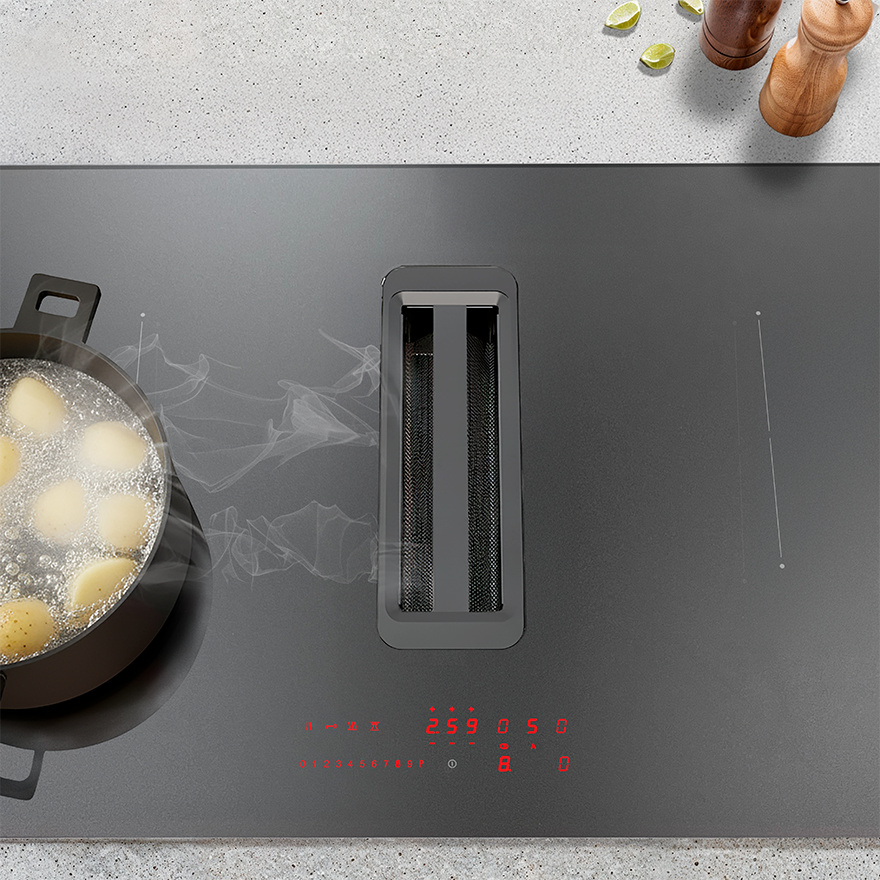

The hob operation is intuitive and straightforward, allowing both the hob and the cooker hood to be controlled with the same sliding glass touch control. The controls glow red when activated, ensuring easy operation.

Features:

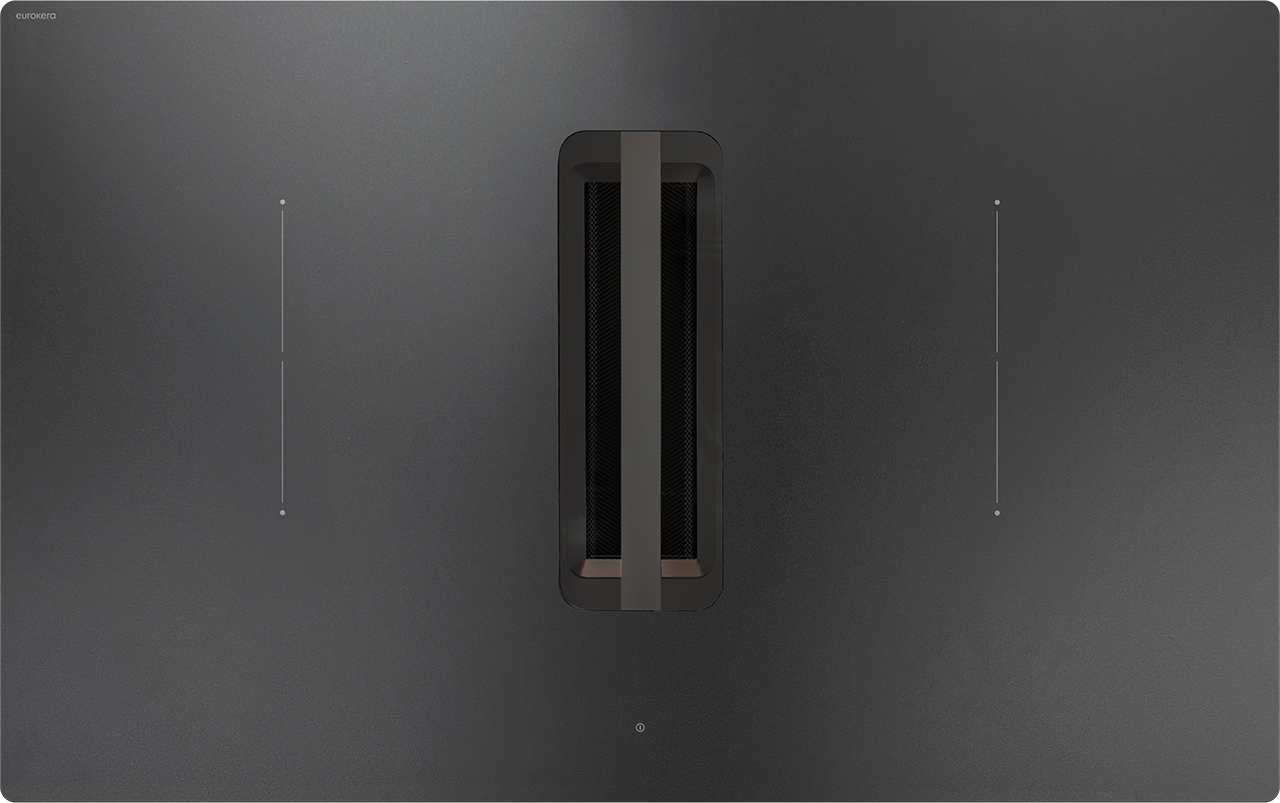

Point Cyclone has many handy features that enhance your cooking experience. It has four large square zones equipped with a double bridge function, which allows zones to be combined for larger pots and pans. Each hob measures 210x190 mm, and when combined, they form a zone of 210x390 mm, which can be done on both sides if needed.

The hood, which is seamlessly integrated into the centre of the Point Cyclone, has a powerful and compact low-energy motor. It offers up to 600 m³/h at boost level, effectively removing cooking odours before they spread. The brushless motor operates at a very low noise level of 44 dB(A) and has an A++ energy efficiency class, making it environmentally friendly and cost-effective.

Innovative filter system:

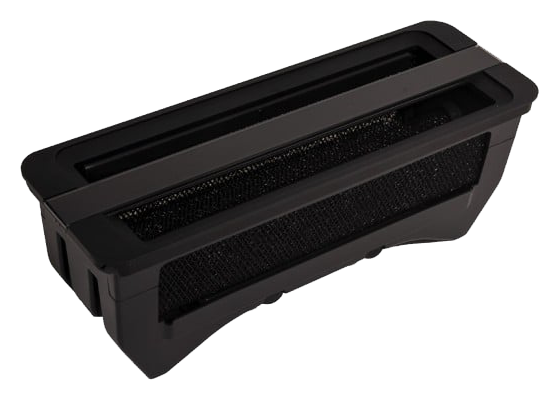

Achieves over 93% grease filtration efficiency, resulting in a grease filtration class B. The filter design maximizes surface area for efficient airflow and durability, and is dishwasher safe for easy cleaning. It has a proven absorption capacity of over 75%.

Water Tank:
An integrated 0.3-litre water tank ensures safety and easy maintenance in the event of a spill.

Recirculation and ventilation options:

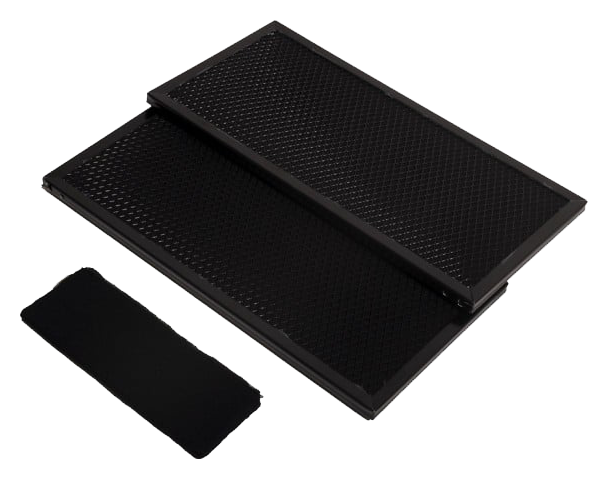

Suitable for recirculation with an easily installable filter kit or traditional ventilation out of the house. The recirculation filter kit contains three filters that achieve up to 60% odour reduction.

With its combination of advanced features and elegant design, the Point Cyclone - 83 cm induction hob with integrated extractor hood is an excellent choice for any modern kitchen.

  • Resistant matte glass for an exclusive look
  • The maximum airspeed at the intake is up to 9,9 m/s
  • Elegant hob with double bridge function and square zones
  • Innovative filtration system that effectively filters cooking odors
  • Efficient low-energy motor up to 600 m3/h

Specifications

Minimum airflow [m3/h]
210
Minimum-Soundpower [dB(A)]
44
Maximum-airflow [m3/h]
430
Maximum-Soundpower [dB(A)]
63
Airflow with boost [m3/h]
600
Soundpower boost [dB(A)]
68
Energy consumption [W]
7620
Control
Glass touch
Material
Black glass
Voltage [V]
230/400

Specifications

Minimum airflow [m3/h]
210
Minimum-Soundpower [dB(A)]
44
Maximum-airflow [m3/h]
430
Maximum-Soundpower [dB(A)]
63
Airflow with boost [m3/h]
600
Soundpower boost [dB(A)]
68
Energy consumption [W]
7620
Control
Glass touch
Material
Black glass
Voltage [V]
230/400

Weight and measurements

Maximum width [mm]
830
Maximum depth [mm]
520
Maximum height [mm]
230
Cooking zone rear-right [mm]
190x210
Cooking zone rear-left [mm]
190x210
Cooking zone front-right [mm]
190x210
Cooking zone Front-left [mm]
190x210
Installation dimensions WxD [mm]
475x750
Outlet dimension (mm)
220x90
Packaging width(mm)
1100
Packaging depth [mm]
900
Packaging height(mm)
350
Net weight [kg]
15
Weight
24

Features

Control
Glass touch
Boost funktion
Yes
Timer funktion
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
Yes
Periodic room ventilation
No
Wi-Fi
No
Bridge function
Yes
Automatic bridge function
No
Boost function
Yes
Child safety
Yes
Pot sensor
Yes
Keep warm function
Yes
Automatic boiling
Yes
Recall
No
Safety shutdown
Yes
Stop & Go
Yes
Toplink compatible
No
Smarthome
No
Timer function
Yes

Technical specifications

EEI-value
32.4
EEI-class
A++
Energy consumption in off mode (Po) [W]
0.49
GFE-value
93.8
GFE-class
B
FDE-value
37.6
FDE-class
A
AEC [kWh/h]
26.6
Energy consumption [W]
7620
Cooking area Rear-right [W]
3000
Cooking zone Rear-left [W]
3000
Cooking zone Front-right [W]
3000
Cooking zone Front-left [W]
3000
Total power of the hob [W]
7400
Type of plug
No plug
Energiforbrug standby (Ps) [W]
0.49
Motor Power [W]
220
Voltage [V]
230/400

Other specifications

EAN
5703347534881
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.46.1200.9
Number of carbonfilters
3
Number of speeds ex (boost)
8
Number of lamps
0
Mounting
Table integrated
Motor type
Internal motor
BodyColor
Black
Material
Black glass
Number of cooking zones
4
Flush mounting
Yes
