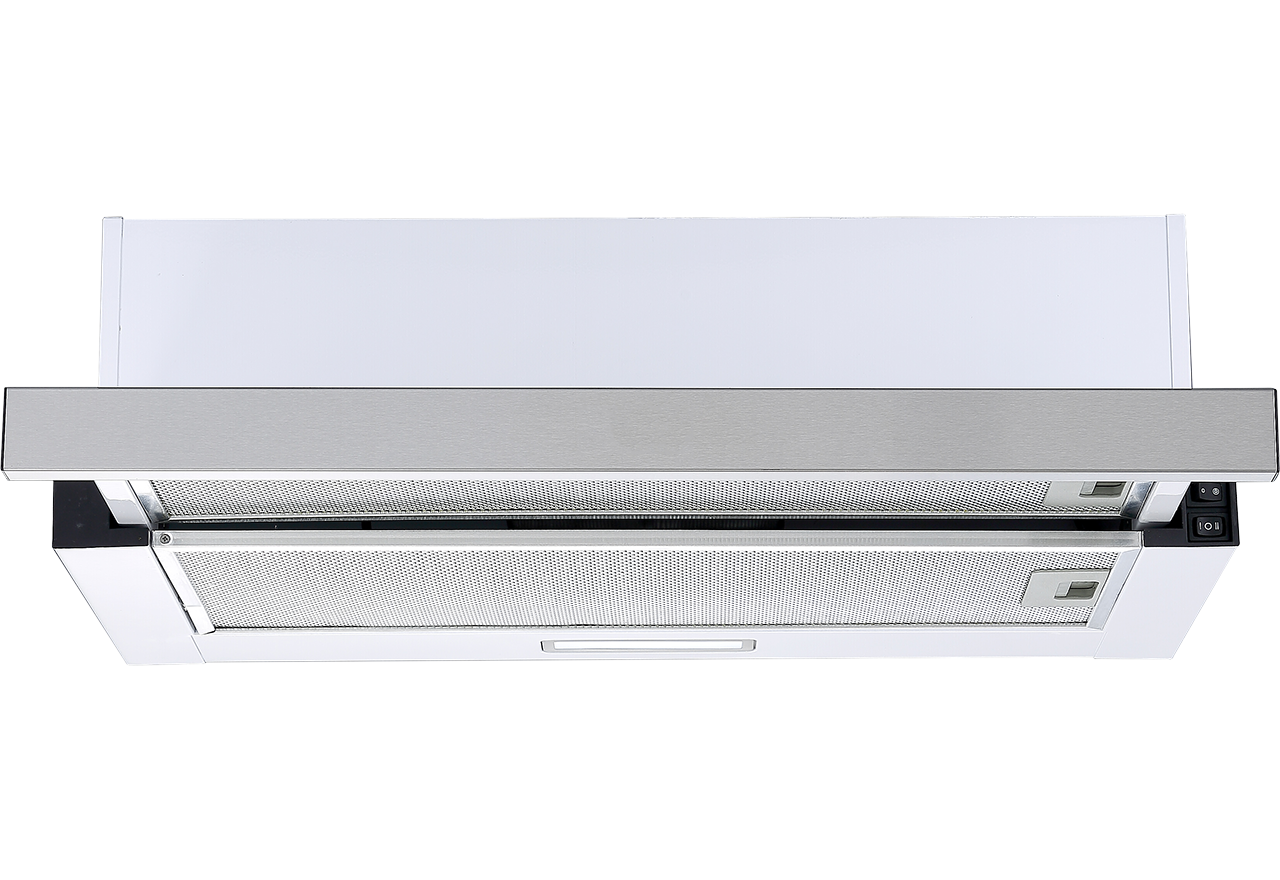

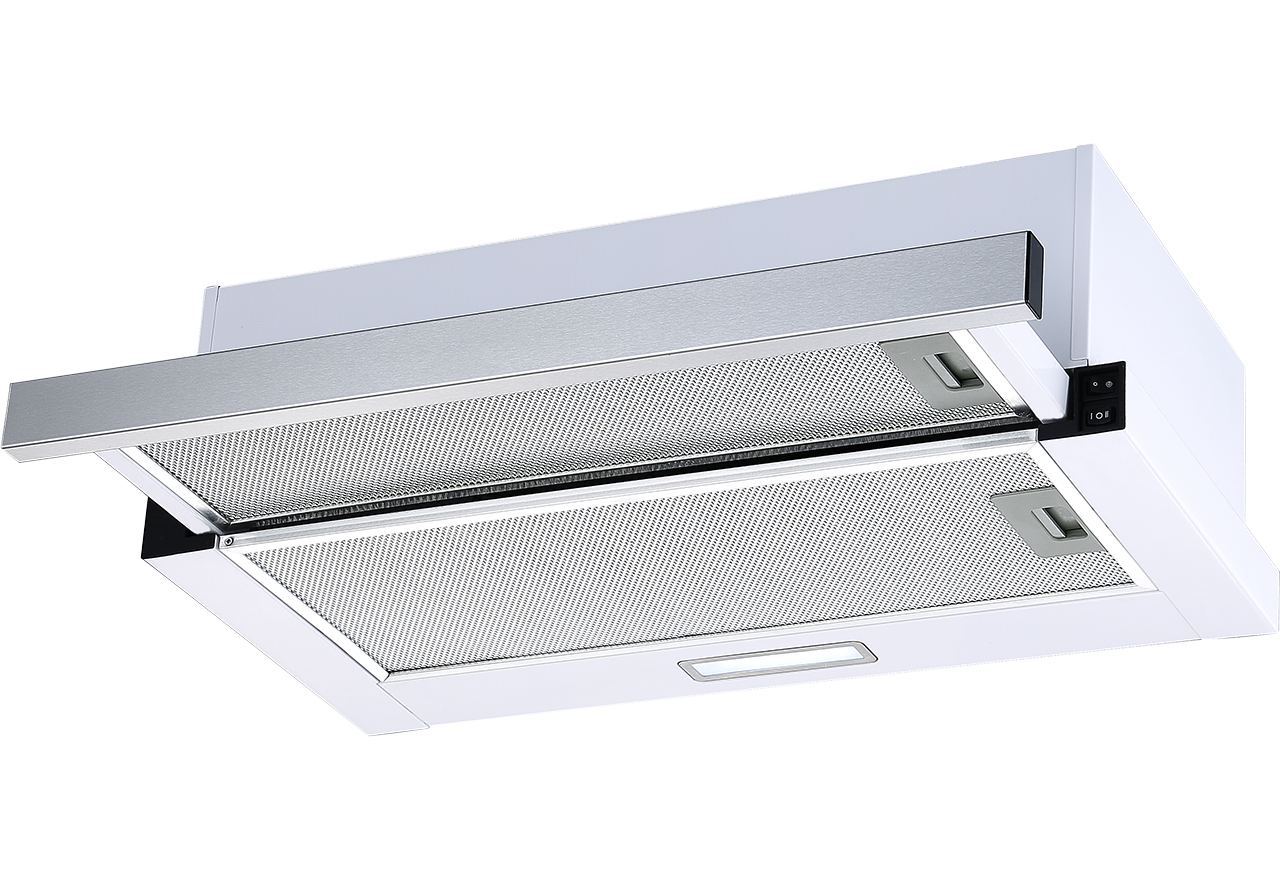

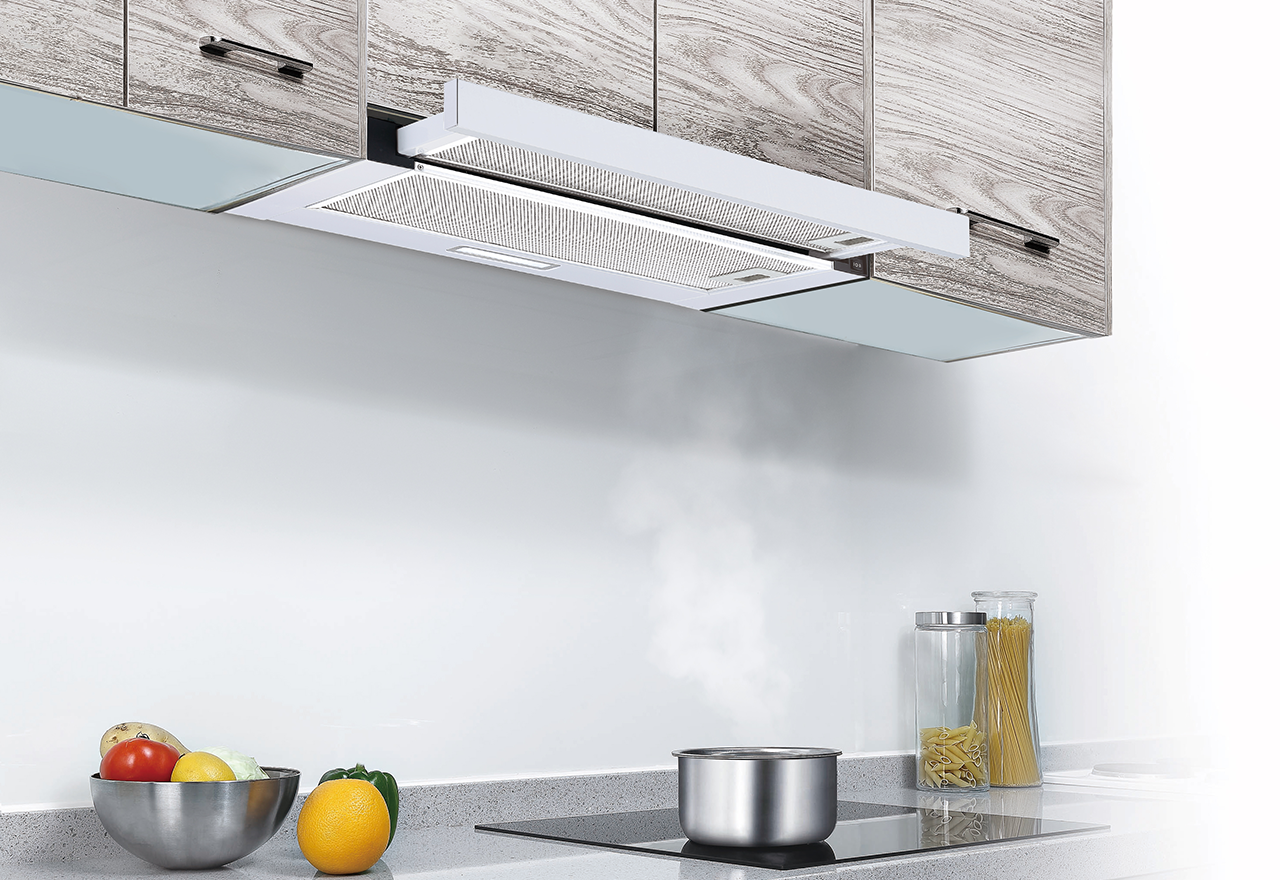

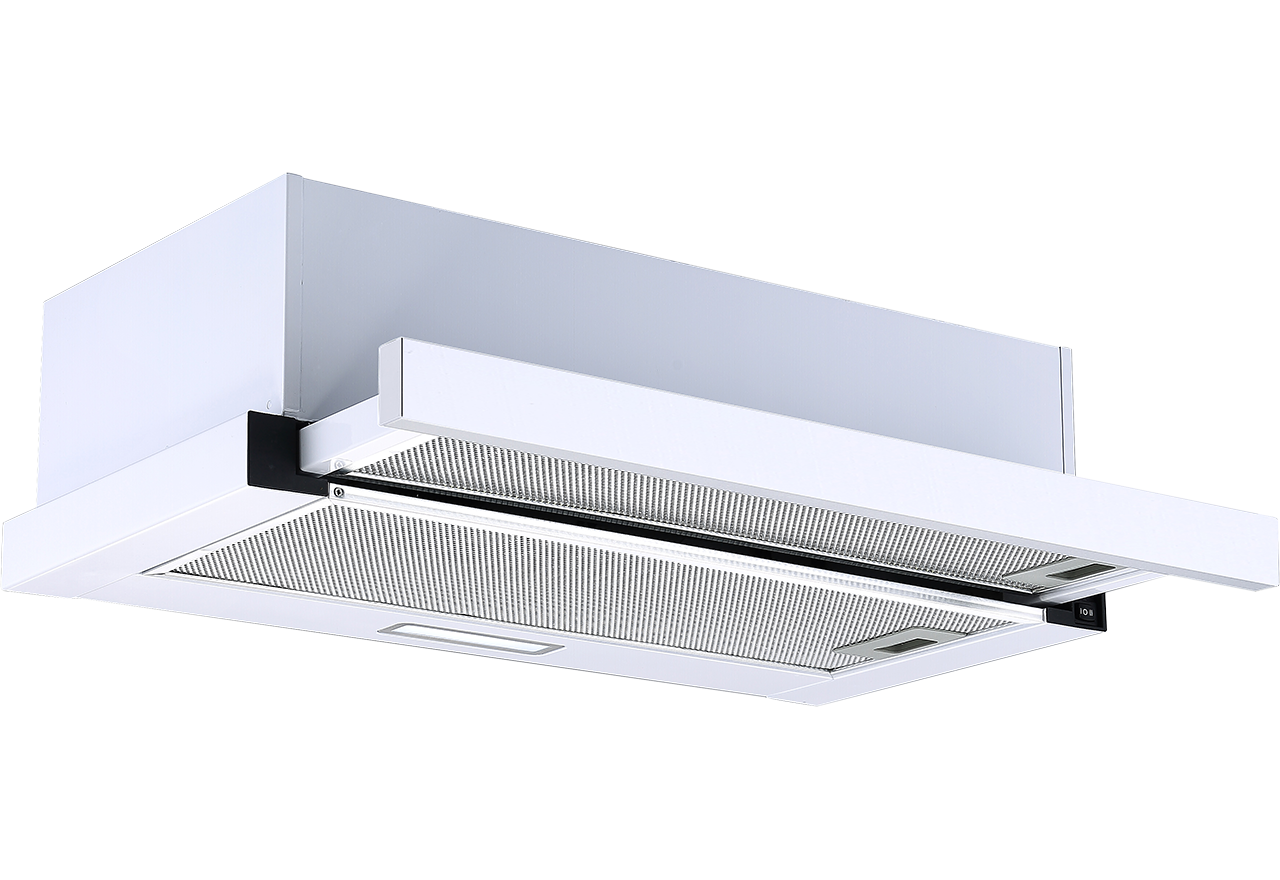

Stripe 20 - telescopic - 60 cm, incl. carbonfilter
520.21.5001.2
Stripe 20 by Thermex is a stylish extractor hood with white lacquered steel construction, LED lighting, and interchangeable front. With two speeds and low noise levels, it's both efficient and discreet in any kitchen.
Stripe 20 by Thermex is an extractor hood with an internal motor, providing efficient ventilation without taking up much space. Made of white painted steel, it offers a sleek, modern appearance suitable for most kitchens. Equipped with two aluminum filters and LED lighting, ensuring optimal illumination and air filtration. Stripe 20 is delivered with carbon filters making it ready for recirculation.
Its changeable front allows customization to fit any kitchen decor. The hood comes with a white front panel installed, and a stainless steel front panel is included.
Cleaning is effortless with a damp cloth, and filters are dishwasher-safe.
Operated by intuitive toggle buttons, offering two-speed settings and light control.
Featuring a built-in ECO motor with low energy consumption and an A energy rating, it's environmentally friendly and economical.
With a powerful airflow of up to 320 m3/h and low noise levels starting from 45 dB(A), it ensures effective ventilation with minimal noise.
- Practical extractor hood with carbon filter
- Powerful motor with airflow up to 320 m3/h
- Low noise level from 45 dB(A)
- Changeable front panel for seamless integration
- Low energy consumption with DC motor and A energy rating
Specifications
Minimum airflow [m3/h]
164
Minimum-Soundpower [dB(A)]
45
Maximum-airflow [m3/h]
319
Maximum-Soundpower [dB(A)]
63
Energy consumption [W]
35
Control
Switch control
Material
White painted steel
Voltage [V]
230
Specifications
Minimum airflow [m3/h]
164
Minimum-Soundpower [dB(A)]
45
Maximum-airflow [m3/h]
319
Maximum-Soundpower [dB(A)]
63
Energy consumption [W]
35
Control
Switch control
Material
White painted steel
Voltage [V]
230
Weight and measurements
Maximum width [mm]
600
Maximum depth [mm]
430
Maximum height [mm]
230
Outlet dimension (mm)
Ø150
Packaging width(mm)
655
Packaging depth [mm]
240
Packaging height(mm)
355
Net weight [kg]
5.5
Weight
6.5
Features
Control
Switch control
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
Illumination (Emiddle) [lux]
89
LE value [lux/W]
44.7
LE-class
A
EEI-value
47.1
EEI-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
2
GFE-value
45.9
GFE-class
F
FDE-value
18.1
FDE-class
C
Energy consumption [W]
35
Energiforbrug standby (Ps) [W]
0.48
Odour extraction test standard
Motor Power [W]
33
Voltage [V]
230
Other specifications
EAN
5703347533488
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
In
Carbon filter code
535.21.7000.9
Number of carbonfilters
2
Number of speeds ex (boost)
2
Number of lamps
1
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Vent pipe modification
Mounting
Extract
Motor type
Internal motor
Front panel color
White
BodyColor
White
Front panel material
White lacquered steel
Material
White painted steel
SupplyCord (m)
1.2
Downloads
Here you will find all documents relevant to this product
