Stripe 24, 52 cm, black

520.21.5362.2

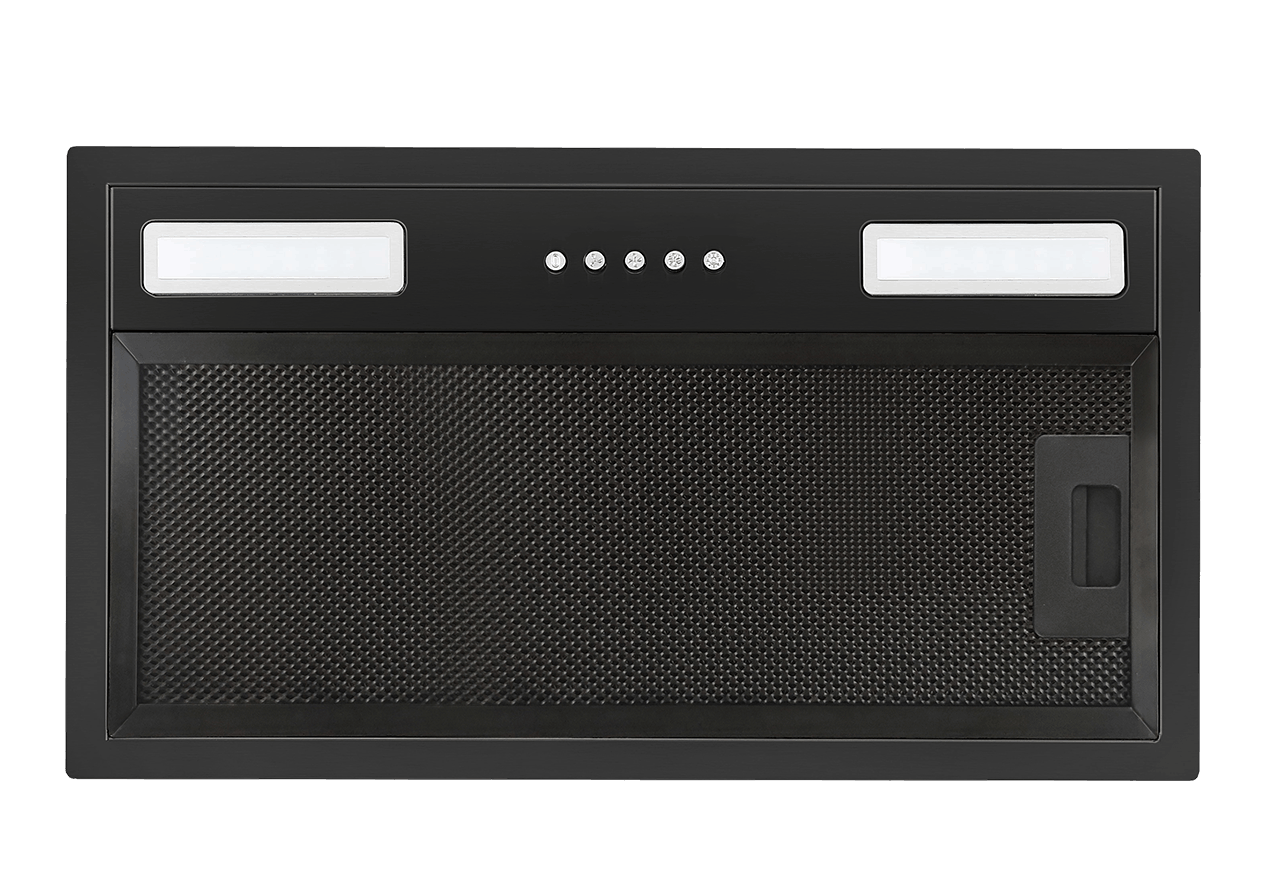

Stripe 24 is a black, cabinet-integrated cooker hood with efficient extraction, push buttons, LED lighting and an included carbon filter set for flexible use with extraction or recirculation.
Stripe 24 is a black, cabinet-integrated cooker hood with compact installation, efficient extraction and an included carbon filter set, allowing it to be used for both extraction and recirculation.

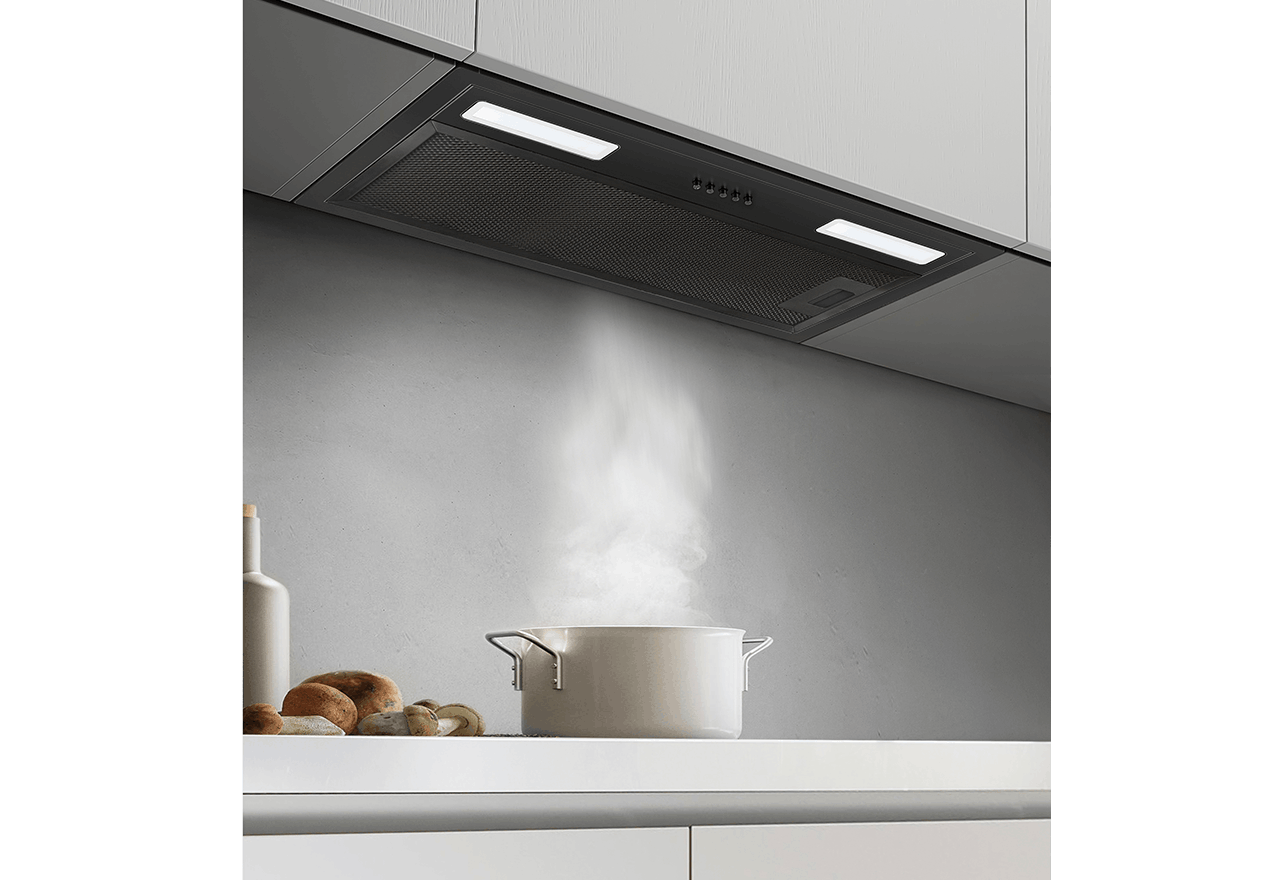

The hood is designed for discreet installation in an upper cabinet and combines a simple black design with practical controls, good lighting and efficient removal of cooking fumes and steam in the modern kitchen.

Design and functionality
Stripe 24 is made from black lacquered steel and integrates elegantly into the upper cabinet, making the hood a natural and discreet part of the overall kitchen design. The black finish gives it a clean and stylish look that suits both dark and light kitchen interiors.
The cabinet-integrated construction makes the hood ideal for kitchens where efficient ventilation is desired without a visible wall-mounted cooker hood.

Functions and operation
The hood has 3 speeds, making it easy to adjust the extraction to suit the cooking situation. It delivers an airflow from 206 m³/h to 387 m³/h and can therefore handle both everyday cooking and situations with more steam and fumes.
Stripe 24 has an internal motor and can be installed for extraction via a Ø150 mm duct. A carbon filter set is also included, allowing the hood to be used for recirculation, where the air is cleaned and returned to the kitchen.

Controls and lighting
The hood is operated using simple push buttons, allowing the speeds and lighting to be controlled directly from the front. This provides a simple and user-friendly solution without unnecessary functions.
The hood is equipped with 2 LED lights of 2 W each and a colour temperature of 3000 Kelvin. The lighting provides pleasant and functional work light over the hob, making cooking more convenient.

Easy cleaning
Stripe 24 is equipped with an aluminium grease filter that captures grease particles from cooking and helps protect the motor and ducting. The filter can easily be removed for cleaning.
When used for recirculation, the included carbon filters help reduce cooking odours. The carbon filters should be replaced regularly depending on use and cooking habits.

Flexible installation
The hood is installed directly in the upper cabinet and requires a cut-out of 500 x 265 mm. Its compact size makes it suitable for kitchens where space needs to be used efficiently without compromising functionality.
With the option of both extraction and recirculation, Stripe 24 provides a flexible solution for different kitchen types and installation conditions.

Specifications
Energy class: A
Airflow: 206–387 m³/h
Sound level: 49–65 dB(A)
Dimensions: 520 x 290 x 195 mm
Duct dimension: Ø150 mm
Controls: Push buttons

Stripe 24 is a discreet and functional choice for anyone looking for a black cabinet-integrated cooker hood with efficient extraction, pleasant LED lighting and a carbon filter set included.
  • Black cabinet-integrated cooker hood in a compact design
  • Supplied with carbon filter set for recirculation
  • 3 speeds with simple push button controls
  • Efficient airflow from 206 to 387 m³/h
  • 2 LED lights provide good work light over the hob

Specifications

Minimum airflow [m3/h]
206
Minimum-Soundpower [dB(A)]
49
Maximum-airflow [m3/h]
387
Maximum-Soundpower [dB(A)]
65
Control
Push buttons
Material
Black painted steel
Energy consumption [W]
54
Voltage [V]
230

Specifications

Minimum airflow [m3/h]
206
Minimum-Soundpower [dB(A)]
49
Maximum-airflow [m3/h]
387
Maximum-Soundpower [dB(A)]
65
Control
Push buttons
Material
Black painted steel
Energy consumption [W]
54
Voltage [V]
230

Weight and measurements

Maximum width [mm]
520
Maximum depth [mm]
290
Maximum height [mm]
195
Outlet dimension (mm)
Ø150
Packaging width(mm)
580
Packaging depth [mm]
265
Packaging height(mm)
345
Net weight [kg]
4.8
Weight
5.8

Features

Control
Push buttons
Boost funktion
No
Decor light
No
Timer funktion
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

LE value [lux/W]
54
LE-class
A
EEI-value
54.9
EEI-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
GFE-value
75.1
GFE-class
C
FDE-value
19.2
FDE-class
C
AEC [kWh/h]
20.9
Energy consumption [W]
54
Motor Power [W]
50
Voltage [V]
230

Other specifications

EAN
5703347535376
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
In
Carbon filter code
535.21.7000.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Edge
No
Mounting
Cabinet integrated
Motor type
Internal motor
BodyColor
Black
Material
Black painted steel
SupplyCord (m)
1.2

Downloads

Here you will find all documents relevant to this product

Product info

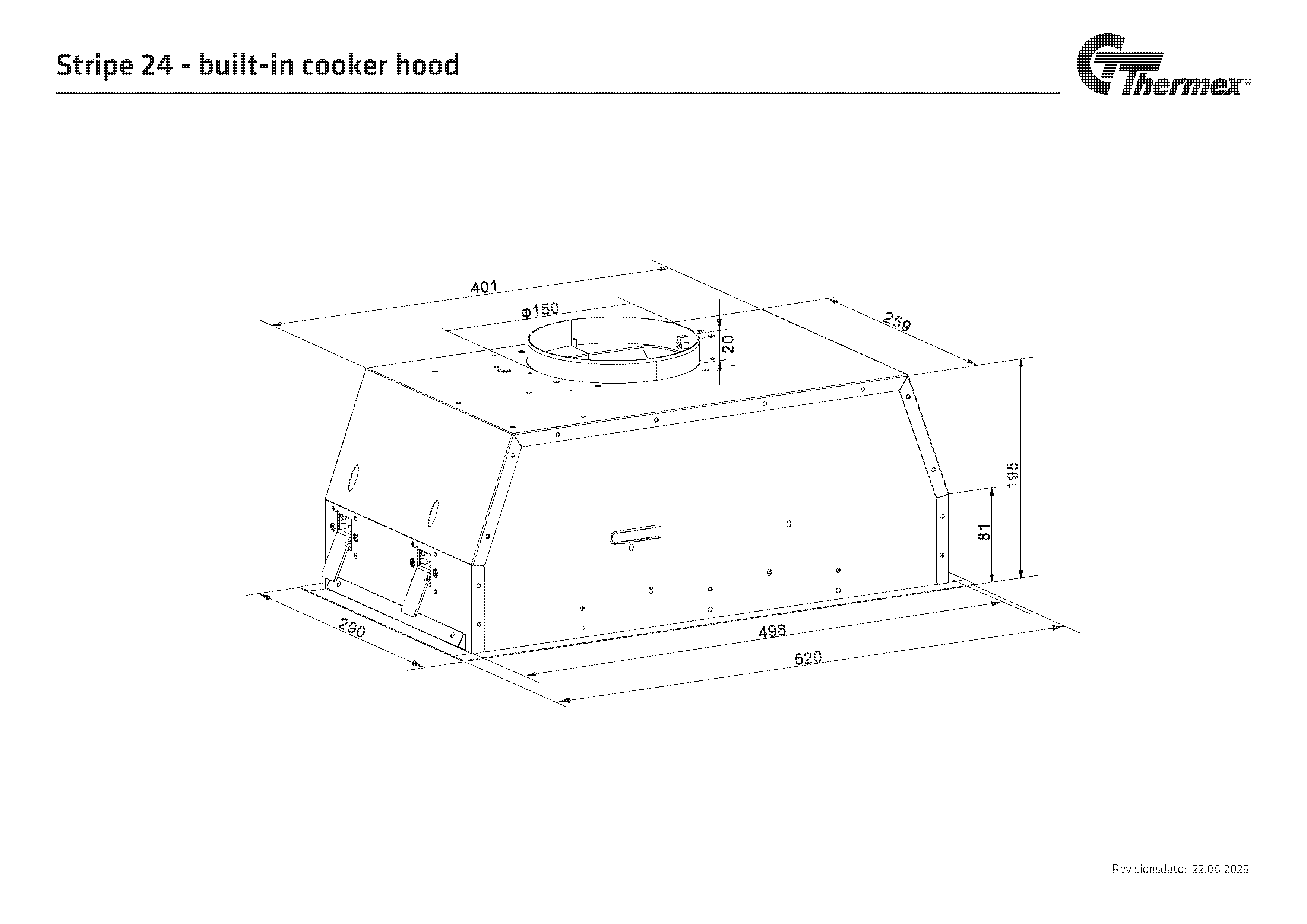

Dimensional drawing
