Stripe 30 - box model - 60 cm, incl. carbonfilter
520.21.5101.2

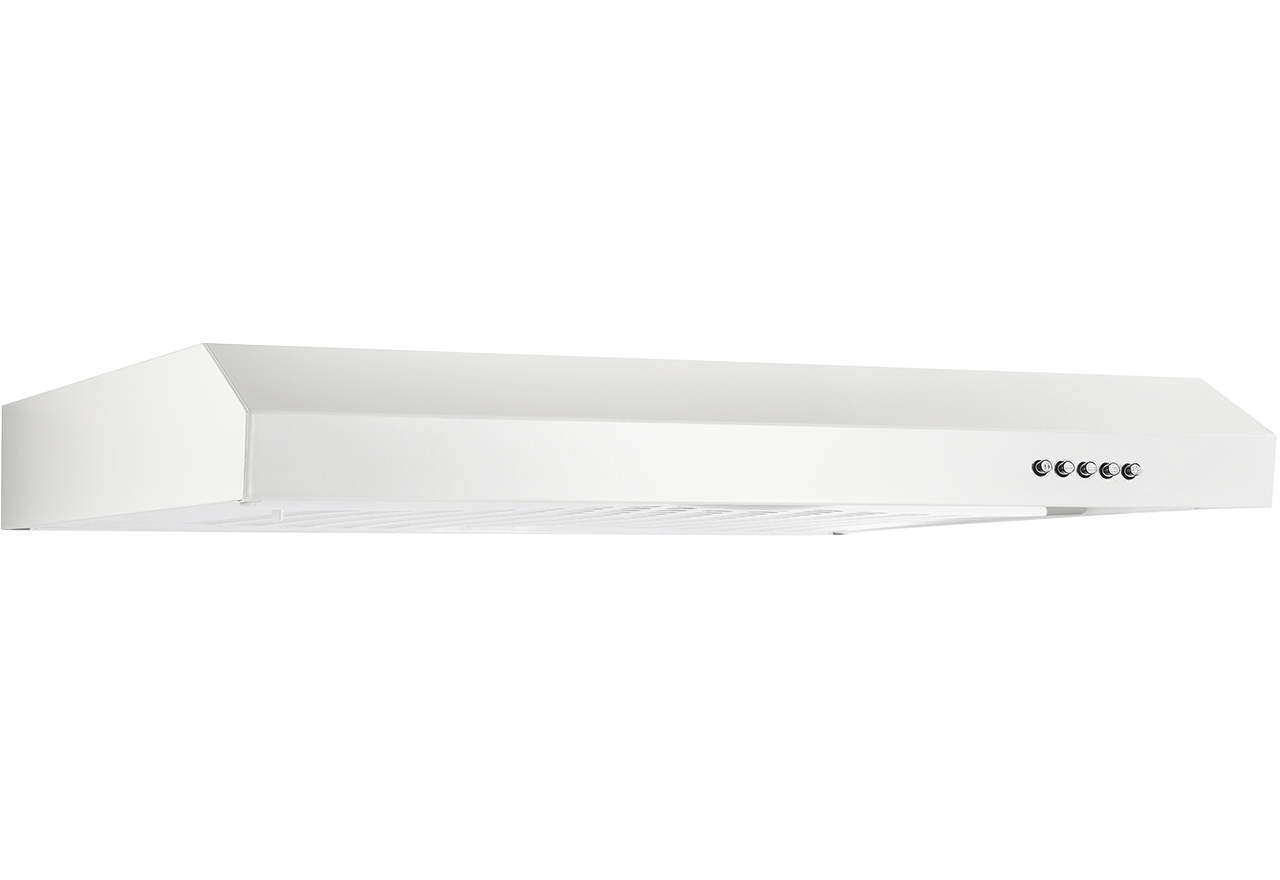

Stripe 30 by Thermex is a stylish built-in hood in white painted steel with LED lighting and a width of 60 cm. Easy operation with three speeds and low noise level from 54 dB(A), ideal for any kitchen.
Stripe 30 by Thermex is a reliable classic built-in hood with an efficient carbon filter. Made of white painted steel, it boasts a timeless and elegant appearance that seamlessly integrates into any kitchen environment. Designed to be mounted beneath a cabinet, it has a width of 60 cm, suitable for most standard kitchens.
The LED light in Stripe 30 is positioned at the front of the hood, ensuring optimal illumination of the hob, enhancing cooking comfort and safety, especially in poorly lit kitchens.
Maintenance is easy with this hood. You can simply wipe it down with a damp cloth to remove dust and dirt, and the grease filter can be easily removed and cleaned as needed.
The control of Stripe 30 is as straightforward as its design. With intuitive push buttons, you can easily adjust the suction power in three different speeds and control the light to create the perfect atmosphere in your kitchen.
Equipped with a built-in motor with low energy consumption and an impressive energy rating of A, Stripe 30 is not only efficient but also environmentally friendly and economical. It has a maximum suction power of up to 212 m3/h, ensuring effective air purification, while its noise level starts from 54 dB(A) ensures a pleasant and quiet cooking experience.
- Classic built-in hood with carbon filter
- Built-in motor with airflow up to 212 m3/h
- Noise level from 54 dB(A)
- LED light positioned at the front of the hood for optimal illumination of the hob
- Simple operation and easy cleaning
Specifications
Minimum airflow [m3/h]
102
Minimum-Soundpower [dB(A)]
54
Maximum-airflow [m3/h]
212
Maximum-Soundpower [dB(A)]
72
Energy consumption [W]
87
Control
Push buttons
Material
White painted steel
Voltage [V]
230
Specifications
Minimum airflow [m3/h]
102
Minimum-Soundpower [dB(A)]
54
Maximum-airflow [m3/h]
212
Maximum-Soundpower [dB(A)]
72
Energy consumption [W]
87
Control
Push buttons
Material
White painted steel
Voltage [V]
230
Weight and measurements
Maximum width [mm]
600
Maximum depth [mm]
465
Maximum height [mm]
108
Outlet dimension (mm)
Ø120
Packaging width(mm)
645
Packaging depth [mm]
125
Packaging height(mm)
545
Net weight [kg]
4.1
Weight
4.6
Features
Control
Push buttons
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
Illumination (Emiddle) [lux]
189
LE value [lux/W]
90
LE-class
A
EEI-value
81.8
EEI-class
C
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
2
GFE-value
75.6
GFE-class
C
FDE-value
8.1
FDE-class
E
Energy consumption [W]
87
Energiforbrug standby (Ps) [W]
0.48
Odour extraction test standard
Motor Power [W]
85
Voltage [V]
230
Other specifications
EAN
5703347533495
Type of grease filter
Polyester filter
Number of filters
1
Carbon filter as accessory
In
Carbon filter code
535.21.8330.9
Number of carbonfilters
1
Number of speeds ex (boost)
3
Number of lamps
1
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Vent pipe modification
Mounting
Cabinet substantiated
Motor type
Internal motor
Front panel color
BodyColor
White
Front panel material
Material
White painted steel
SupplyCord (m)
1.2
Downloads
Here you will find all documents relevant to this product
