Thermex TX 60-30 Built in
520.42.5960.2
Specifications
Minimum airflow [m3/h]
198
Minimum-Soundpower [dB(A)]
40
Maximum-airflow [m3/h]
379
Maximum-Soundpower [dB(A)]
60

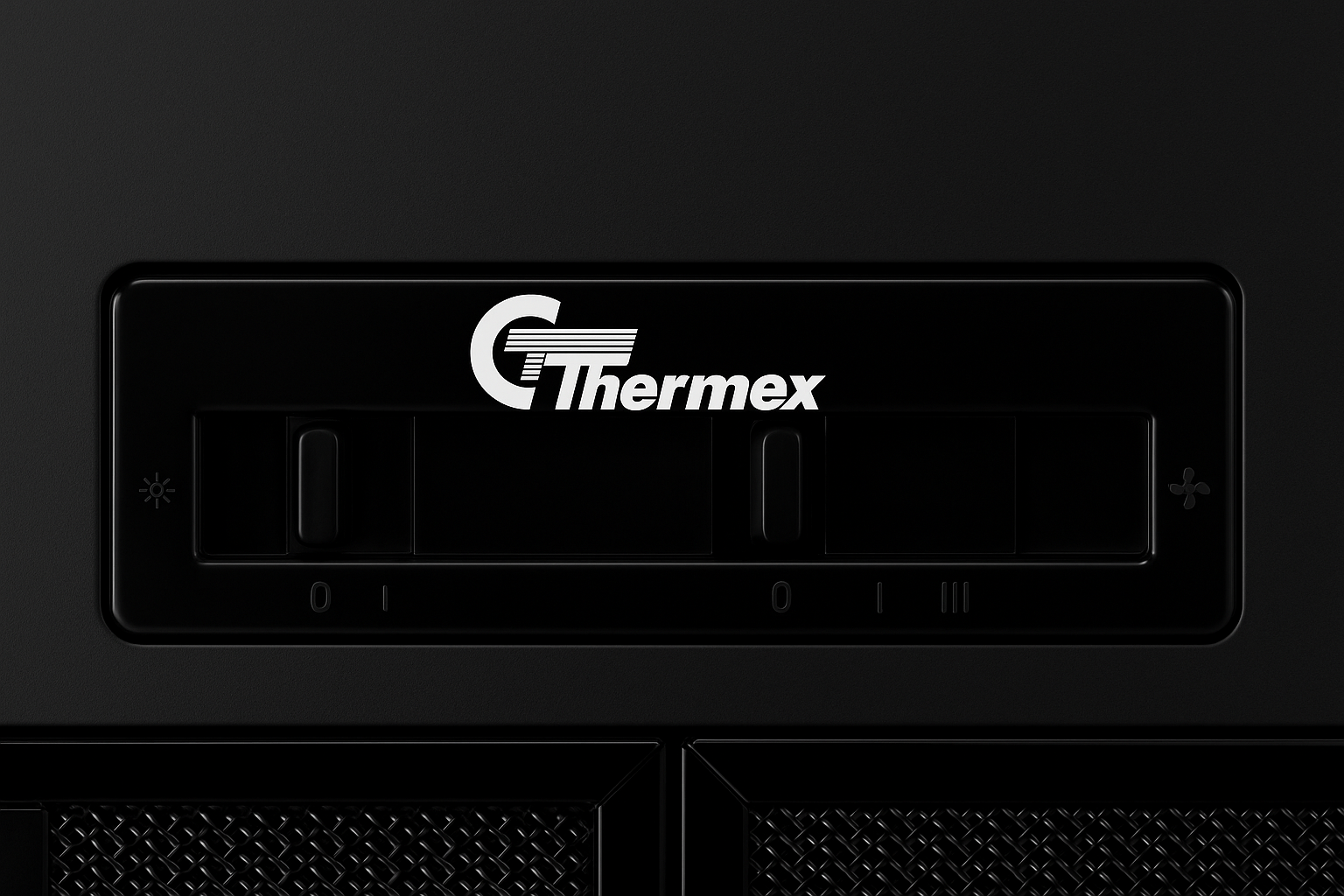

Control
Slide buttons
Material
Black painted steel
Voltage [V]
230
Weight and measurements
Maximum width [mm]
528
Maximum depth [mm]
280
Maximum height [mm]
210
Outlet dimension (mm)
Ø150
Packaging width(mm)
565
Packaging depth [mm]
261
Packaging height(mm)
360
Net weight [kg]
4.4
Weight
5.4
Features
Control
Slide buttons
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
Illumination (Emiddle) [lux]
92
LE value [lux/W]
18
LE-class
C
EEI-value
89
EEI-class
D
Colour temperature [Kelvin]
0
Lamp consumption [W]
2.5
Total consumption of light (WL) [W]
5
GFE-value
68
GFE-class
D
FDE-value
9.1
FDE-class
E
Odour extraction test standard
Motor Power [W]
150
Voltage [V]
230
Other specifications
EAN
5703347533181
Type of grease filter
Metal filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.42.9160.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Cabinet integrated
Motor type
Internal motor
BodyColor
Black
Material
Black painted steel
