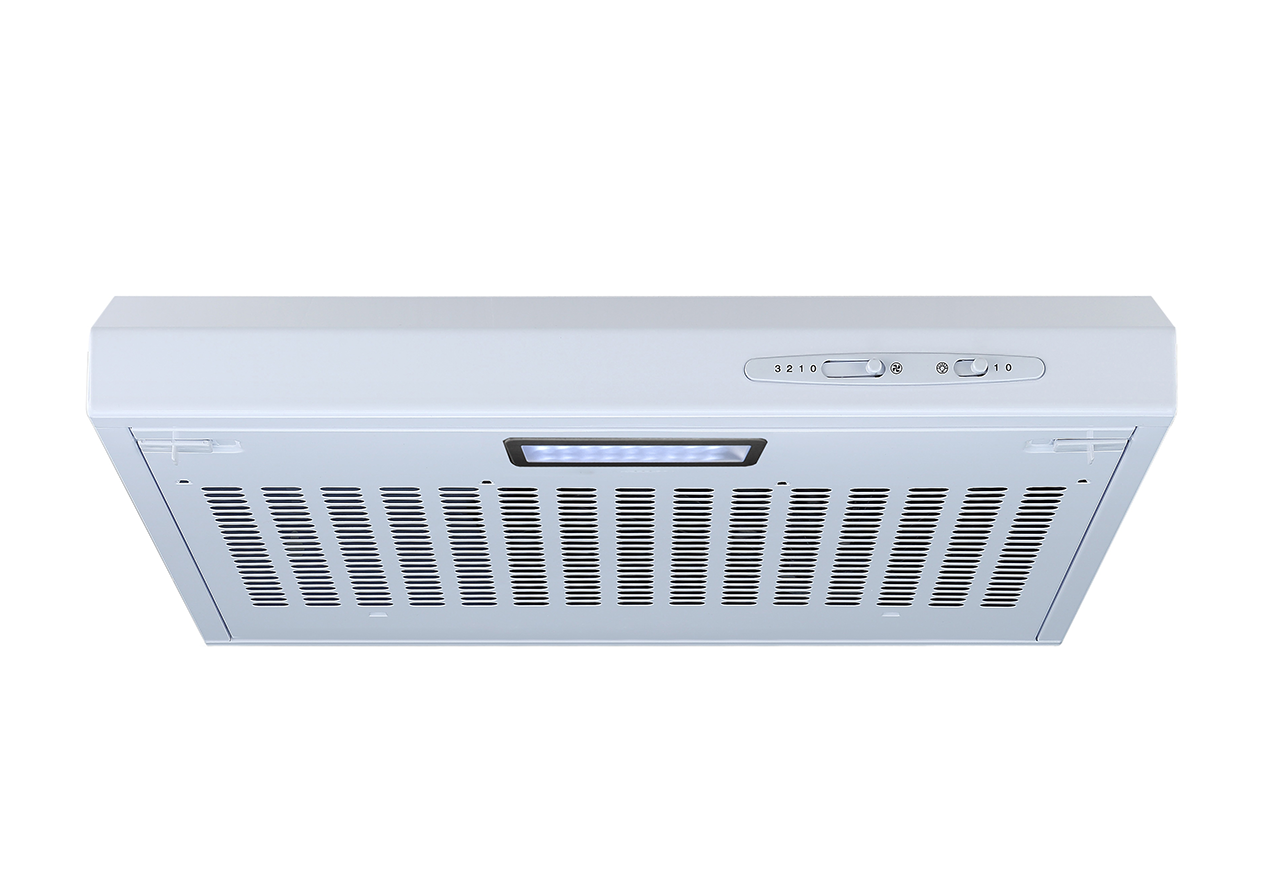

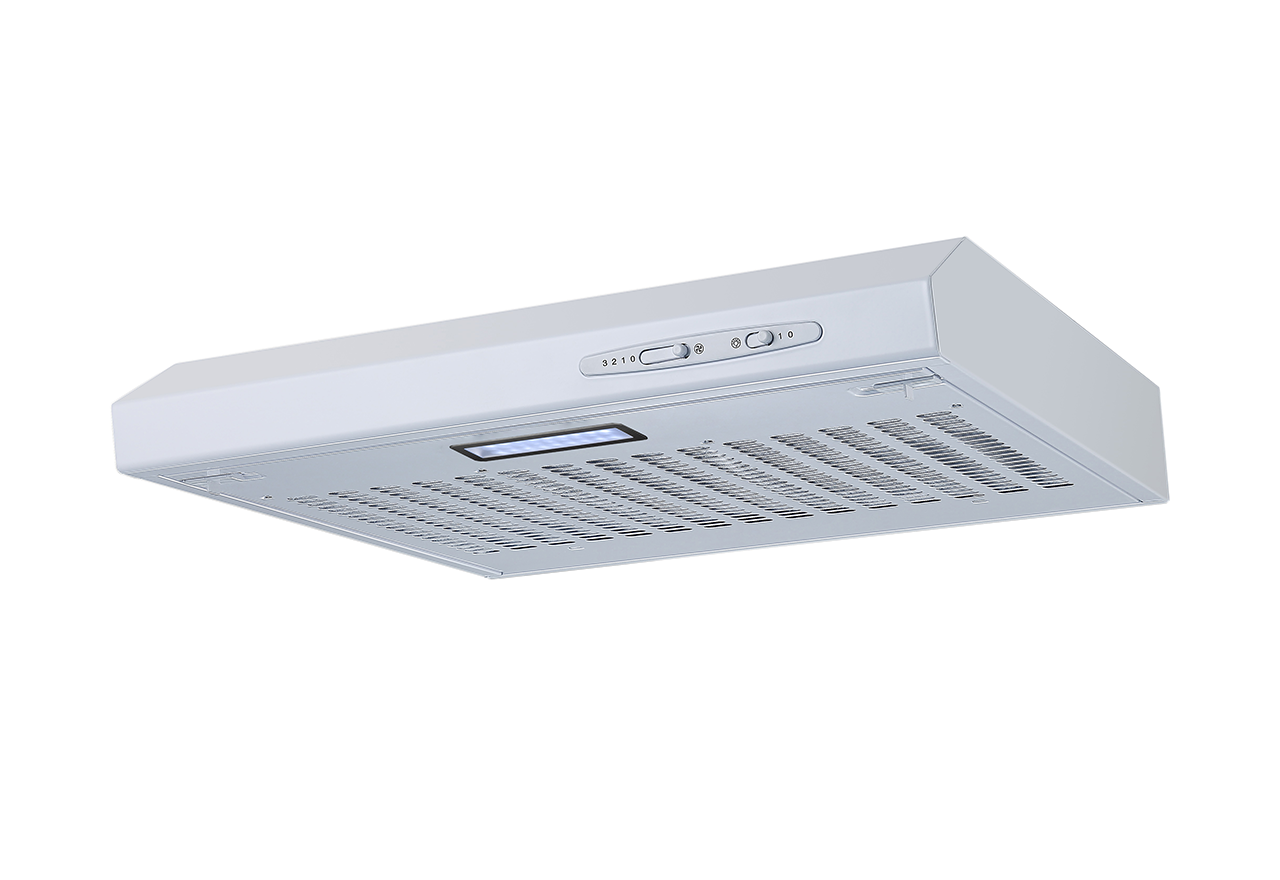

Trend model 10
520.21.2001.2
Specifications
Minimum airflow [m3/h]
102.6
Minimum-Soundpower [dB(A)]
54
Maximum-airflow [m3/h]
212.7
Maximum-Soundpower [dB(A)]
72
Energy consumption [W]
69.8
Control
Slide buttons
Material
White painted steel
Weight and measurements
Maximum width [mm]
600
Maximum depth [mm]
465
Maximum height [mm]
80
Outlet dimension (mm)
Ø120
Packaging width(mm)
125
Packaging depth [mm]
645
Packaging height(mm)
520
Net weight [kg]
5
Weight
6
Features
Control
Slide buttons
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
Illumination (Emiddle) [lux]
189
LE value [lux/W]
90
LE-class
G
EEI-value
81.8
EEI-class
C
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
2.1
GFE-value
75.6
GFE-class
C
FDE-value
8.1
FDE-class
E
Energy consumption [W]
69.8
Power supply [V]
230
Odour extraction test standard
Other specifications
EAN
5703347533068
Type of grease filter
Polyester filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.21.8330.9
Number of carbonfilters
1
Number of speeds ex (boost)
3
Number of lamps
1
Suction Bottom
No
Suction Front
No
Suction Edge
No
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
BodyColor
White
BodyColor (RAL)
0
Material
White painted steel
SupplyCord (m)
1.2
