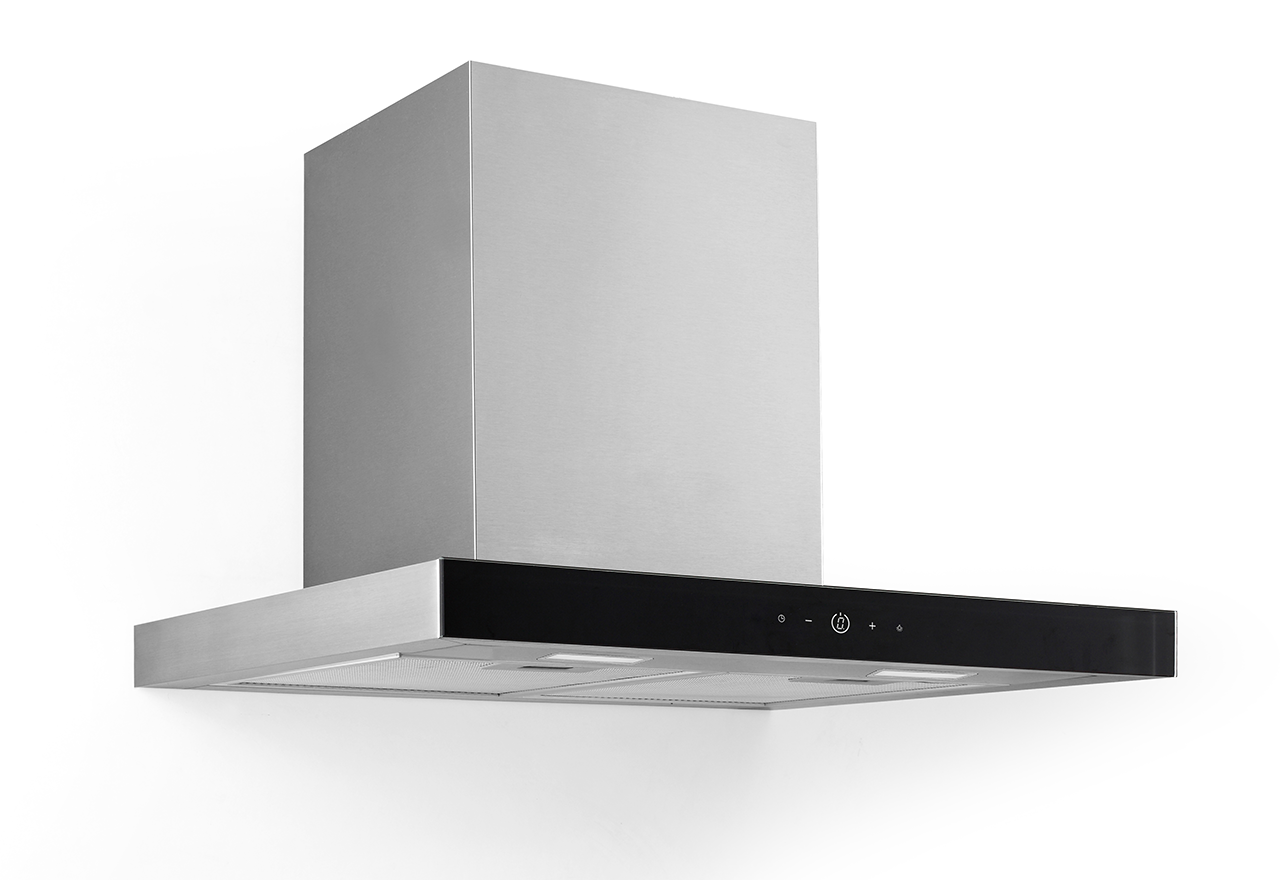

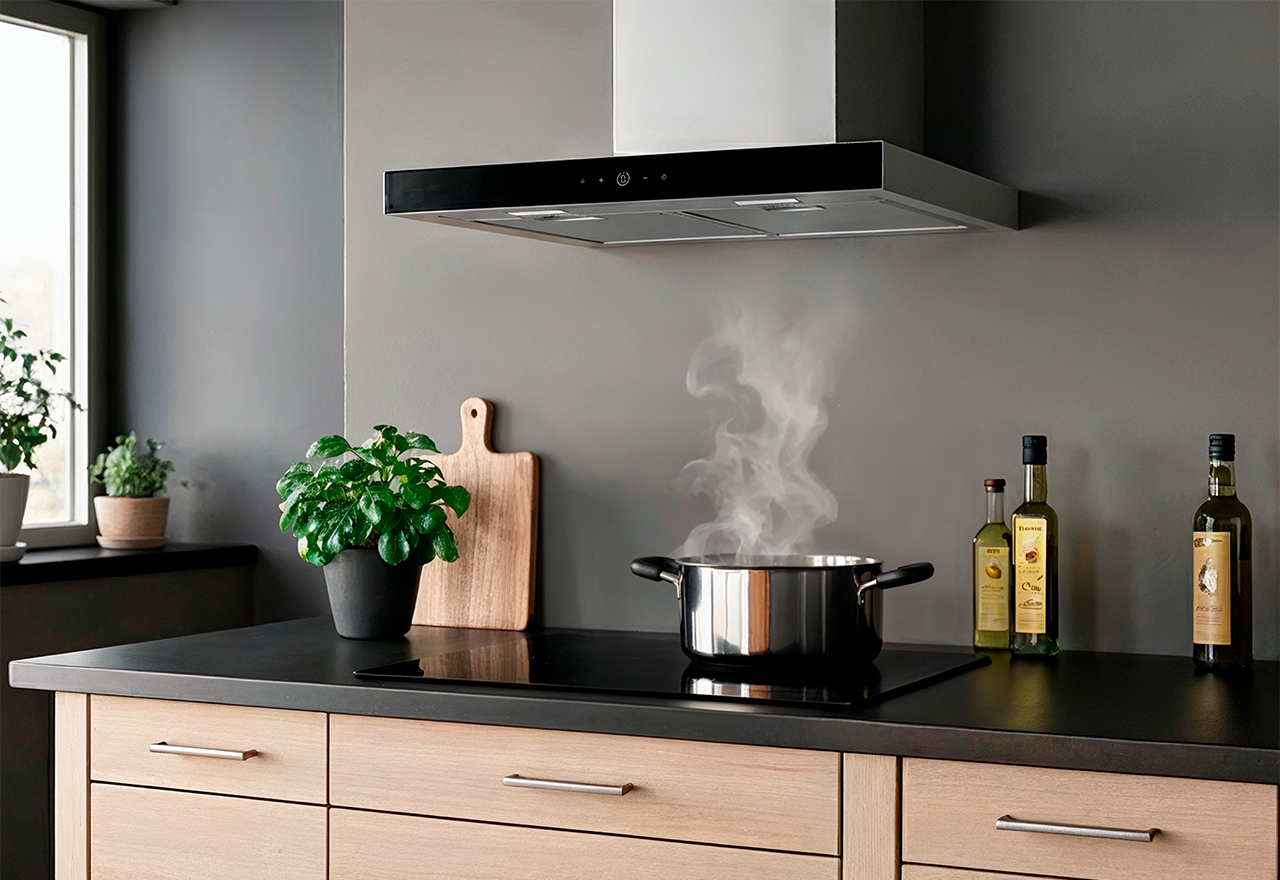

Trend model 90

527.21.2042.2

Specifications

Minimum airflow [m3/h]
196.8
Minimum-Soundpower [dB(A)]
40
Maximum-airflow [m3/h]
595.1
Maximum-Soundpower [dB(A)]
68
Energy consumption [W]
47.4
Control
Glass touch
Material
Stainless steel and Black glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
505
Maximum height [mm]
1030
Vent pipe width (mm)
303
Vent pipe max height (mm)
980
Vent pipe min height (mm)
400
Minimum length vent pipe cutdown [mm]
350
Outlet dimension (mm)
Ø150
Packaging width(mm)
390
Packaging depth [mm]
660
Packaging height(mm)
570
Net weight [kg]
12
Weight
13

Features

Control
Glass touch
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
172
LE value [lux/W]
47.8
LE-class
A
EEI-value
42.4
EEI-class
A+
Colour temperature [Kelvin]
3000
Lamp consumption [W]
3
Total consumption of light (WL) [W]
3.6
GFE-value
78.5
GFE-class
C
FDE-value
29.3
FDE-class
A
Energy consumption [W]
47.4
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.48
Odour extraction test standard
Voltage [V]
230

Other specifications

EAN
5703347533105
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.21.8600.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
No
Suction Front
No
Suction Edge
No
Longer vent pipe available
No
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Stainless steel
Front panel material
Black glass
Material
Stainless steel and Black glass
SupplyCord (m)
1.2
