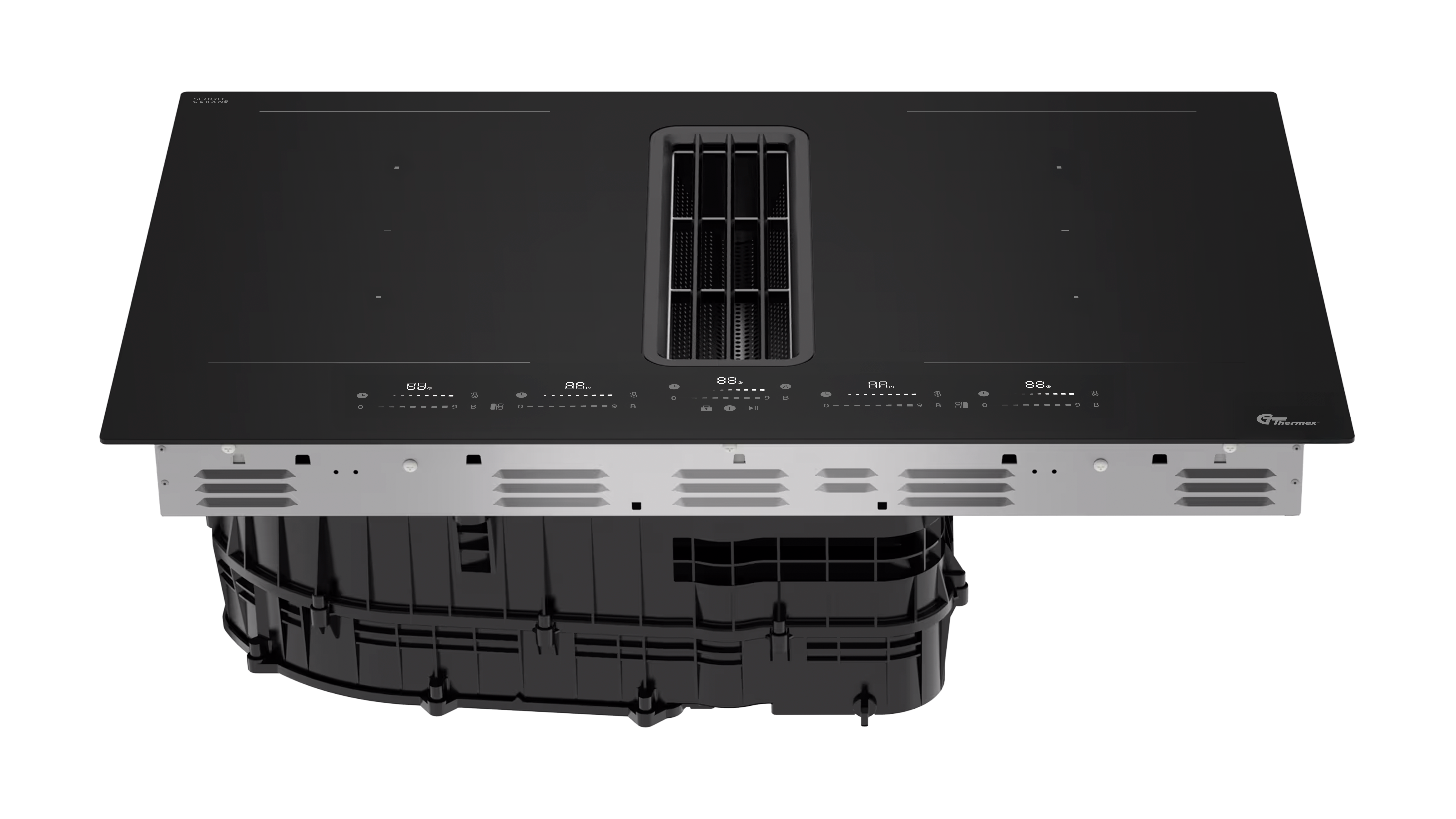

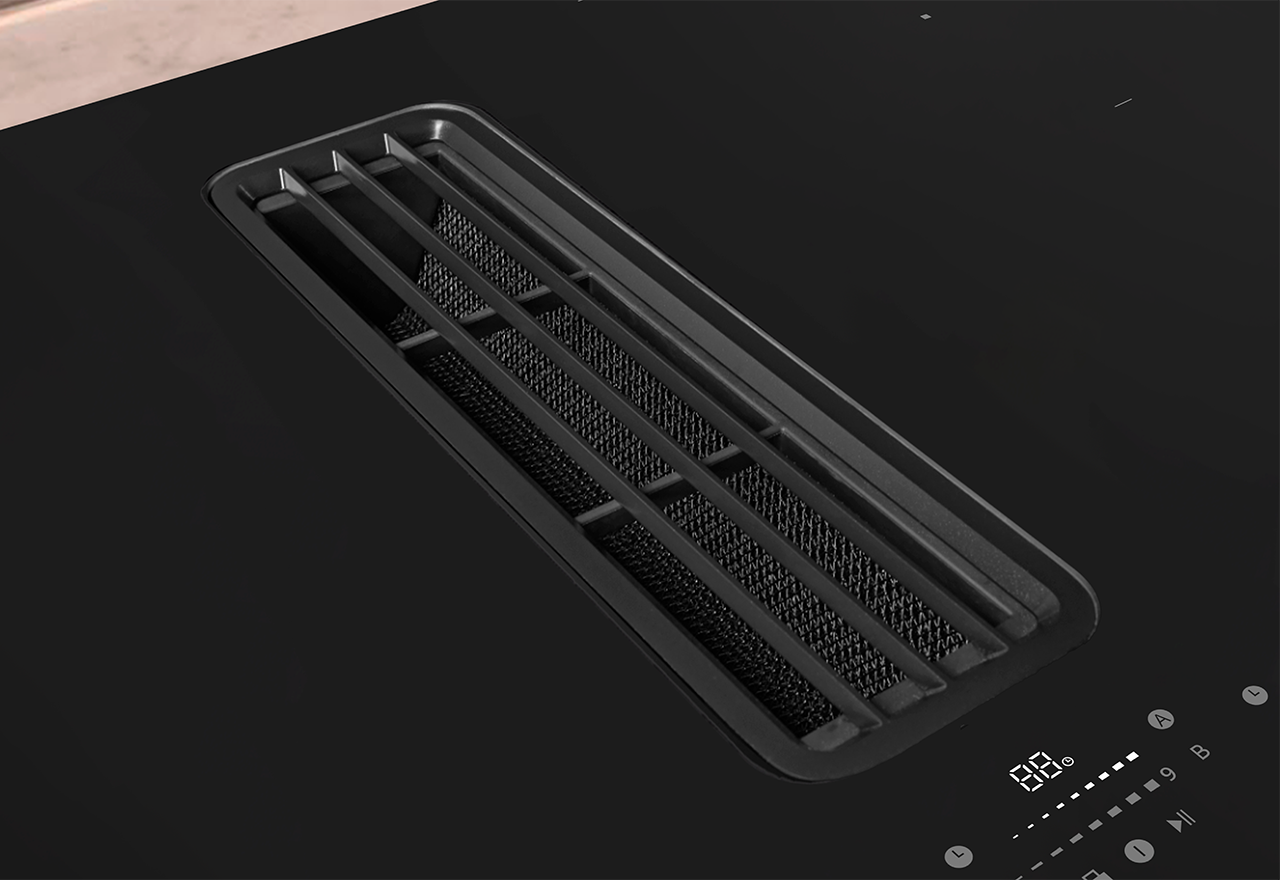

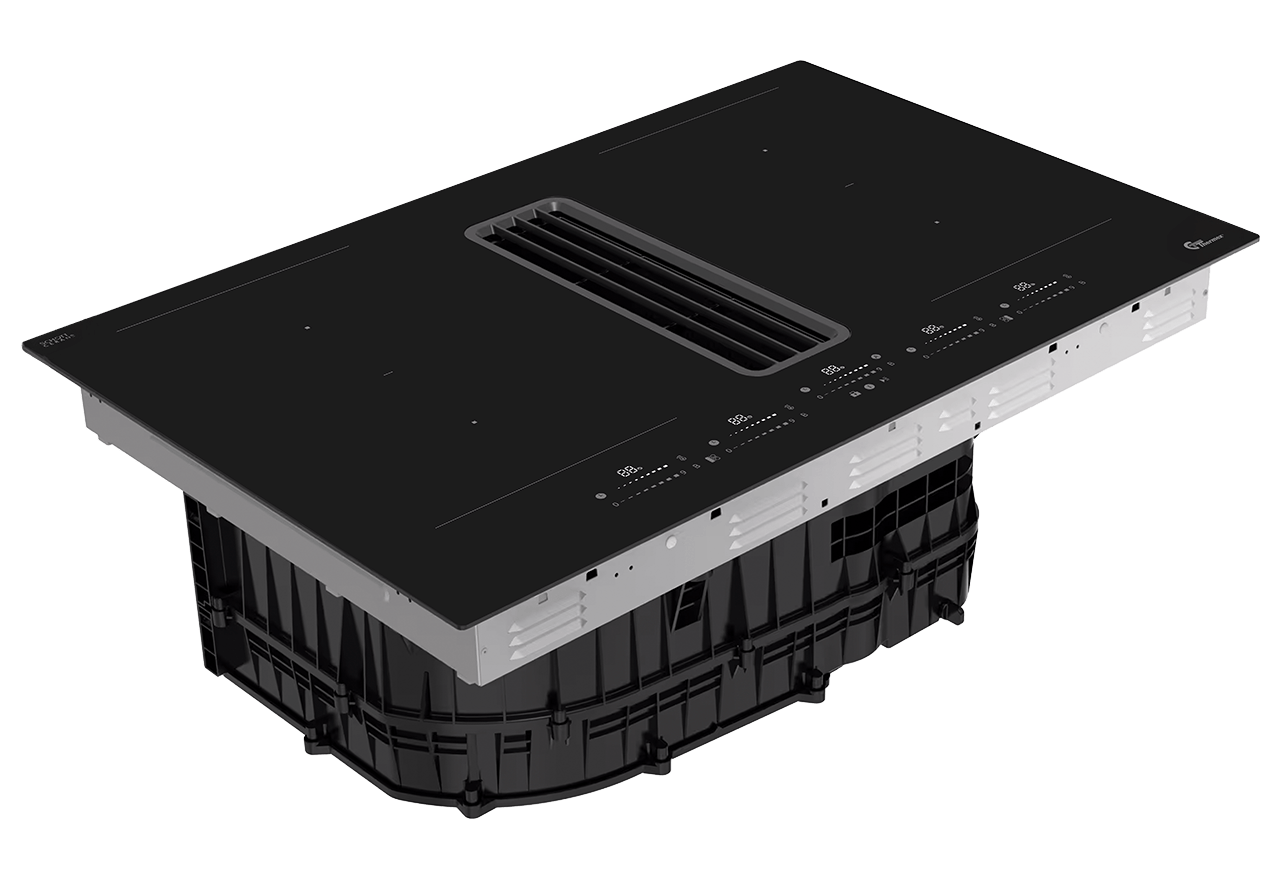

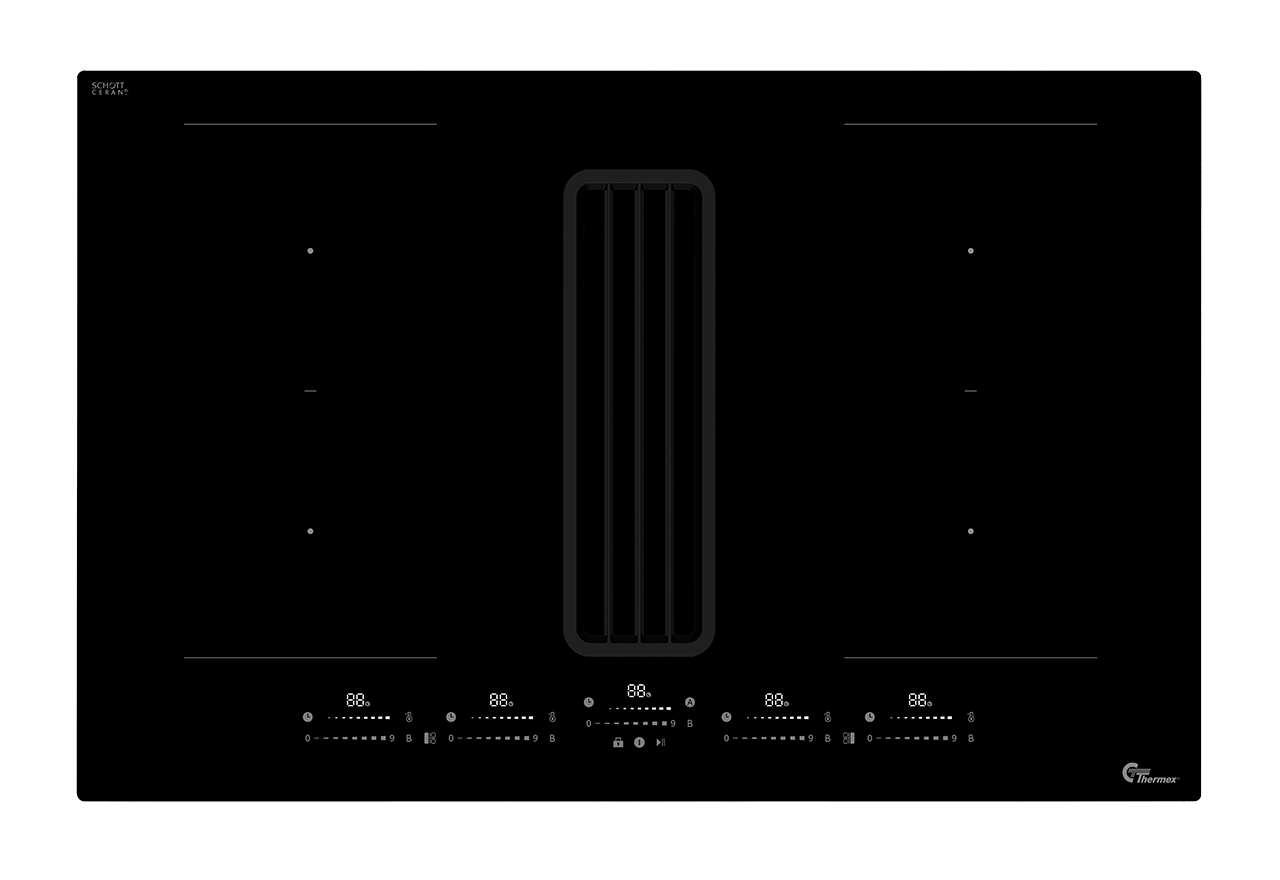

The TXE80 from Thermex is an innovative 80 cm wide induction hob with integrated extractor hood in an elegant design. The hob is made of black Schott glass with a stylish black steel grate in the middle, where the cooker hood's efficient intake is located. Under the grate hides a smart C-shaped grease filter that not only ensures optimal filtration, but also collects any spilled liquid.

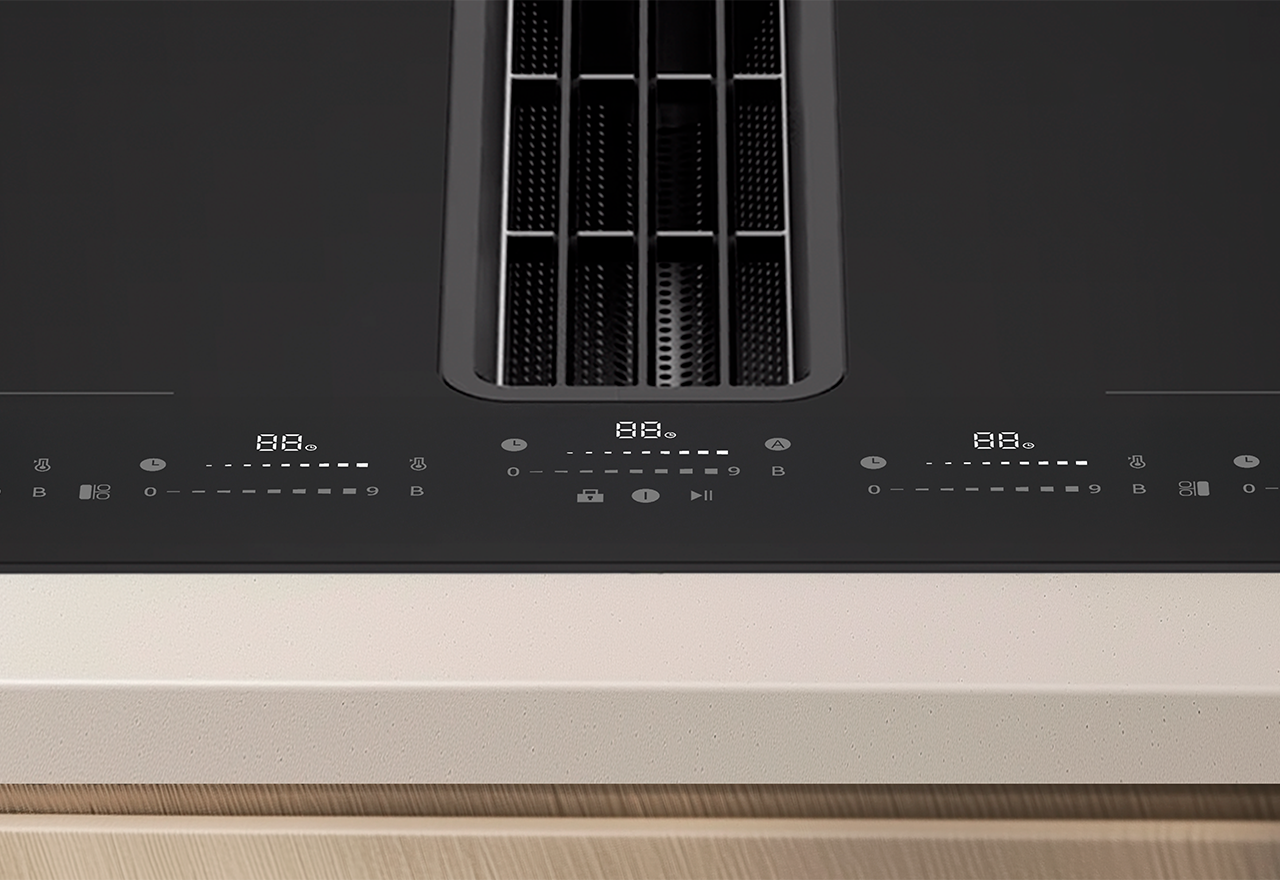

With five separate slider glass touch controls with white light, you have full control: one slider for each cooking zone and a dedicated slider for the cooker hood.
The hob consists of 8 oval zones, which are controlled in pairs as 4 flexible zones – ideal for large pots and pans.
The TXE80 comes with a high-efficiency ceramic carbon filter kit for recirculation. Pipe fittings are purchased separately.
Features and benefits
Compact construction with a height of only 23 cm
Dual bridge function with a total power of up to 3700 W
8 oval cooking zones, controlled as 4 flexible zones
Waterproof design with 2 litre collection capacity
Boost function on all four zones up to 2200 W
Powerful cooker hood with air flow rate of up to 735 m³/h
Quiet operation from 47 dB(A)
Eco motor in energy efficiency class A++
Automatic: The cooker hood turns on, off and adjusts the speed itself in line with the hob
Recirculation possible: For recirculation, use the supplied ceramic carbon filter set (up to 5 years of service life)
Easy cleaning
The smooth surface of Schott glass is easily cleaned with ordinary window cleaner, and the grease filter can be quickly removed and washed in the dishwasher.
Specifications

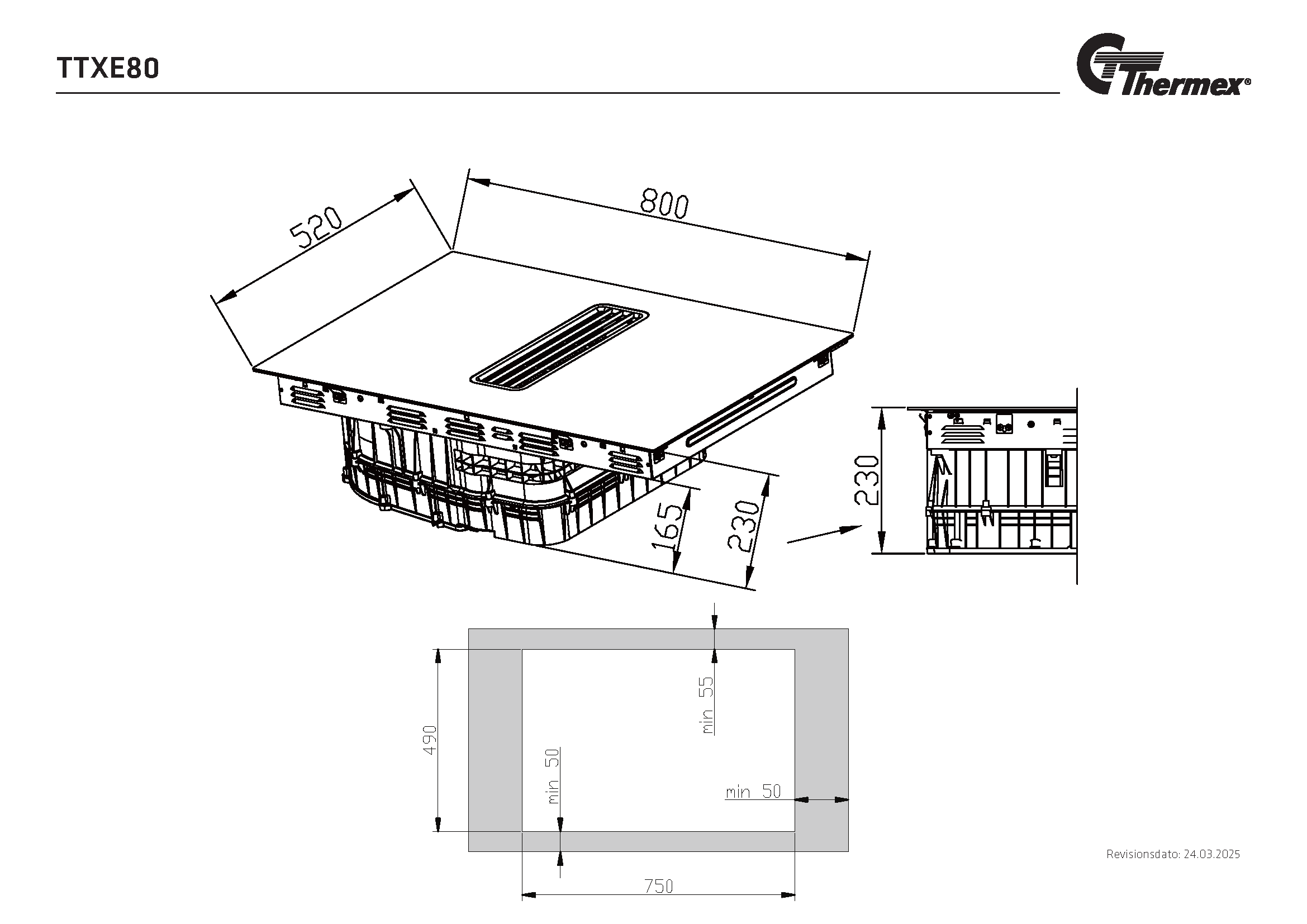

Cut-out dimensions: 750x490 mm
Product dimensions: 800x520x237 mm
Duct connection: 220x90 mm
Collection capacity: 2 litres
Air flow: 235-735 m3/h
Noise level: 47-68 dB(A)
Power supply: 230/400 V
Max Power Consumption: 7400 W
The TXE80 is the perfect choice for those who want a stylish solution with high performance and easy operation – all in one elegant unit.
- 8 oval cooking zones are controlled as 4 flexible zones
- Schott glass and white light control
- Integrated cooker hood with up to 735 m³/h
- Automatic cooker hood control and low noise level
- Easy cleaning and dishwasher-safe filter
Specifications
Minimum airflow [m3/h]
235
Minimum-Soundpower [dB(A)]
47
Maximum-airflow [m3/h]
579
Maximum-Soundpower [dB(A)]
62
Airflow with boost [m3/h]
735
Soundpower boost [dB(A)]
68
Control
Glass touch
Material
Black glass
Voltage [V]
230/400
Projekteringsfane
Odour extraction test standard
Specifications
Minimum airflow [m3/h]
235
Minimum-Soundpower [dB(A)]
47
Maximum-airflow [m3/h]
579
Maximum-Soundpower [dB(A)]
62
Airflow with boost [m3/h]
735
Soundpower boost [dB(A)]
68
Control
Glass touch
Material
Black glass
Voltage [V]
230/400
Weight and measurements
Maximum width [mm]
800
Maximum depth [mm]
520
Maximum height [mm]
230
Cooking zone rear-right [mm]
210x185
Cooking zone rear-left [mm]
210x185
Cooking zone front-right [mm]
210x185
Cooking zone Front-left [mm]
210x185
Installation dimensions WxD [mm]
750x490
Outlet dimension (mm)
220x90
Packaging width(mm)
920
Packaging depth [mm]
655
Packaging height(mm)
428
Net weight [kg]
24.9
Weight
29
Features
Control
Glass touch
Boost funktion
Yes
Decor light
Timer funktion
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
No
Light dimmer
Periodic room ventilation
No
Wi-Fi
No
Bridge function
Yes
Automatic bridge function
No
Boost function
Yes
Child safety
Yes
Pot sensor
Yes
Keep warm function
Yes
Automatic boiling
No
Recall
No
Safety shutdown
Yes
Stop & Go
Yes
Toplink compatible
No
Smarthome
No
Timer function
Yes
Technical specifications
LE-class
EEI-value
33.2
EEI-class
A++
GFE-value
80.2
GFE-class
C
FDE-value
31.7
FDE-class
A
AEC [kWh/h]
11.7
Cooking area Rear-right [W]
3600
Cooking zone Rear-left [W]
3600
Cooking zone Front-right [W]
3600
Cooking zone Front-left [W]
3600
Total power of the hob [W]
7400
Energiforbrug standby (Ps) [W]
0.39
Odour extraction test standard
Motor Power [W]
160
Voltage [V]
230/400
Other specifications
EAN
5703347534393
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
In
Carbon filter code
535.21.3020.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
0
Suction Bottom
Suction Front
Suction Edge
Longer vent pipe available
Vent pipe modification
Mounting
Table integrated
Motor type
Internal motor
Front panel color
BodyColor
Black
Front panel material
Material
Black glass
Number of cooking zones
4
Flush mounting
Yes
SupplyCord (m)
1.5
