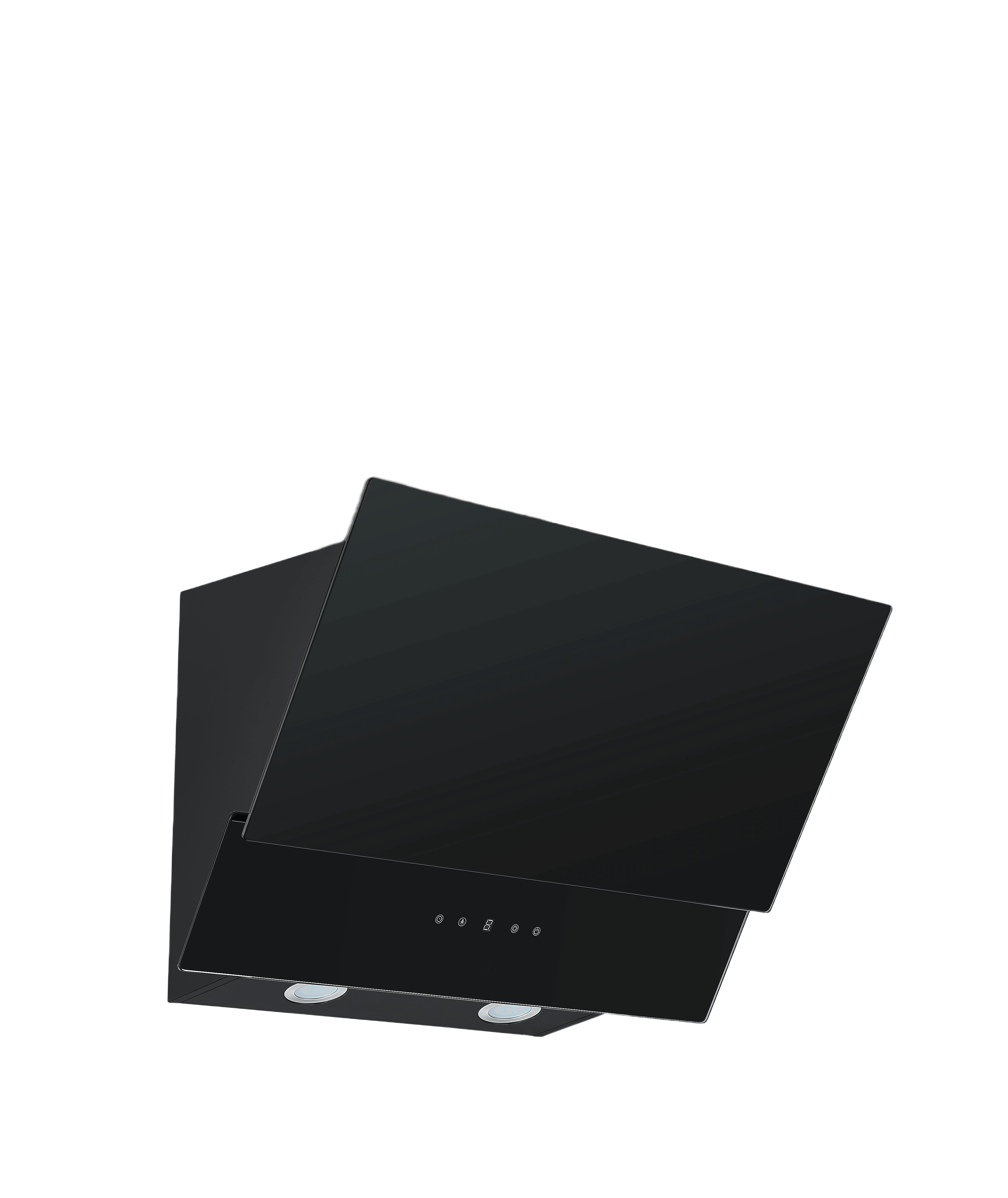

Vertical 2 60cm

540.21.2060.2
Width
Please select variant!

Specifications

Minimum airflow [m3/h]
180
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
542
Maximum-Soundpower [dB(A)]
64
Control
Glass touch
Material
Black painted steel and Black glass

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
375
Maximum height [mm]
1150
Minimum length vent pipe cutdown [mm]
500
Outlet dimension (mm)
Ø150
Packaging width(mm)
652
Packaging depth [mm]
435
Packaging height(mm)
440
Net weight [kg]
12.5
Weight
14.5

Features

Control
Glass touch
Moveable outlet
No
Built-in trigger function
No
Wi-Fi
No

Technical specifications

Illumination (Emiddle) [lux]
138
LE value [lux/W]
32.9
LE-class
G
EEI-value
38.8
EEI-class
A+
Energy consumption in off mode (Po) [W]
0.43
Colour temperature [Kelvin]
0
Lamp consumption [W]
3
Total consumption of light (WL) [W]
3
GFE-value
82
GFE-class
C
FDE-value
32.5
FDE-class
A
Power supply [V]
230
Odour extraction test standard
Motor Power [W]
75

Other specifications

EAN
5703347529870
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.21.8600.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Vent pipe modification
Yes
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.2

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info
