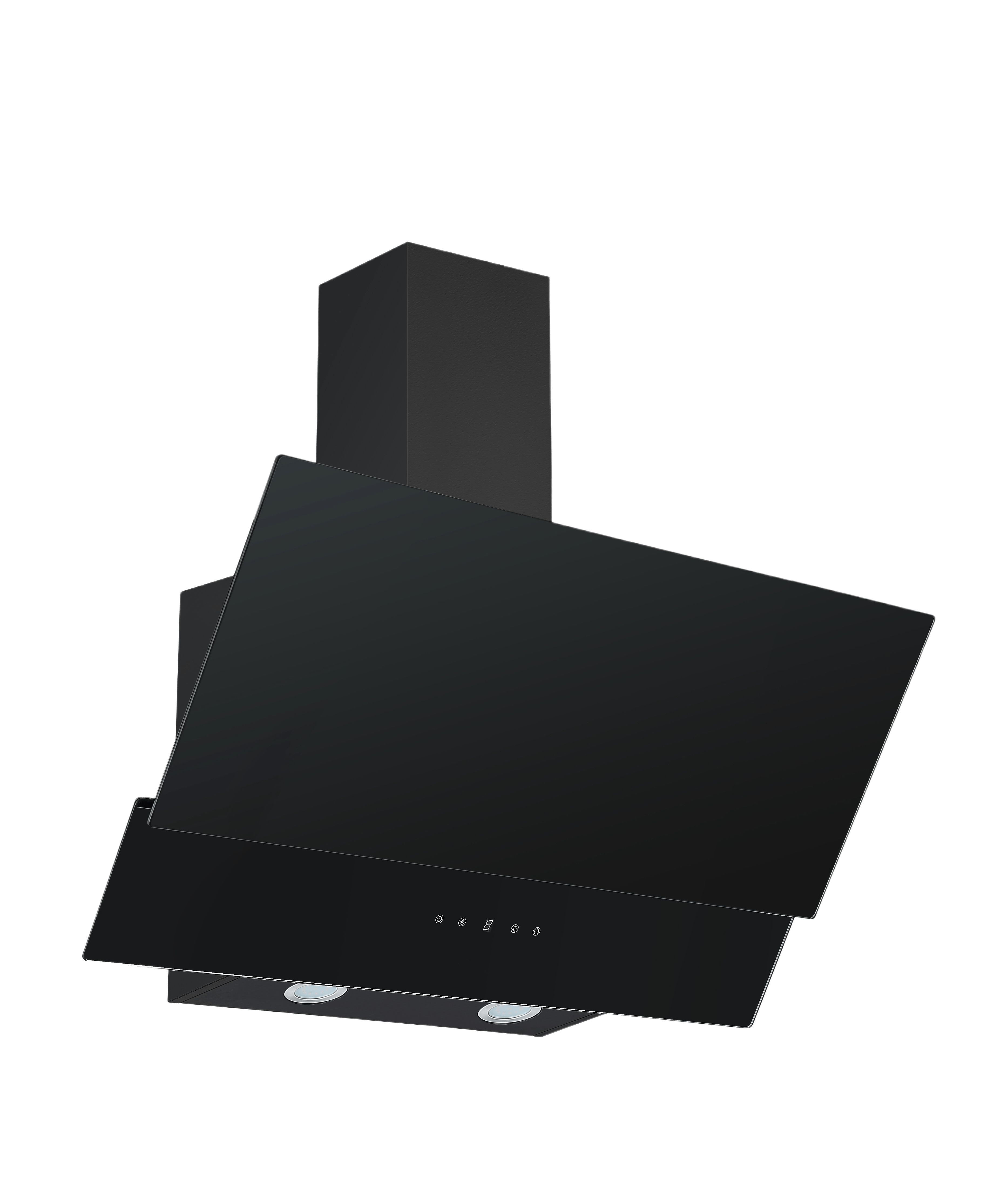

Vertical 2 80cm
540.21.2080.2
Width
Specifications
Minimum airflow [m3/h]
180
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
542
Maximum-Soundpower [dB(A)]
64
Control
Glass touch
Material
Black painted steel and Black glass
Voltage [V]
230
Weight and measurements
Maximum width [mm]
800
Maximum depth [mm]
375
Maximum height [mm]
1150
Minimum length vent pipe cutdown [mm]
500
Outlet dimension (mm)
Ø150
Packaging width(mm)
852
Packaging depth [mm]
435
Packaging height(mm)
440
Net weight [kg]
13.6
Weight
16.6
Features
Control
Glass touch
Moveable outlet
No
Built-in trigger function
No
Wi-Fi
No
Technical specifications
Illumination (Emiddle) [lux]
138
LE value [lux/W]
32.9
LE-class
A
EEI-value
38.8
EEI-class
A+
Energy consumption in off mode (Po) [W]
0.43
Colour temperature [Kelvin]
0
Lamp consumption [W]
3
Total consumption of light (WL) [W]
3
GFE-value
82
GFE-class
C
FDE-value
32.5
FDE-class
A
Odour extraction test standard
Motor Power [W]
75
Voltage [V]
230
Other specifications
EAN
5703347529887
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.21.8600.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Vent pipe modification
Yes
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.2
