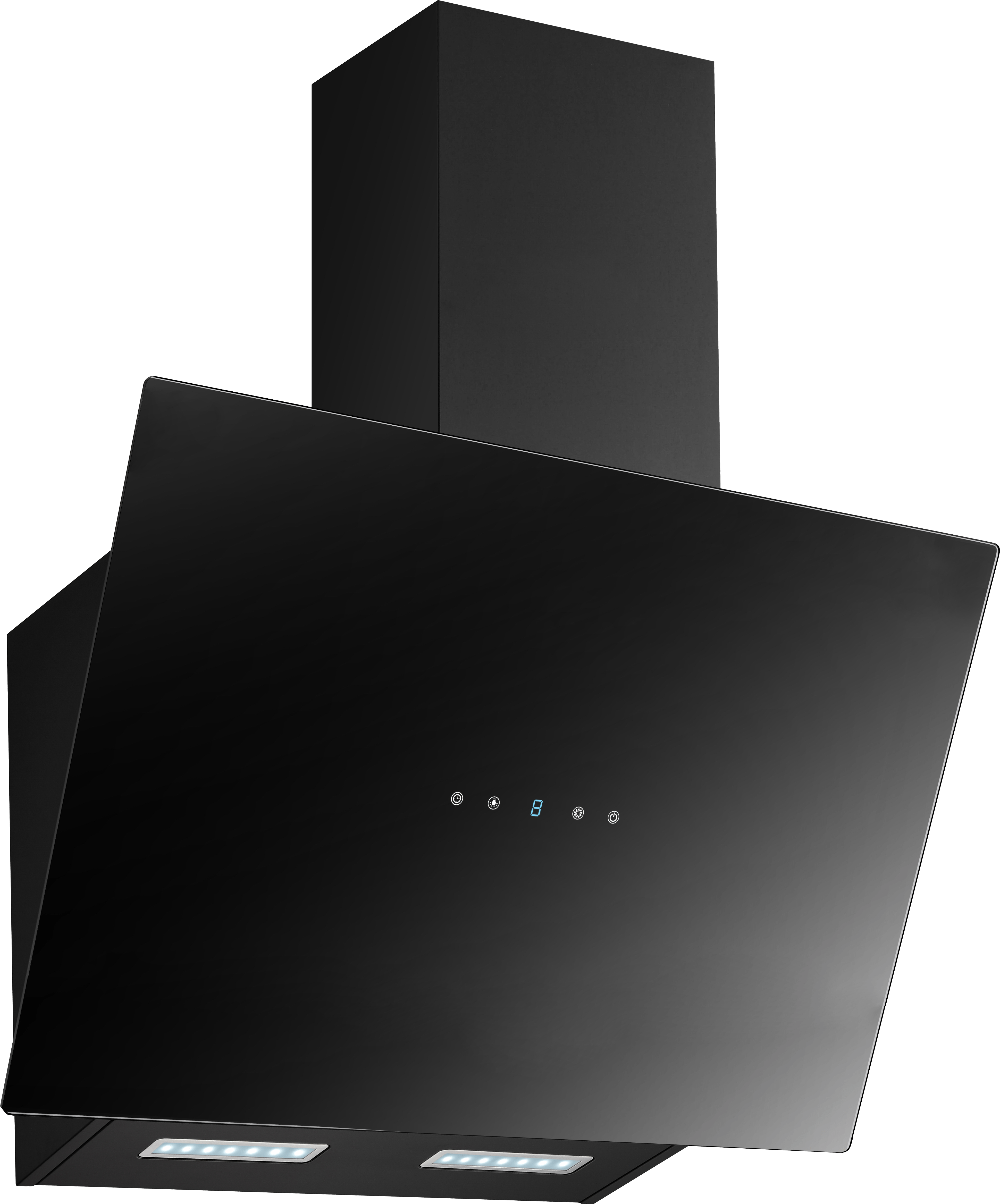

Vertical 360 black

540.21.3060.2
Thermex Vertical 360 is an elegant vertical hood in black steel and glass, wall-mounted with smart glass touch controls. Low noise level, powerful motor, and A+ energy rating for efficient and environmentally friendly operation.

Vertical 360 by Thermex is a vertical hood designed for wall mounting. It's made by black paint steel with an elegant black glass panel. With a width of 60 cm, it fits perfectly into most kitchens.

This hood is not only stylish but also practical. It features an aluminum filter that can be easily cleaned in the dishwasher. To keep the glass sparkling clean, it's recommended to wipe it with a damp cloth and then use window cleaner.

Operating the Vertical 360 is easy and smart thanks to its glass touch controls. You can adjust the hood's suction power across three speeds and turn the light on or off as needed.

The hood has a built-in motor with low energy consumption and an A+ energy rating, making it both environmentally friendly and economical to use. Despite the powerful motor, it has a low noise level, as low as 42 dB(A), allowing you to cook in peace. With an impressive airflow of up to 538 m³/h, the Vertical 360 effectively removes cooking odors and steam from your kitchen.

  • Elegant vertical design with black glass
  • Simple and smart glass touch operation
  • Efficient and energy-friendly extraction motor with energylabel A+
  • Powerful motor and airflow up to 538 m3/h
  • Low noise level from 42 dB(A)

Specifications

Minimum airflow [m3/h]
195
Minimum-Soundpower [dB(A)]
42
Maximum-airflow [m3/h]
569
Maximum-Soundpower [dB(A)]
62
Energy consumption [W]
78
Control
Glass touch
Material
Black painted steel and Black glass
Voltage [V]
230

Specifications

Minimum airflow [m3/h]
195
Minimum-Soundpower [dB(A)]
42
Maximum-airflow [m3/h]
569
Maximum-Soundpower [dB(A)]
62
Energy consumption [W]
78
Control
Glass touch
Material
Black painted steel and Black glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
382
Maximum height [mm]
1144
Vent pipe width (mm)
222
Vent pipe max height (mm)
780
Vent pipe min height (mm)
172
Outlet dimension (mm)
Ø150
Packaging width(mm)
700
Packaging depth [mm]
435
Packaging height(mm)
445
Net weight [kg]
14.5
Weight
15

Features

Control
Glass touch
Boost funktion
No
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
135
LE value [lux/W]
34.6
LE-class
A
EEI-value
38.9
EEI-class
A+
Energy consumption in off mode (Po) [W]
0.39
Colour temperature [Kelvin]
3000
Lamp consumption [W]
3
Total consumption of light (WL) [W]
4.2
GFE-value
72.2
GFE-class
D
FDE-value
33.9
FDE-class
A
Energy consumption [W]
78
Type of plug
Schuko
Odour extraction test standard
Motor Power [W]
75
Voltage [V]
230

Other specifications

EAN
5703347530722
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Nei
Carbon filter code
535.21.8600.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
No
Suction Front
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
