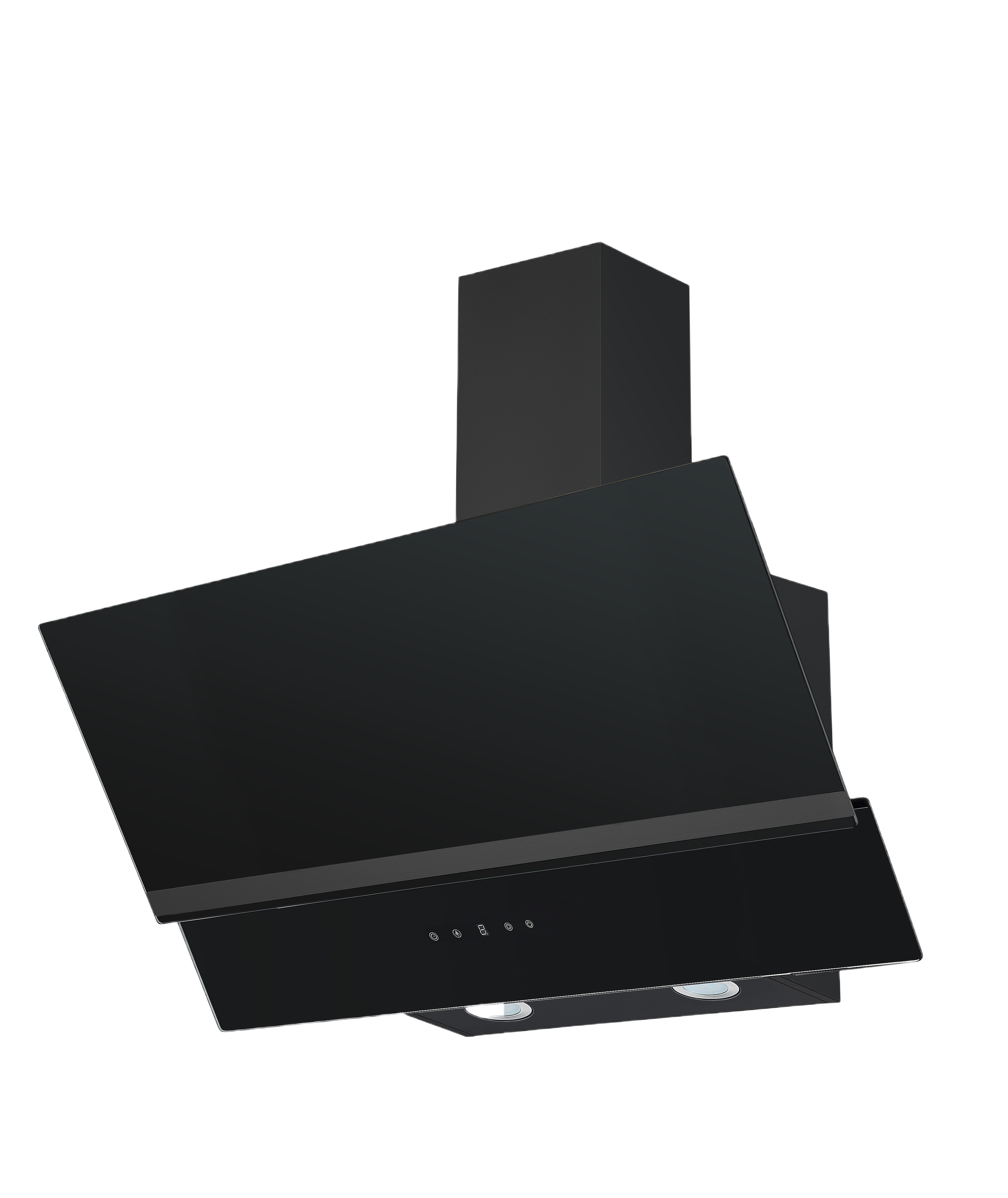

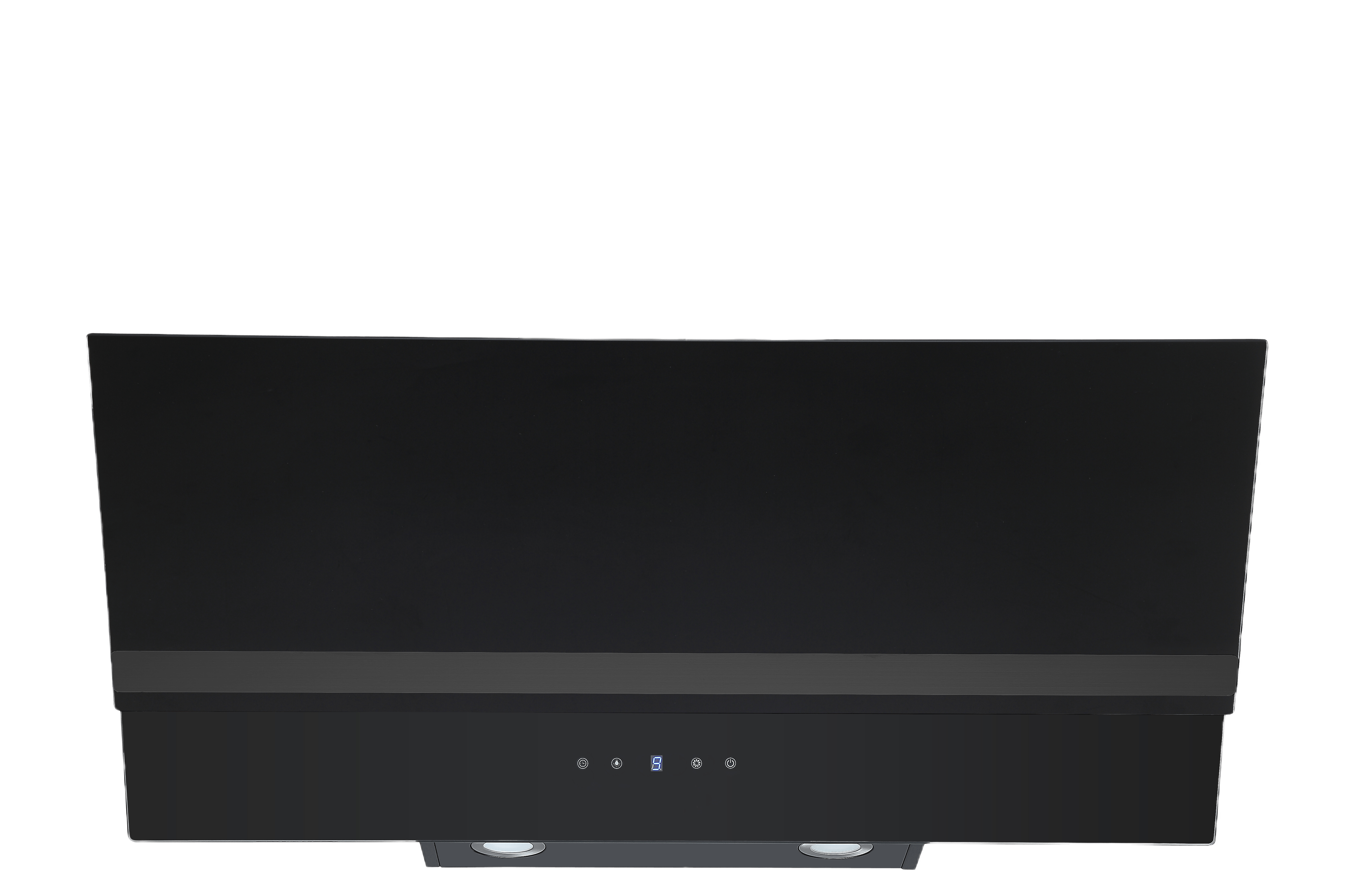

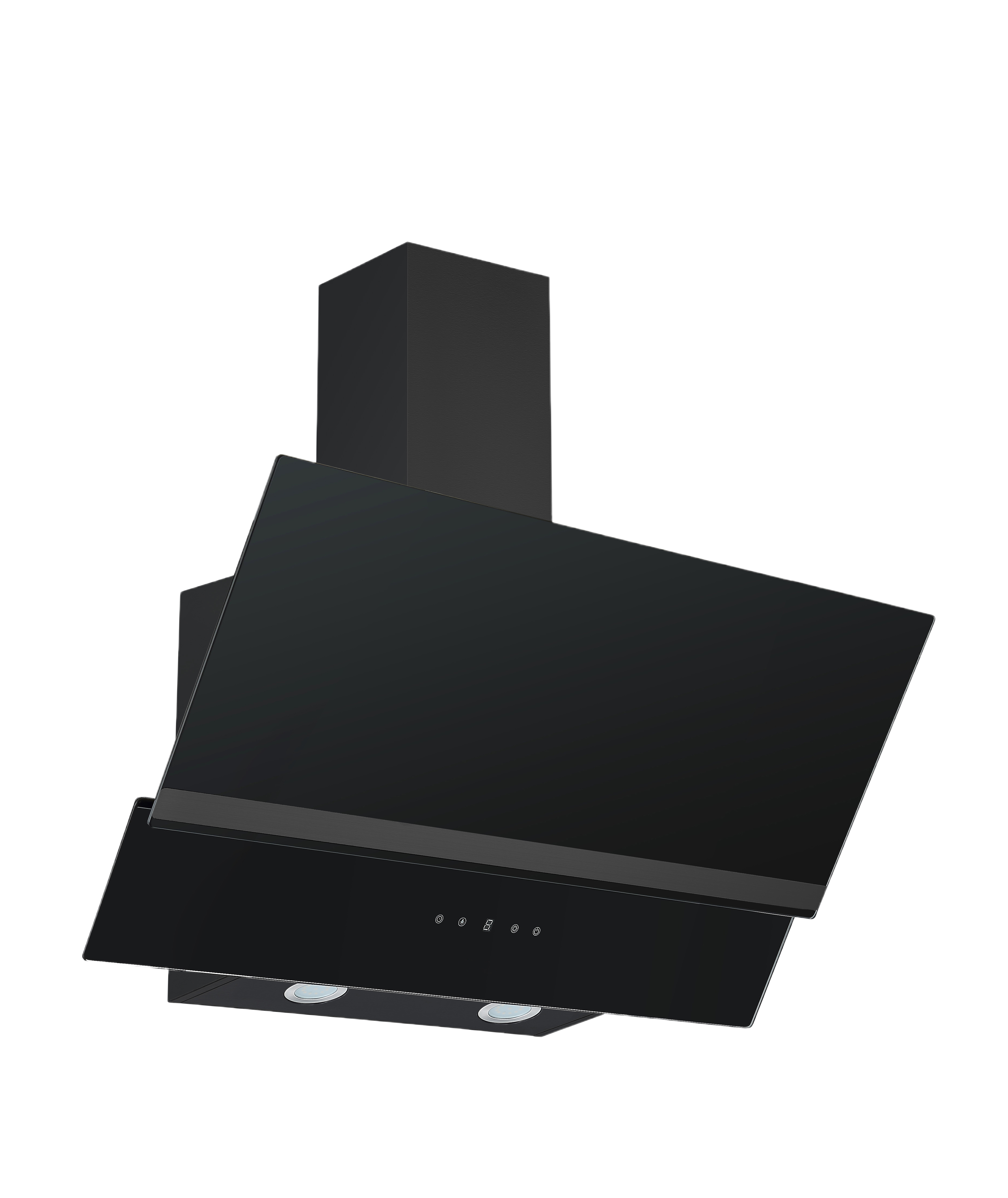

Vertical 4080
540.21.4082.2
Width
Specifications
Minimum airflow [m3/h]
180
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
542
Maximum-Soundpower [dB(A)]
64
Control
Glass touch
Material
Black painted steel and Black glass
Voltage [V]
230
Weight and measurements
Maximum width [mm]
800
Maximum depth [mm]
375
Maximum height [mm]
1150
Outlet dimension (mm)
Ø150
Packaging width(mm)
852
Packaging depth [mm]
435
Packaging height(mm)
440
Net weight [kg]
15
Weight
17
Features
Control
Glass touch
Moveable outlet
No
Built-in trigger function
No
Wi-Fi
No
Technical specifications
Illumination (Emiddle) [lux]
138
LE value [lux/W]
32.9
LE-class
A
EEI-value
38.8
EEI-class
A+
Energy consumption in off mode (Po) [W]
0.43
Colour temperature [Kelvin]
0
Lamp consumption [W]
3
Total consumption of light (WL) [W]
3
GFE-value
82
GFE-class
C
FDE-value
32.5
FDE-class
A
Odour extraction test standard
Motor Power [W]
75
Voltage [V]
230
Other specifications
EAN
5703347532191
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.21.8600.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Suction Front
No
Longer vent pipe available
No
Vent pipe modification
Yes
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.2
Downloads
Here you will find all documents relevant to this product
