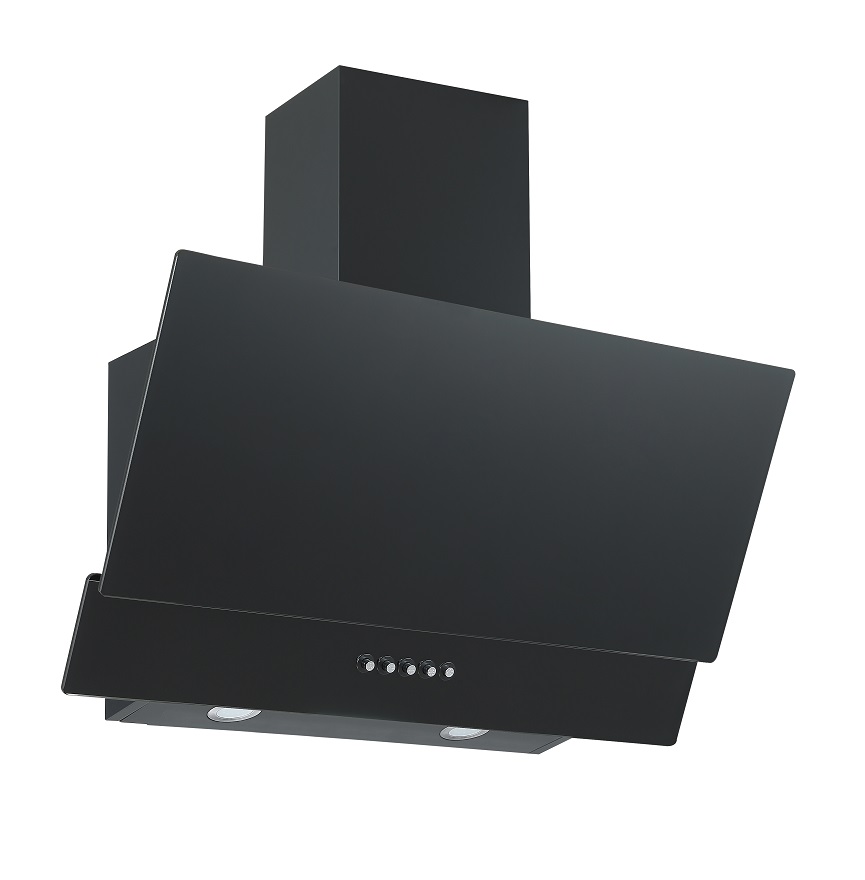

Vertical 560

540.21.6162.2

Specifications

Minimum airflow [m3/h]
179
Minimum-Soundpower [dB(A)]
55
Maximum-airflow [m3/h]
335
Maximum-Soundpower [dB(A)]
67
Energy consumption [W]
37
Control
Push buttons
Material
Black painted steel and Black glass

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
263
Maximum height [mm]
880
Vent pipe width (mm)
222
Vent pipe max height (mm)
780
Vent pipe min height (mm)
400
Minimum length vent pipe cutdown [mm]
350
Outlet dimension (mm)
Ø150
Packaging width(mm)
652
Packaging depth [mm]
440
Packaging height(mm)
435
Net weight [kg]
7.2
Weight
8.5

Features

Control
Push buttons
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
251
LE value [lux/W]
67.8
LE-class
G
EEI-value
53.1
EEI-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
4
GFE-value
65.1
GFE-class
D
FDE-value
20.9
FDE-class
C
Energy consumption [W]
37
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.48
Odour extraction test standard
Motor Power [W]
33

Other specifications

EAN
5703347533396
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.21.8320.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
No
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
No
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.2
