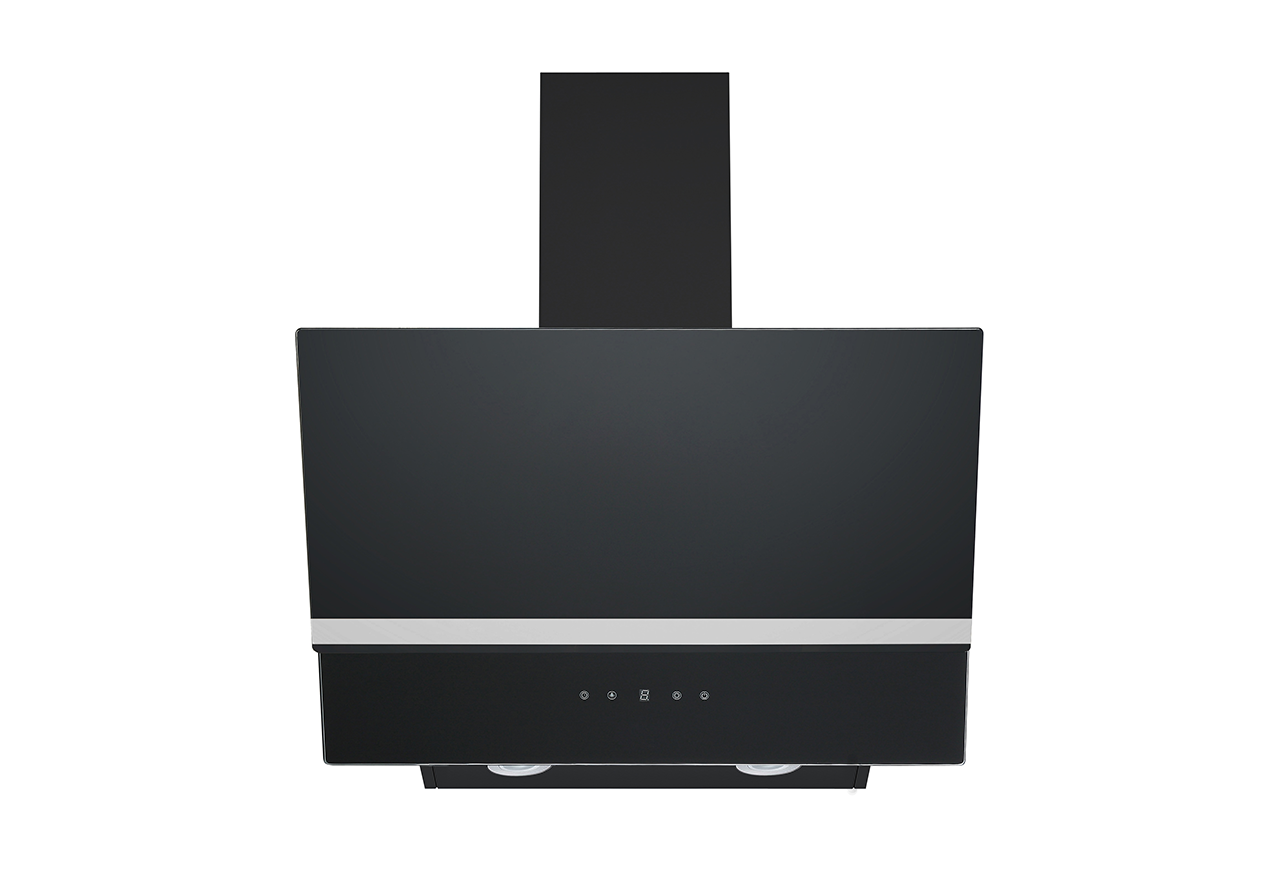

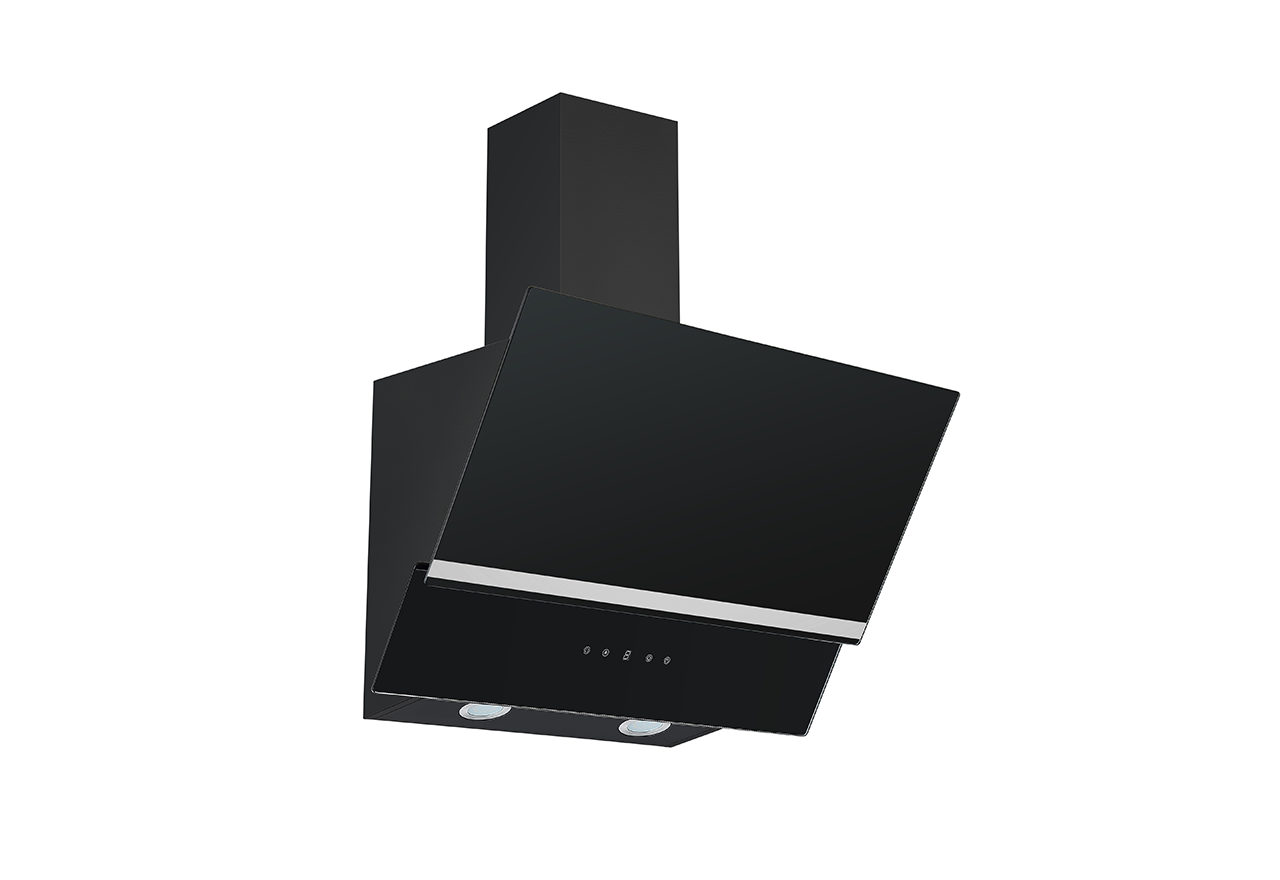

Vertical 60

540.21.1362.2
Width
Please select variant!

Specifications

Minimum airflow [m3/h]
180
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
542
Maximum-Soundpower [dB(A)]
64
Control
Glass touch
Material
Black painted steel and Black glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
375
Maximum height [mm]
1150
Outlet dimension (mm)
Ø150
Packaging width(mm)
435
Packaging depth [mm]
652
Packaging height(mm)
440
Net weight [kg]
12.5
Weight
14.5

Features

Control
Glass touch
Boost funktion
No
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
138
LE value [lux/W]
32.9
LE-class
A
EEI-value
38.8
EEI-class
A+
Energy consumption in off mode (Po) [W]
0.43
Lamp consumption [W]
3
Total consumption of light (WL) [W]
3
GFE-value
82
GFE-class
C
FDE-value
32.5
FDE-class
A
Power supply [V]
230
Odour extraction test standard
Motor Power [W]
75
Voltage [V]
230

Other specifications

EAN
5703347967979
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.21.8600.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
No
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
No
Vent pipe modification
Yes
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.2

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info
