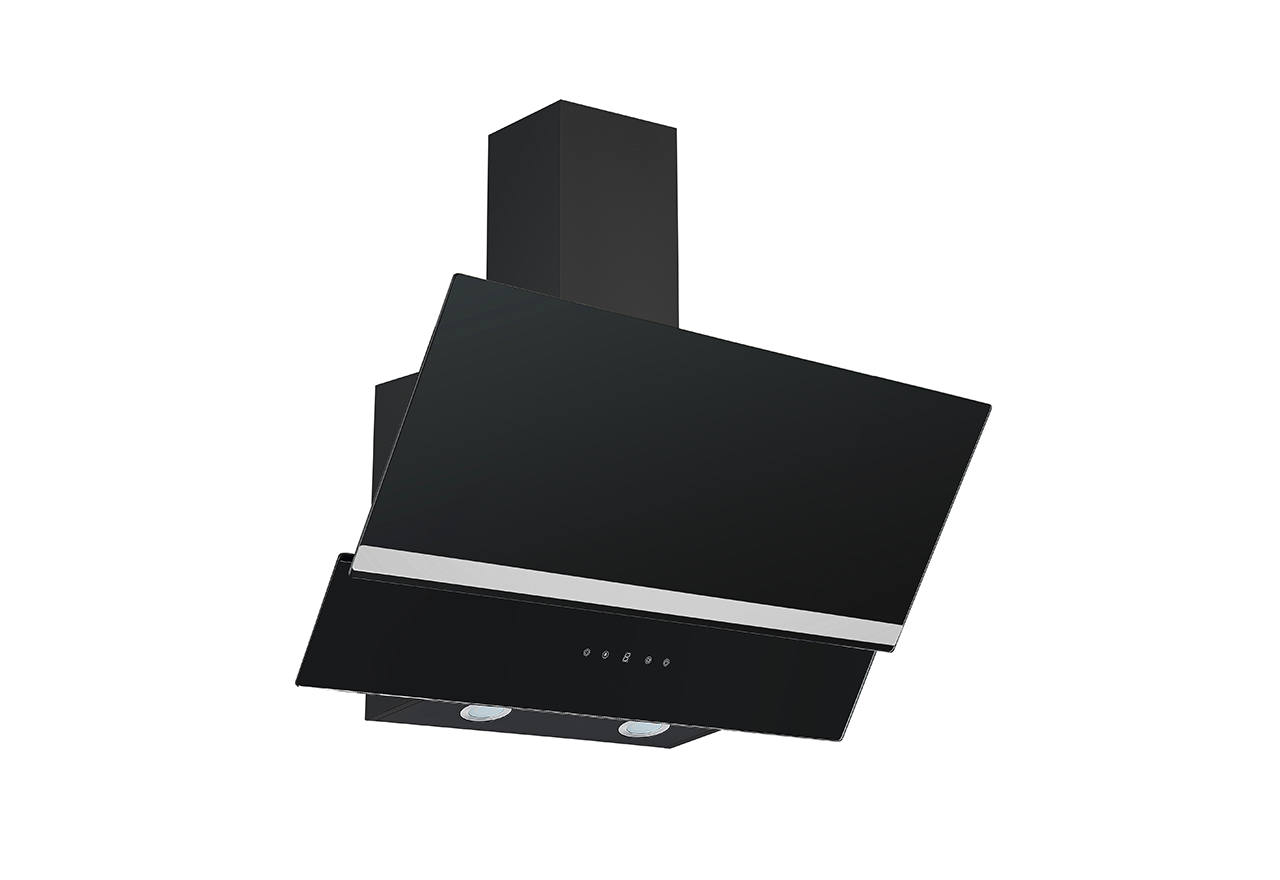

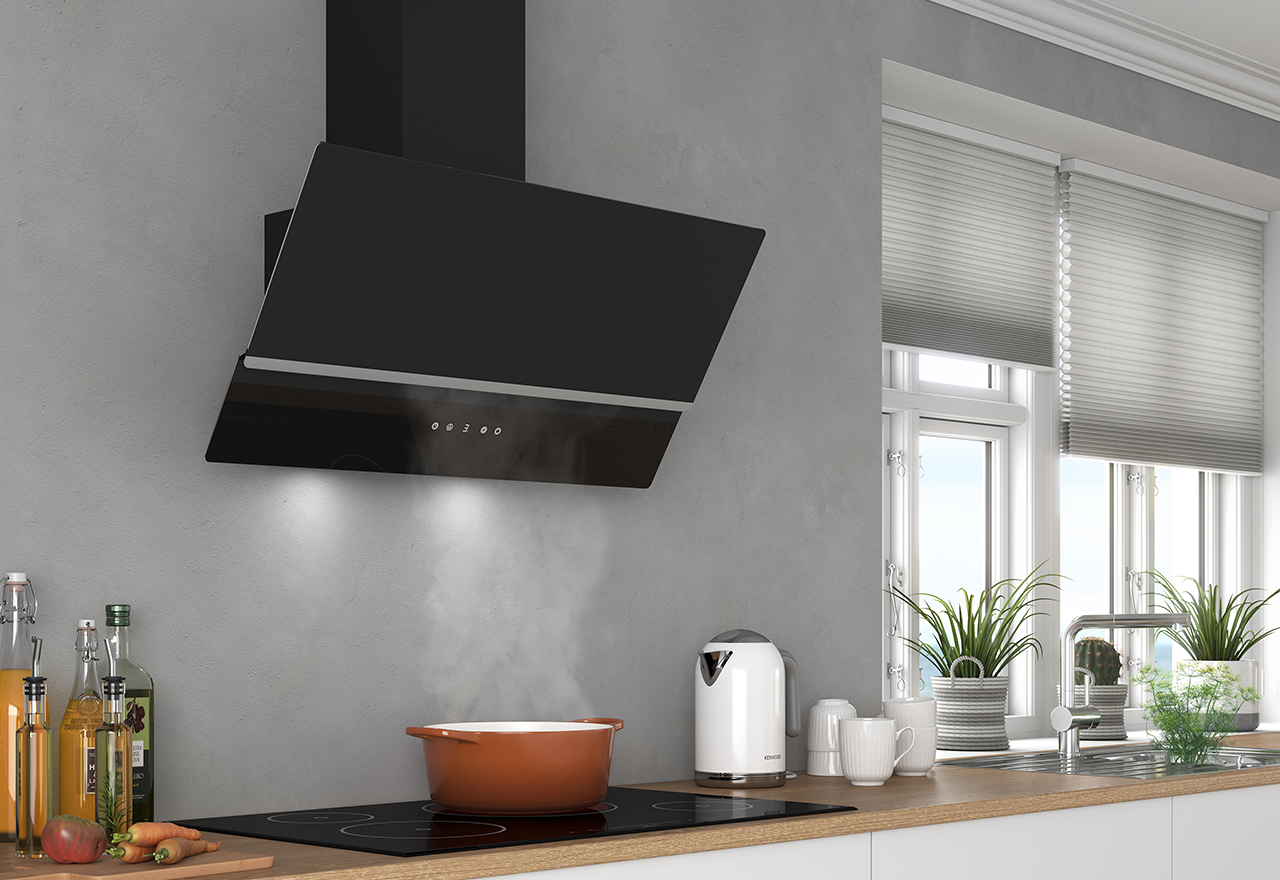

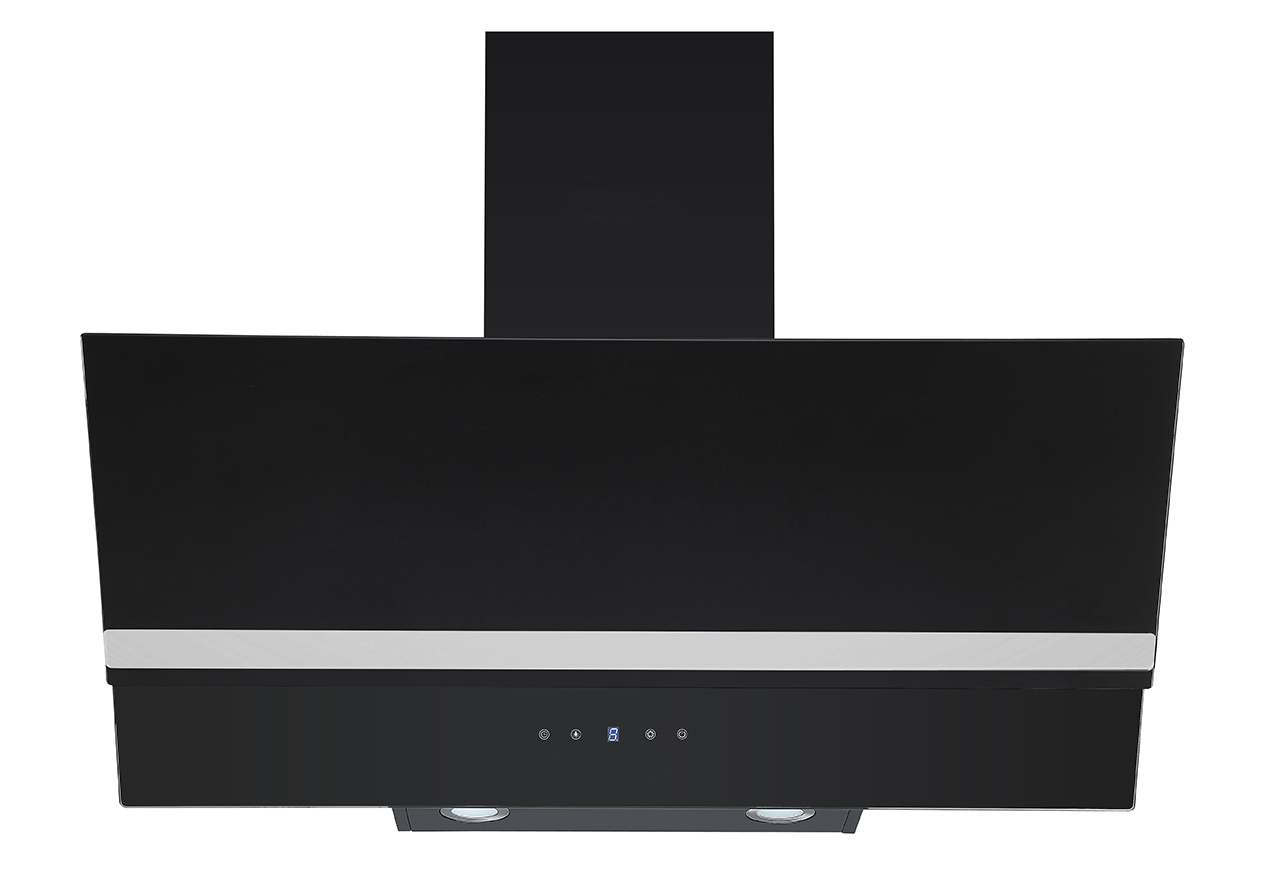

Vertical 80
540.21.1382.2
Width
Specifications
Minimum airflow [m3/h]
180
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
542
Maximum-Soundpower [dB(A)]
64
Control
Glass touch
Material
Black painted steel and Black glass
Voltage [V]
230
Weight and measurements
Maximum width [mm]
800
Maximum depth [mm]
375
Maximum height [mm]
1150
Outlet dimension (mm)
Ø150
Packaging width(mm)
435
Packaging depth [mm]
852
Packaging height(mm)
440
Net weight [kg]
13.6
Weight
16.6
Features
Control
Glass touch
Boost funktion
No
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
Illumination (Emiddle) [lux]
138
LE value [lux/W]
32.9
LE-class
A
EEI-value
38.8
EEI-class
A+
Energy consumption in off mode (Po) [W]
0.43
Lamp consumption [W]
3
Total consumption of light (WL) [W]
3
GFE-value
82
GFE-class
C
FDE-value
32.5
FDE-class
A
Odour extraction test standard
Motor Power [W]
75
Voltage [V]
230
Other specifications
EAN
5703347967986
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.21.8600.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
No
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
No
Vent pipe modification
Yes
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.2
