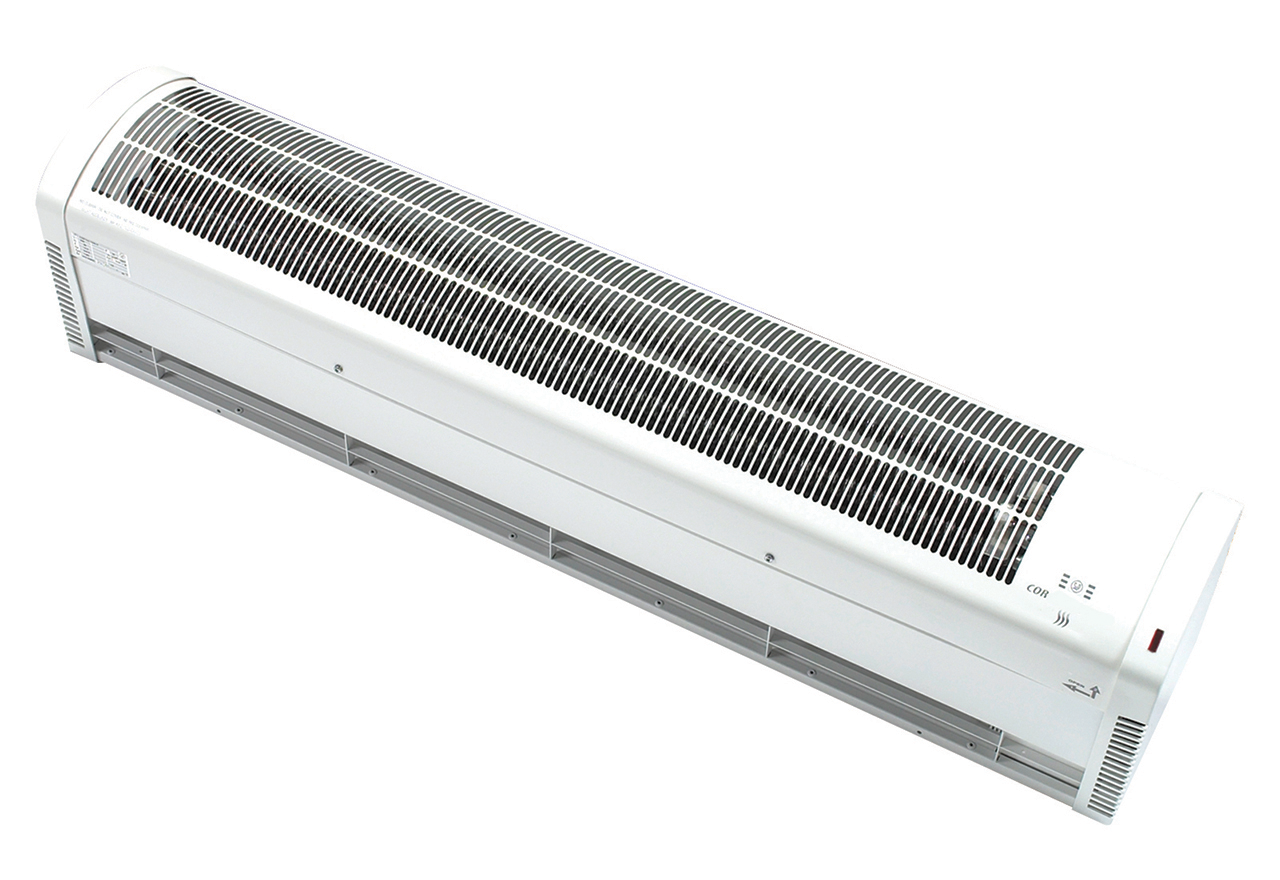

COR-9-1500N with regulation

310.34.2905.3
Facilitate access. Reduces drag, heat release and dust absorption.
Model
Incl. Remote control
Please select variant!

Air curtain COR - N has many applications. COR air curtain is specially designed for use over entrance doors in shops, warehouses etc. entrance doors and smaller gates with a max. height of 4.0 m but can also be used for heating and drying in industry.

COR-N air curtain can also be supplied without heating.

NOTE: It is important that the device covers the entire port opening. Please request additional technical information such as wiring diagrams.

Specifications

Energy consumption [W]
9000
Luftmængde ved 0 Pascal [m3/t]
2500
Control
Regulation
Material
White painted steel
Voltage [V]
400

Specifications

Energy consumption [W]
9000
Luftmængde ved 0 Pascal [m3/t]
2500
Control
Regulation
Material
White painted steel
Voltage [V]
400

Weight and measurements

Maximum width [mm]
1686
Maximum depth [mm]
250
Maximum height [mm]
210
Packaging width(mm)
1860
Packaging depth [mm]
320
Packaging height(mm)
295
Net weight [kg]
20.8
Weight
22.8

Features

Control
Regulation

Technical specifications

Energy consumption [W]
9000
Lufthastighed
10
Luftmængde ved 0 Pascal [m3/t]
2500
Maximum sound pressure at 3 meters [dB(A)]
50
Voltage [V]
400

Other specifications

EAN
8413893182951
El-nummer
9978868595
VVS-nummer
355620159
BodyColor
White
Material
White painted steel

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual
