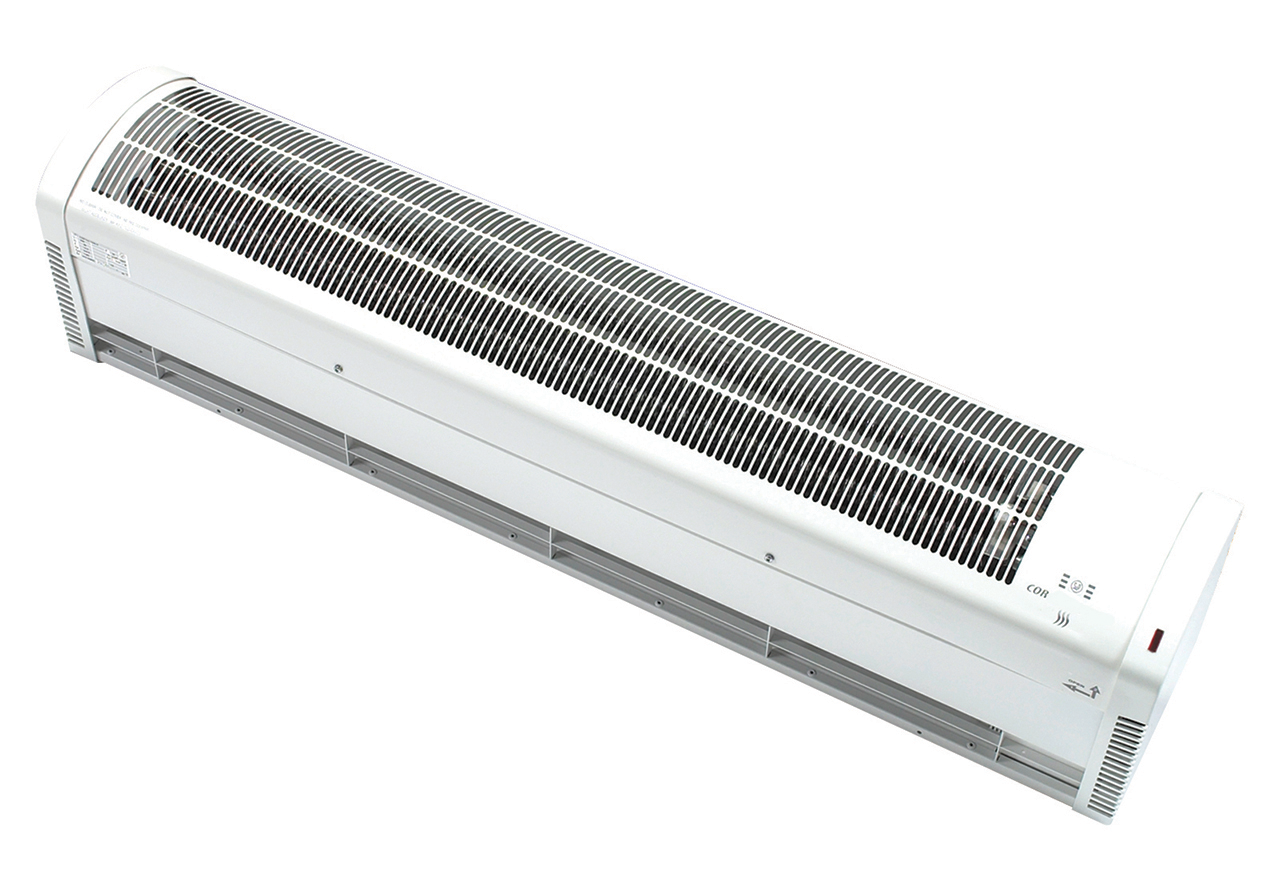

COR-9-1500N with remote control
310.34.2915.3
Facilitate access. Reduces drag, heat release and dust absorption.
Model
Incl. Remote control
Air curtain COR - N has many applications. COR air curtain is specially designed for use over entrance doors in shops, warehouses etc. entrance doors and smaller gates with a max. height of 4.0 m but can also be used for heating and drying in industry.
COR-N air curtain can also be supplied without heating.
NOTE: It is important that the device covers the entire port opening. Please request additional technical information such as wiring diagrams.
Specifications
Energy consumption [W]
9000
Luftmængde ved 0 Pascal [m3/t]
2500
Control
Regulation
Material
White painted steel
Voltage [V]
400

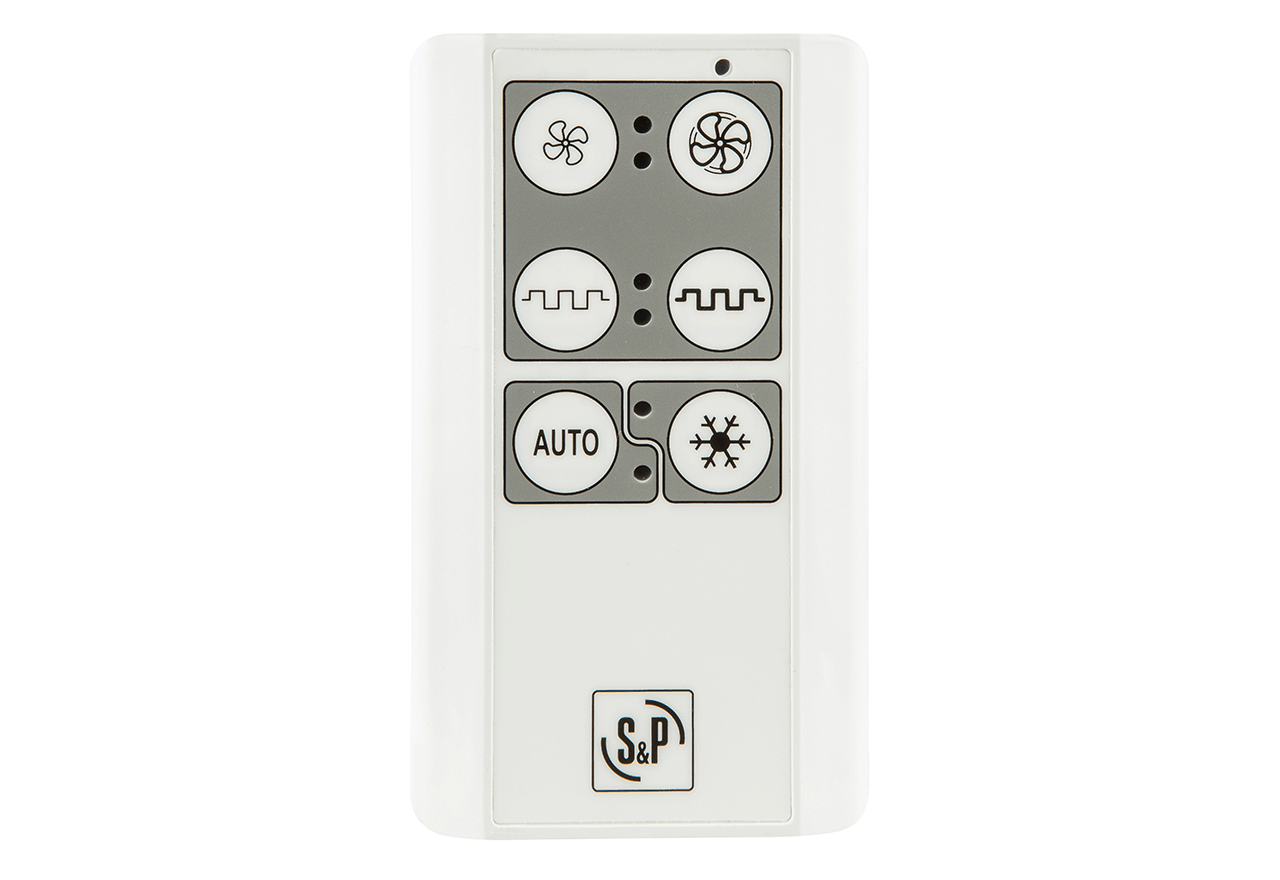

Remote control
The remote control makes it easy and convenient to operate your Thermex product. You don't even have to get up - Then it doesn't get any easier.
Specifications
Energy consumption [W]
9000
Luftmængde ved 0 Pascal [m3/t]
2500
Control
Regulation
Material
White painted steel
Voltage [V]
400
Weight and measurements
Maximum width [mm]
1686
Maximum depth [mm]
250
Maximum height [mm]
210
Packaging width(mm)
1860
Packaging depth [mm]
320
Packaging height(mm)
295
Net weight [kg]
18
Weight
19.5
Features
Control
Regulation
Technical specifications
Energy consumption [W]
9000
Lufthastighed
10
Luftmængde ved 0 Pascal [m3/t]
2500
Maximum sound pressure at 3 meters [dB(A)]
50
Voltage [V]
400
Other specifications
EAN
8413893789198
El-nummer
9978857962
BodyColor
White
Material
White painted steel
Downloads
Here you will find all documents relevant to this product
