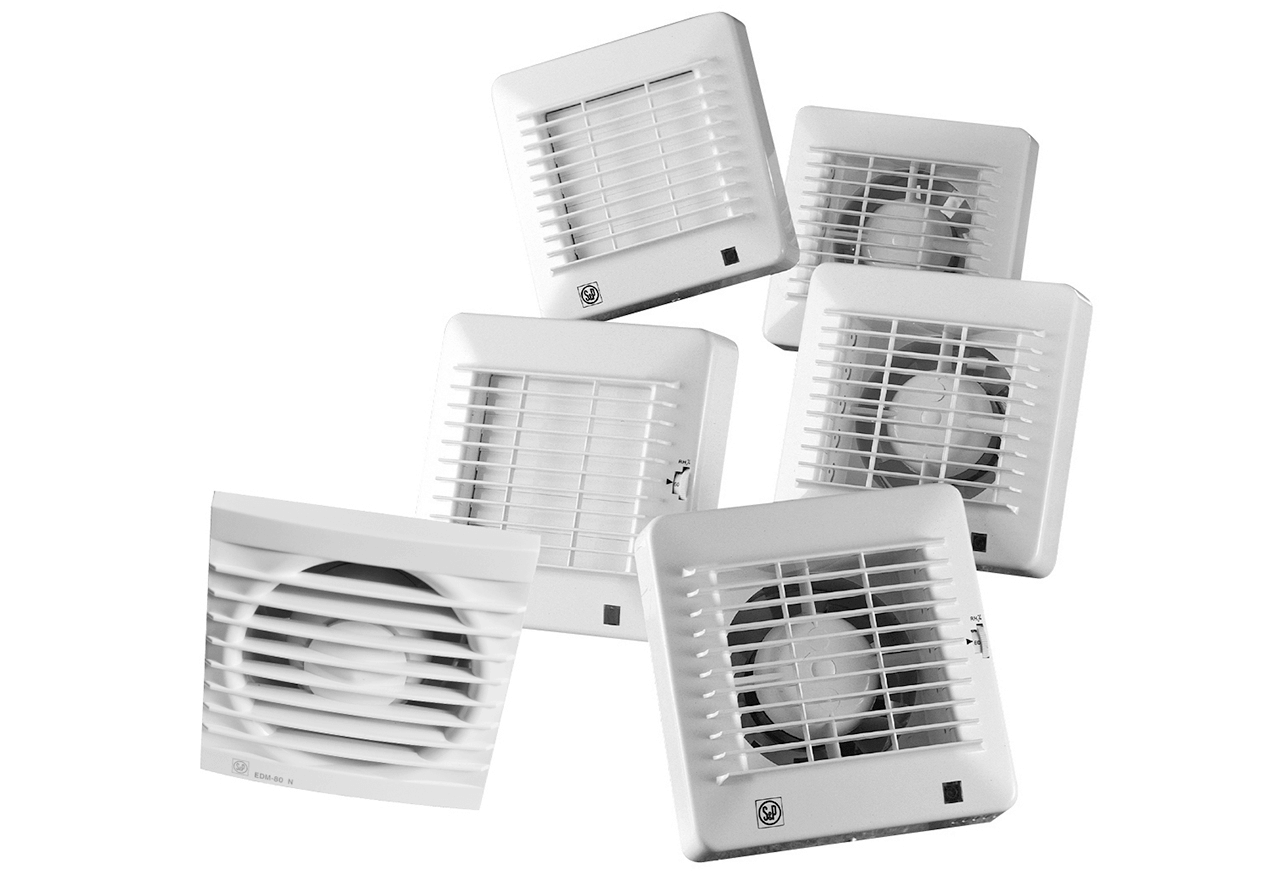

Thermex EDM 100 CVM Scandic

205.34.1000.2
Quiet fans for bathrooms, toilets and other smaller rooms. Extraction through wall, ceiling or duct
Options
Please select variant!

Quiet fans for bathrooms, toilets and other smaller rooms. Extraction through wall, ceiling or duct. These fans can be supplied in different versions. Among other things. automatic opening and closing of internal blinds and with electronic timer (8 min.). All models are made of ABS plastic.

Specifications

Energy consumption [W]
13
Luftmængde ved 0 Pascal [m3/t]
95
Kapslingsklasse
IP44
Control
None
Material
Plastic
Voltage [V]
230

Cord pull

Cord pull is the classic and simple on/off function found in many fans. When you pull the cord, the fan turns on. And if you pull one more time, it turns off. Quite simple.

Window installation

The fan is intended for installation in a window. It can, for example, be an option if you want to avoid making a hole in the wall, or if you already have a fan mounted in a window.

Read more

Automatic close

Automatic closing means that the product has built-in electronically closing slats. This ensures that there is a tight seal against cold and water from the outside.

Specifications

Energy consumption [W]
13
Luftmængde ved 0 Pascal [m3/t]
95
Kapslingsklasse
IP44
Control
None
Material
Plastic
Voltage [V]
230

Weight and measurements

Maximum width [mm]
155
Maximum depth [mm]
98
Maximum height [mm]
155
Aftræksdimension (mm)
Ø100
Packaging width(mm)
160
Packaging depth [mm]
127
Packaging height(mm)
163
Net weight [kg]
0.8
Weight
0.9

Features

Control
None
Eftersug
Nej
Fugtsensor
Nej

Technical specifications

Energy consumption [W]
13
Kapslingsklasse
IP44
Luftmængde ved 0 Pascal [m3/t]
95
Maximum sound pressure at 3 meters [dB(A)]
40
SEL-værdi
0
Voltage [V]
230

Other specifications

EAN
8413893032799
El-nummer
9978864081
VVS-nummer
353570107
BodyColor
White
Material
Plastic
Fan speed [rpm]
2450

Downloads

Here you will find all documents relevant to this product

Product info

Capacity

Dimensional drawing

Installation manual
