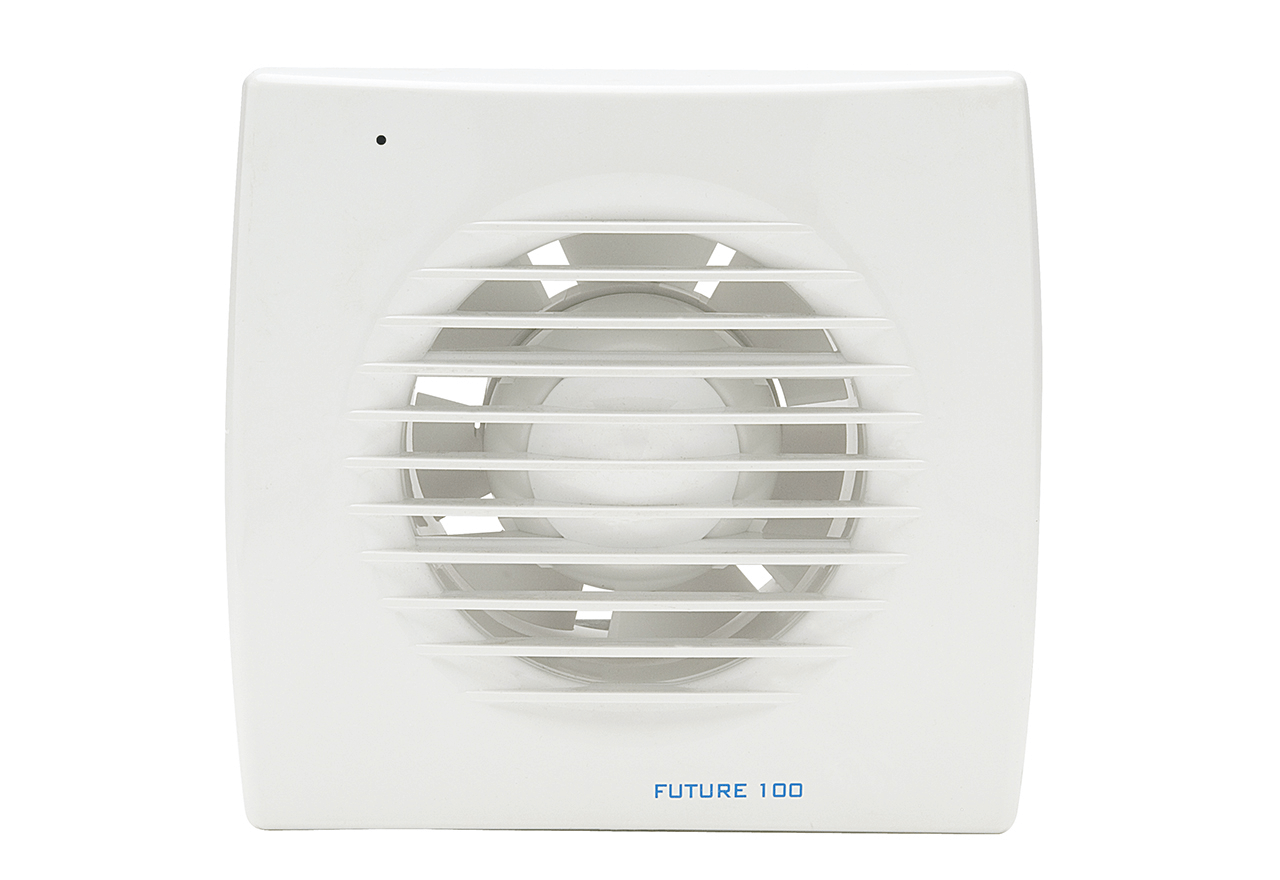

Future 100 - Timer controlled, adjustable

200.34.2501.2
Thermex Future is a fan that places great emphasis on appearance without compromising on function
Options
Please select variant!

When developing the Future fan series, great emphasis was placed on appearance without compromising on function. In relation to the capacity, the series is a very quiet and discreet ventilation solution. The timer controls the desired time from when the light is switched off until the fan stops. The hygrostat control starts the fan when the relative humidity exceeds the desired level and switches off the fan when the humidity is brought down below the selected level. For the model with both timer and hygrostat control, the hygrostat control is the primary control. The fan will therefore start regardless of whether the light is on or not, as long as there is power to the fan.

  • Built-in timer

Specifications

Energy consumption [W]
13
Luftmængde ved 0 Pascal [m3/t]
95
Kapslingsklasse
IPX4
Control
None
Material
Plastic
Voltage [V]
230

Timer function

With the timer function, the product continues to extract for a short period after you would normally switch it off. In this way, you are sure that you have ventilated thoroughly. It helps to ensure a good indoor climate.

Specifications

Energy consumption [W]
13
Luftmængde ved 0 Pascal [m3/t]
95
Kapslingsklasse
IPX4
Control
None
Material
Plastic
Voltage [V]
230

Weight and measurements

Maximum width [mm]
158
Maximum depth [mm]
85
Maximum height [mm]
158
Aftræksdimension (mm)
Ø100
Packaging width(mm)
168
Packaging depth [mm]
90
Packaging height(mm)
168
Net weight [kg]
0.7
Weight
0.8

Features

Control
None
Eftersug
Ja
Fugtsensor
Nej

Technical specifications

Energy consumption [W]
13
Kapslingsklasse
IPX4
Luftmængde ved 0 Pascal [m3/t]
95
Maximum sound pressure at 3 meters [dB(A)]
40
SEL-værdi
0
Maximum-Soundpower [dB(A)]
40
Voltage [V]
230

Other specifications

EAN
8413893152565
El-nummer
9978858039
BodyColor
White
Material
Plastic
Fan speed [rpm]
2500

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual
