Thermex EDM 100 C 12v Scandic

200.34.0120.0

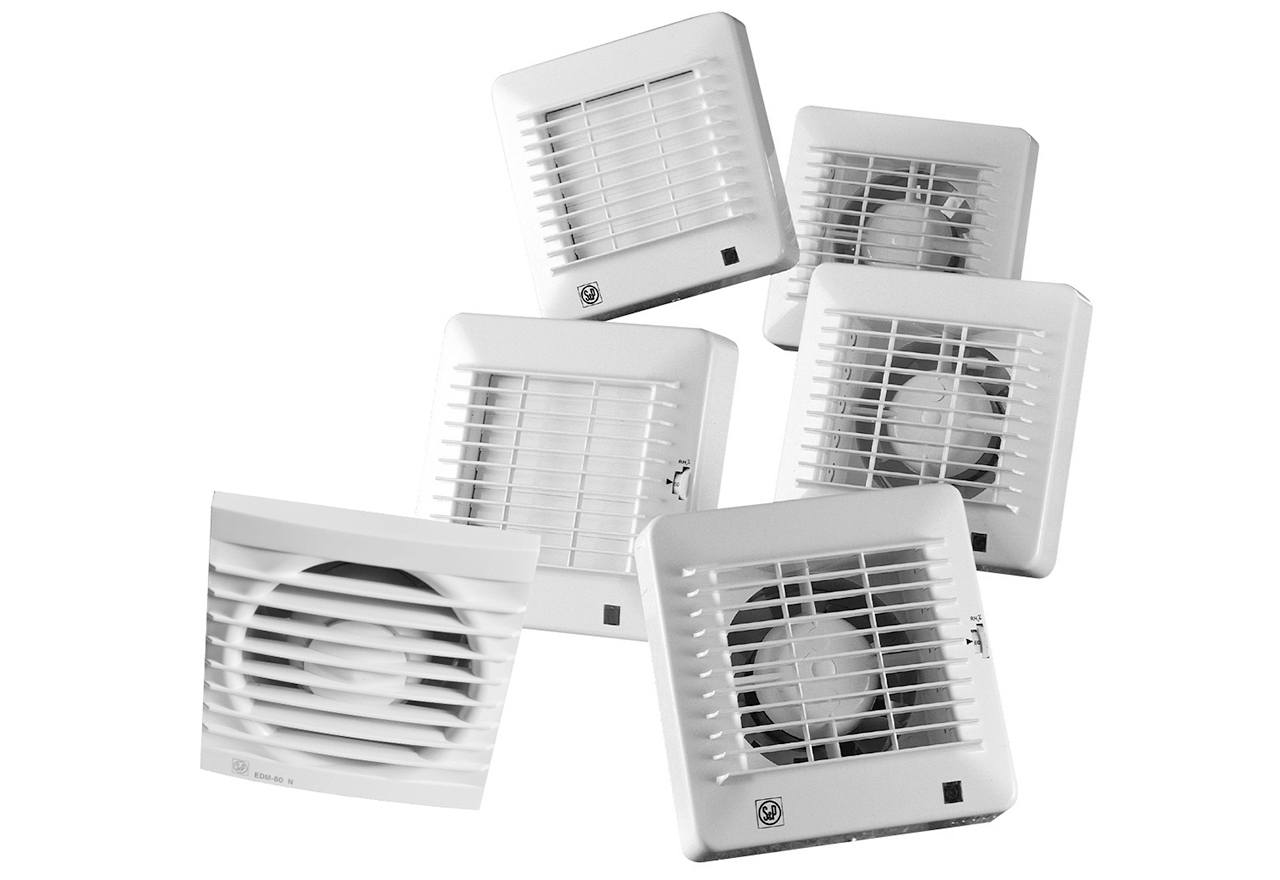

Thermex EDM 100 C 12v Scandic is a quiet ventilator for bathrooms, toilets and other smaller rooms. Extraction through wall, ceiling or duct.

Quiet fans for bathrooms, toilets and other smaller rooms. Extraction through wall, ceiling or duct. These fans can be supplied in several designs. Among other things. automatic opening and closing of internal blinds and with electronic timer (8 min.). All models are made of ABS plastic.

Specifications

Energy consumption [W]
7
Luftmængde ved 0 Pascal [m3/t]
85
Kapslingsklasse
IP57
Material
Plastic
Voltage [V]
12

Specifications

Energy consumption [W]
7
Luftmængde ved 0 Pascal [m3/t]
85
Kapslingsklasse
IP57
Material
Plastic
Voltage [V]
12

Weight and measurements

Maximum width [mm]
155
Maximum depth [mm]
98
Maximum height [mm]
155
Aftræksdimension (mm)
Ø100
Packaging width(mm)
160
Packaging depth [mm]
105
Packaging height(mm)
163
Net weight [kg]
0.55
Weight
0.65

Features

Eftersug
Nej
Fugtsensor
Nej

Technical specifications

Energy consumption [W]
7
Kapslingsklasse
IP57
Luftmængde ved 0 Pascal [m3/t]
85
Maximum sound pressure at 3 meters [dB(A)]
37
SEL-værdi
0
Voltage [V]
12

Other specifications

EAN
8413893061355
El-nummer
9978864036
VVS-nummer
353570130
BodyColor
White
Material
Plastic
Fan speed [rpm]
2100

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual
