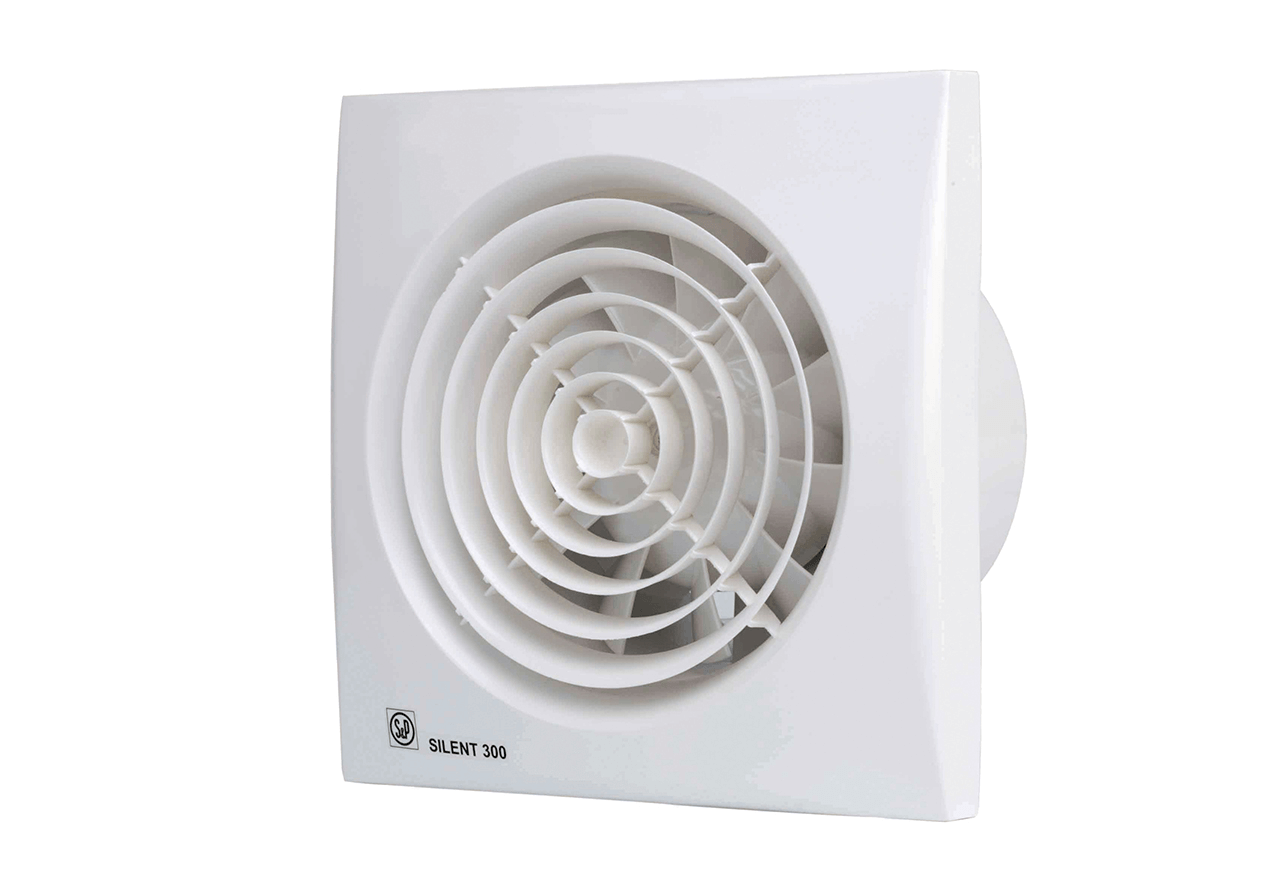

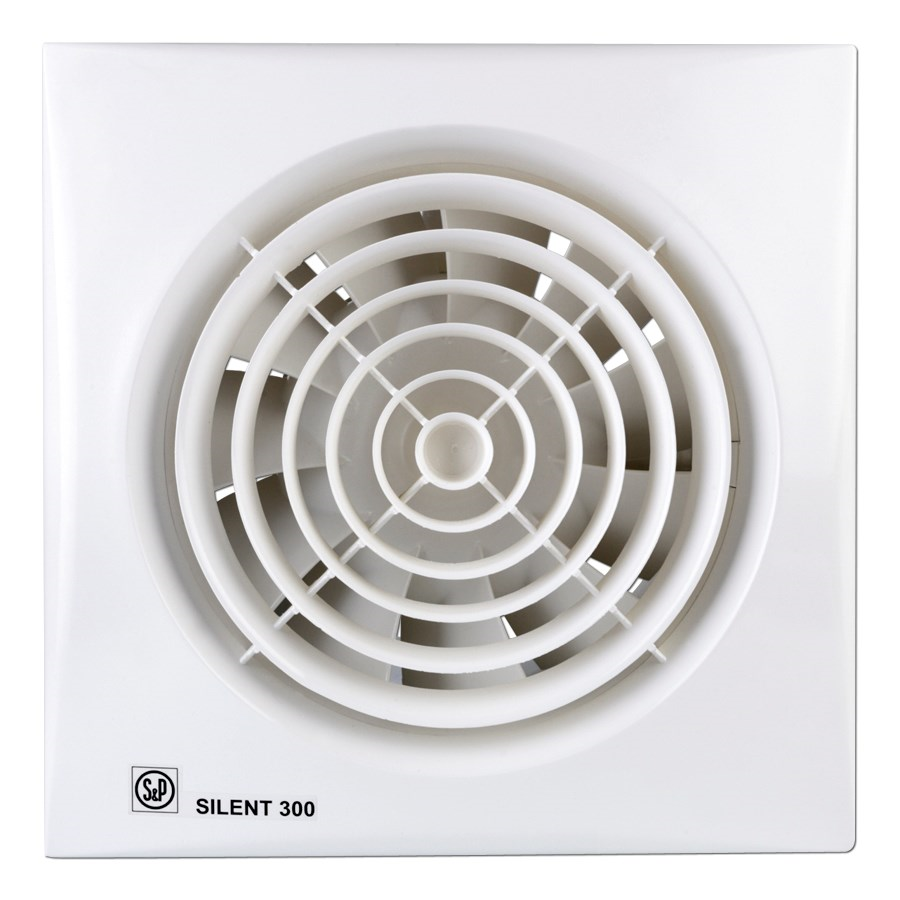

Silent 200 CZ

200.34.3302.2

Thermex Silent 200-300 Scandic is particularly suitable for toilets, bathrooms and other smaller rooms.

Options
Please select variant!

Quiet bathroom fan that can be supplied with a built-in hygrostat and electronic timer. Thermex Silent 200-300 Scandic is particularly suitable for toilets, bathrooms and other smaller rooms.

Specifications

Energy consumption [W]
29
Luftmængde ved 0 Pascal [m3/t]
280
Kapslingsklasse
IP45
Control
None
Material
Plastic
Voltage [V]
230
See all specifications

Wind stop

Wind stops ensure that there is no draft when the product is not in operation. It is a simple damper that opens when the product is switched on and lets cold air out when the product is switched off.

Read more

Timer function

With the timer function, the product continues to extract for a short period after you would normally switch it off. In this way, you are sure that you have ventilated thoroughly. It helps to ensure a good indoor climate.

Specifications

Energy consumption [W]
29
Luftmængde ved 0 Pascal [m3/t]
280
Kapslingsklasse
IP45
Control
None
Material
Plastic
Voltage [V]
230

Weight and measurements

Maximum width [mm]
214
Maximum depth [mm]
149
Maximum height [mm]
214
Aftræksdimension (mm)
Ø150
Packaging width(mm)
240
Packaging depth [mm]
240
Packaging height(mm)
150
Net weight [kg]
0.6
Weight
0.65

Features

Control
None
Timer funktion
Ja
Fugtsensor
Nej

Technical specifications

Energy consumption [W]
29
Kapslingsklasse
IP45
Luftmængde ved 0 Pascal [m3/t]
280
Maximum sound pressure at 3 meters [dB(A)]
32
SEL-værdi
0
Voltage [V]
230

Other specifications

EAN
8413893204998
BodyColor
White
Material
Plastic
Fan speed [rpm]
1700

Downloads

Here you will find all documents relevant to this product

Product info

Capacity

Dimensional drawing

Installation manual
