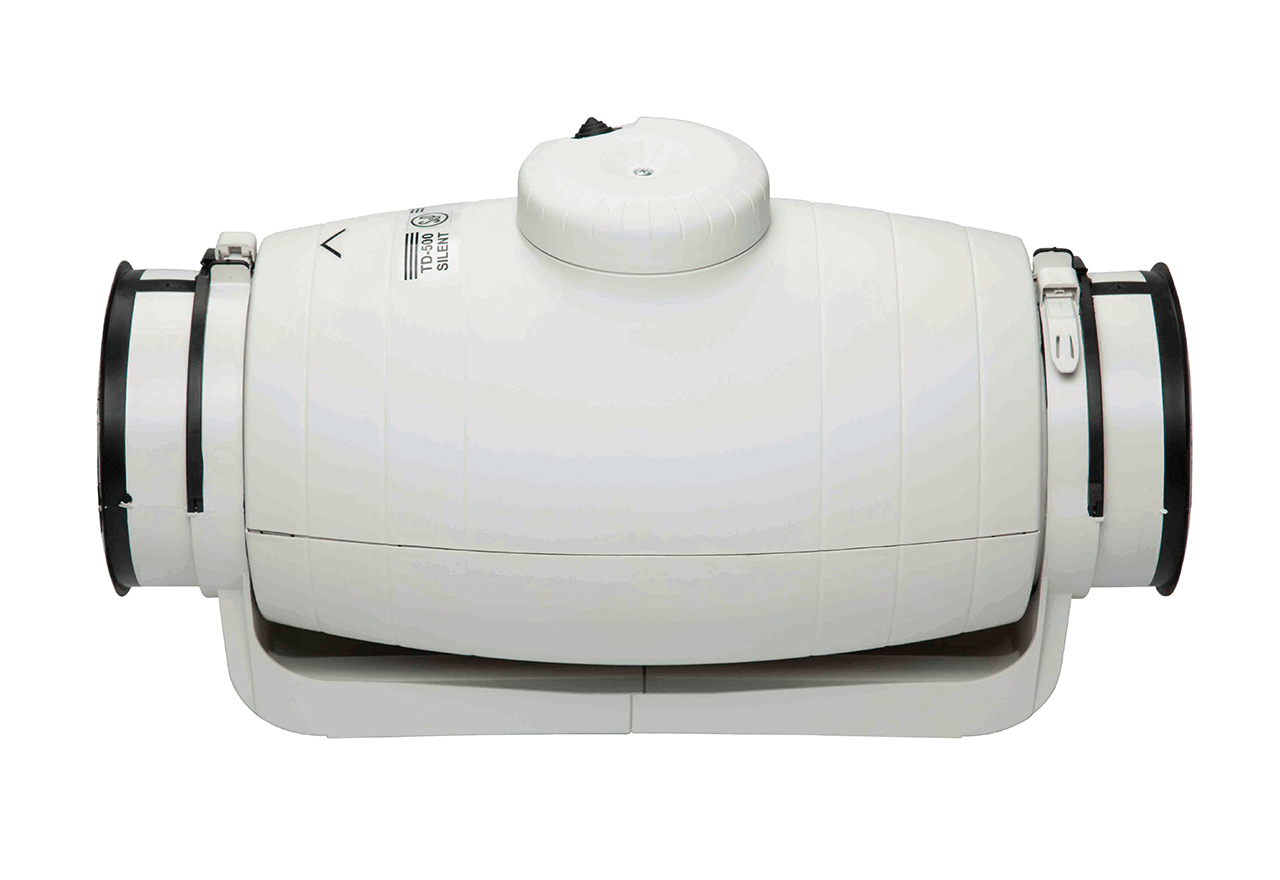

Thermex Kanalv TD 250/100 Scandic

210.34.3425.2
Thermex TD-Silent Scandic is, with its sound level as low as 24 dB(A), the world's quietest fan in its class
Connection diameter
Please select variant!

The Thermex TD-Silent Scandic is, with its sound level as low as 24 dB(A), the world's quietest fan in its class. Thanks to large investments, both financially and in terms of time, it has been possible to manufacture this duct fan, which is distinguished by an extremely low sound level. Up to 12 dB(A) lower sound level than similar products on the market.

Thermex TD-Silent Scandic technology is based on the very best in noise insulation material, at the same time Thermex TD-Silent Scandic is very easy to service, as the motor can be removed without separating the fan from the pipe system. Thermex TD-Silent Scandic is IP44 classified.

Specifications

Energy consumption [W]
27
Luftmængde ved 0 Pascal [m3/t]
250
Kapslingsklasse
IP44
Minimum sound pressure at 3 meters [dB(A)]
24
Control
None
Material
Plastic
Voltage [V]
230

Specifications

Energy consumption [W]
27
Luftmængde ved 0 Pascal [m3/t]
250
Kapslingsklasse
IP44
Minimum sound pressure at 3 meters [dB(A)]
24
Control
None
Material
Plastic
Voltage [V]
230

Weight and measurements

Maximum width [mm]
575
Maximum depth [mm]
252
Maximum height [mm]
204
Aftræksdimension (mm)
Ø100
Net weight [kg]
1.5
Weight
1.6

Features

Control
None
Eftersug
Nej
Fugtsensor
Nej

Technical specifications

Energy consumption [W]
27
Kapslingsklasse
IP44
Luftmængde ved 0 Pascal [m3/t]
250
Minimum sound pressure at 3 meters [dB(A)]
24
Maximum sound pressure at 3 meters [dB(A)]
25
Voltage [V]
230

Other specifications

EAN
8413893376589
BodyColor
White
Material
Plastic
Fan speed [rpm]
2200

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual
