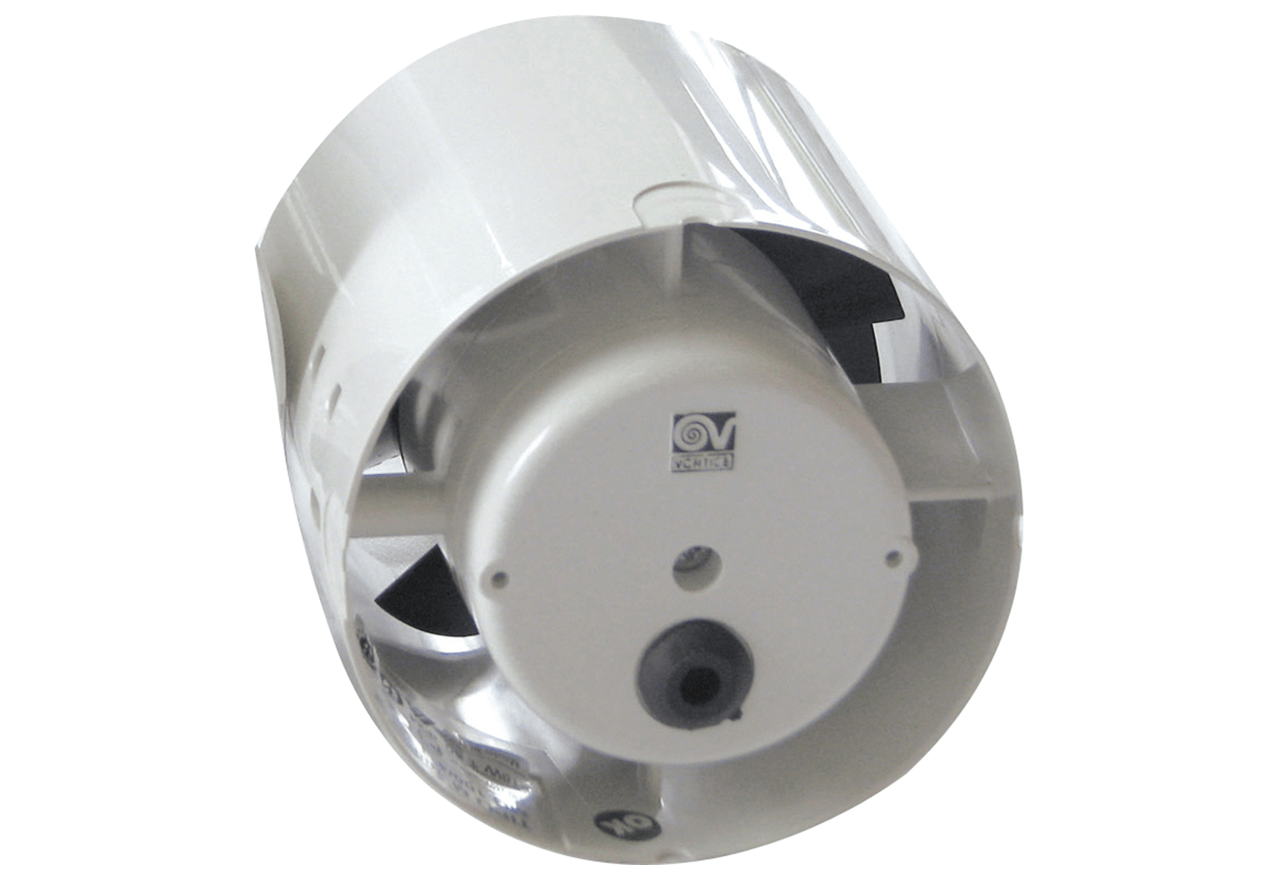

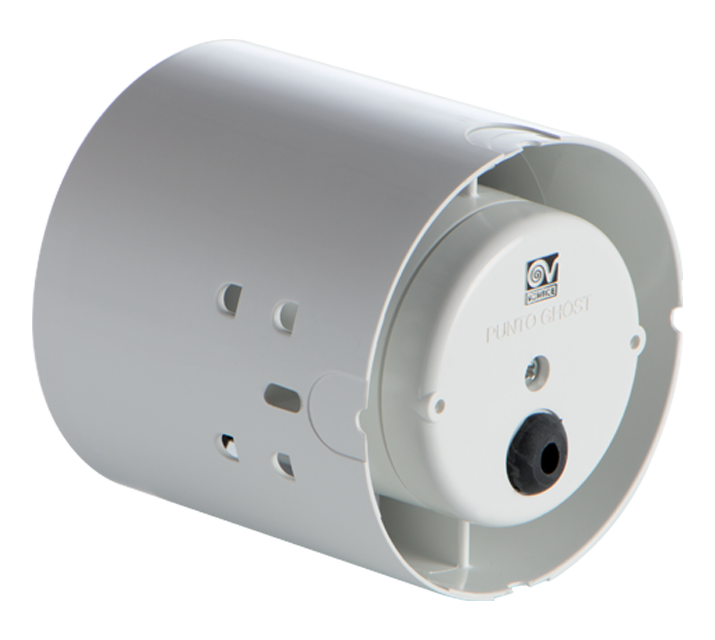

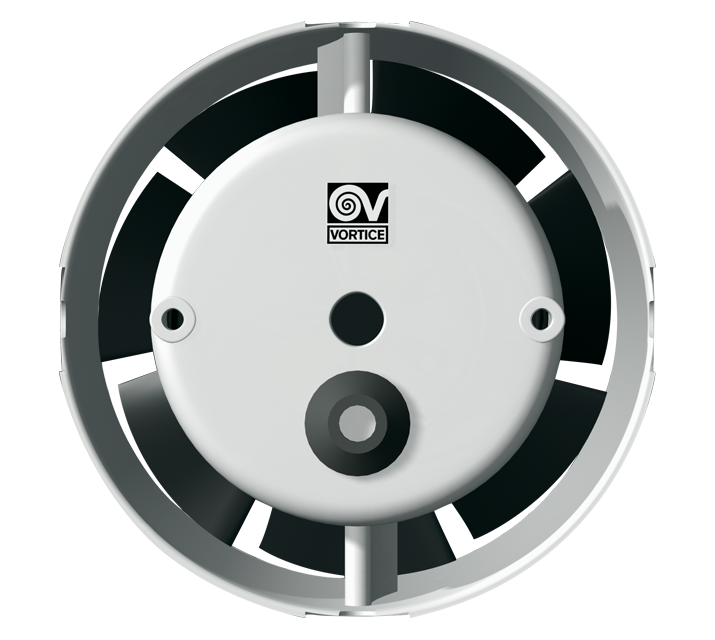

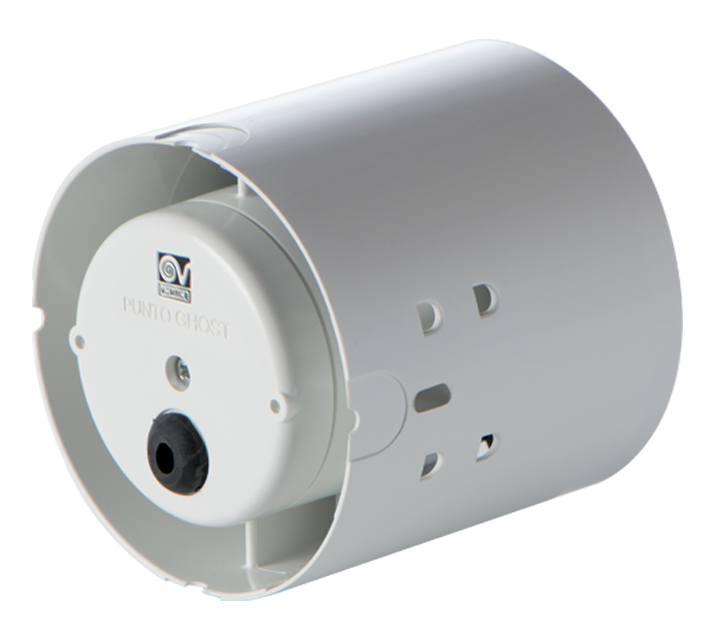

Punto Ghost MG 100/4

210.40.7100.2

Size: 100 mm.; Can be mounted in the wall or ceiling.; Area of application: Shower cabins, bathrooms and toilets.

Specifications

Energy consumption [W]
18
Luftmængde ved 0 Pascal [m3/t]
80
Kapslingsklasse
IPX4
Minimum sound pressure at 3 meters [dB(A)]
39
Material
Plastic

Specifications

Energy consumption [W]
18
Luftmængde ved 0 Pascal [m3/t]
80
Kapslingsklasse
IPX4
Minimum sound pressure at 3 meters [dB(A)]
39
Material
Plastic

Weight and measurements

Maximum width [mm]
99
Maximum depth [mm]
92
Maximum height [mm]
99
Aftræksdimension (mm)
Ø100
Packaging width(mm)
108
Packaging depth [mm]
110
Packaging height(mm)
110
Net weight [kg]
0.43
Weight
0.45

Features

Eftersug
Nej
Fugtsensor
Nej

Technical specifications

Energy consumption [W]
18
Power supply [V]
230
Kapslingsklasse
IPX4
Luftmængde ved 0 Pascal [m3/t]
80
Minimum sound pressure at 3 meters [dB(A)]
39
Maximum sound pressure at 3 meters [dB(A)]
39

Other specifications

EAN
8010300111001
El-nummer
9978862818
VVS-nummer
353569210
BodyColor
White
Material
Plastic
Fan speed [rpm]
2415

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual
