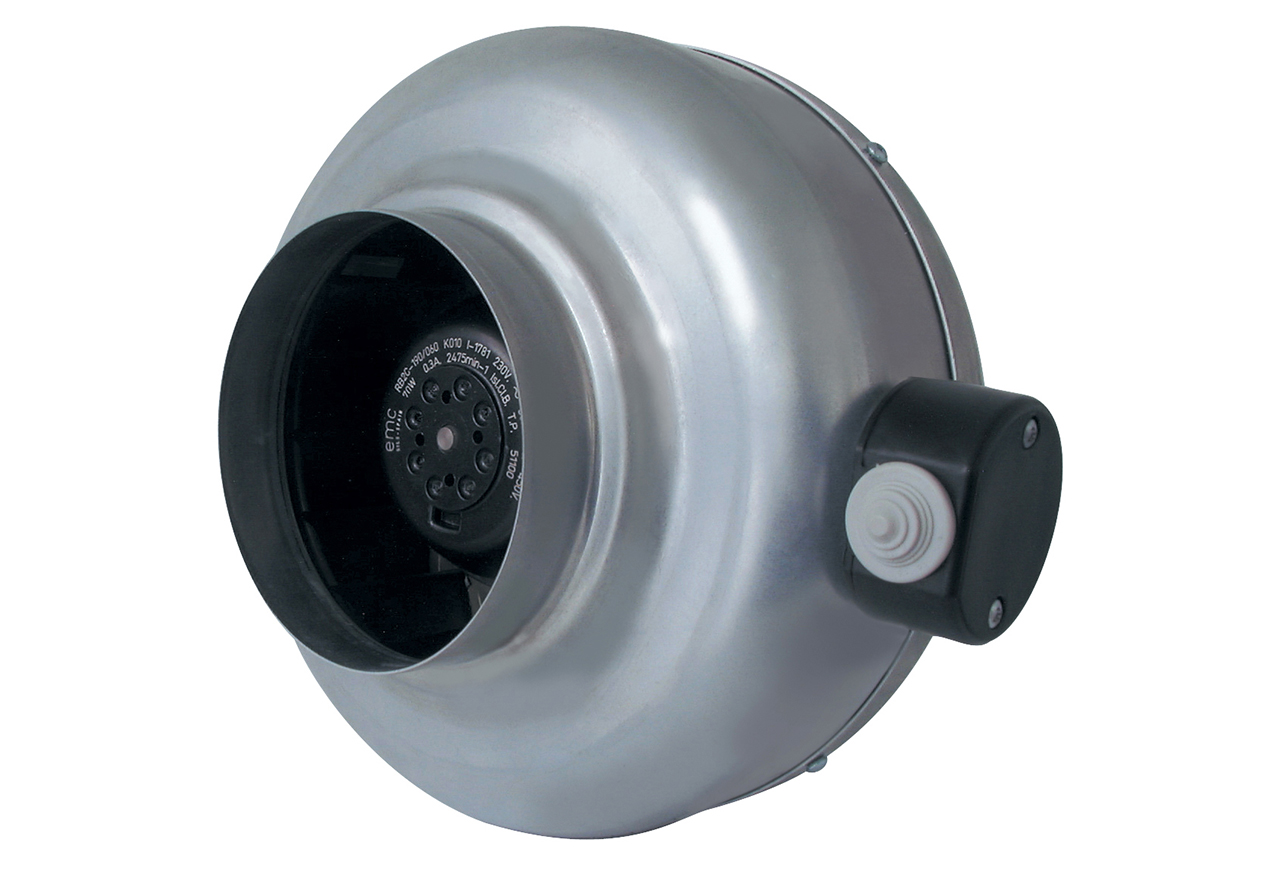

Rørvent 100 NK

225.34.2101.2
Size
Please select variant!

Duct fan intended for installation on fixed pipes.; It is suitable for several types of extraction, but especially for extraction from toilets or bathrooms.

Specifications

Energy consumption [W]
61
Luftmængde ved 0 Pascal [m3/t]
290
Kapslingsklasse
IP44
Material
Stainless steel

Specifications

Energy consumption [W]
61
Luftmængde ved 0 Pascal [m3/t]
290
Kapslingsklasse
IP44
Material
Stainless steel

Weight and measurements

Maximum width [mm]
243
Maximum depth [mm]
195
Maximum height [mm]
243
Aftræksdimension (mm)
Ø100
Packaging width(mm)
360
Packaging depth [mm]
240
Packaging height(mm)
360
Net weight [kg]
3
Weight
3.5

Features

Eftersug
Nej
Fugtsensor
Nej

Technical specifications

Energy consumption [W]
61
Kapslingsklasse
IP44
Luftmængde ved 0 Pascal [m3/t]
290
Maximum sound pressure at 3 meters [dB(A)]
44
Maximum-Soundpower [dB(A)]
54

Other specifications

EAN
8413893862143
BodyColor
Stainless steel
Material
Stainless steel
Max air temperature (° C)
60
Fan speed [rpm]
2600

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing
