/Ventilation/Vent315NK_cap.PNG "Pipe vent 315 NK")

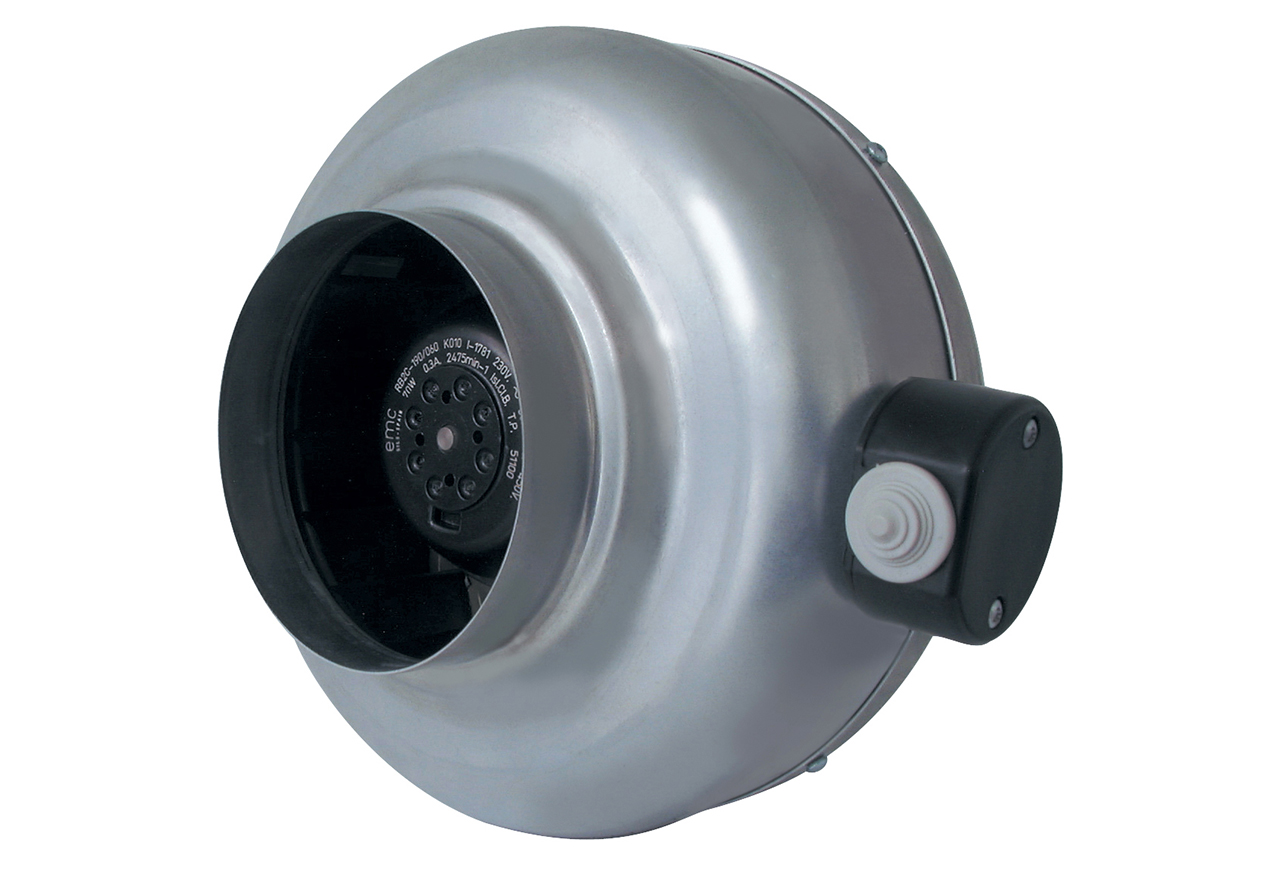

Pipe vent 315 NK
225.34.2315.2
Size
Duct fan intended for installation on fixed pipes.; It is suitable for several types of extraction, but especially for extraction from toilets or bathrooms.
Specifications
Energy consumption [W]
257
Luftmængde ved 0 Pascal [m3/t]
1370
Kapslingsklasse
IP44
Material
Stainless steel
Specifications
Energy consumption [W]
257
Luftmængde ved 0 Pascal [m3/t]
1370
Kapslingsklasse
IP44
Material
Stainless steel
Weight and measurements
Maximum width [mm]
401
Maximum depth [mm]
232
Maximum height [mm]
401
Aftræksdimension (mm)
Ø315
Packaging width(mm)
500
Packaging depth [mm]
270
Packaging height(mm)
500
Net weight [kg]
8
Weight
8.75
Features
Eftersug
Nej
Fugtsensor
Nej
Technical specifications
Energy consumption [W]
257
Kapslingsklasse
IP44
Luftmængde ved 0 Pascal [m3/t]
1370
Maximum sound pressure at 3 meters [dB(A)]
48
Maximum-Soundpower [dB(A)]
64
Other specifications
EAN
8413893787293
BodyColor
Stainless steel
BodyColor (RAL)
0
Material
Stainless steel
Max air temperature (° C)
60
Fan speed [rpm]
2790
Downloads
Here you will find all documents relevant to this product
