Thermex TD 160/100Z kit Scandic

210.34.4216.2

Ventilation kit with many uses.; TD-160 are quiet and efficient duct fans.; TD-kit is a complete mounting kit that is particularly suitable for mounting on the ceiling for extraction from the toilet or bath.

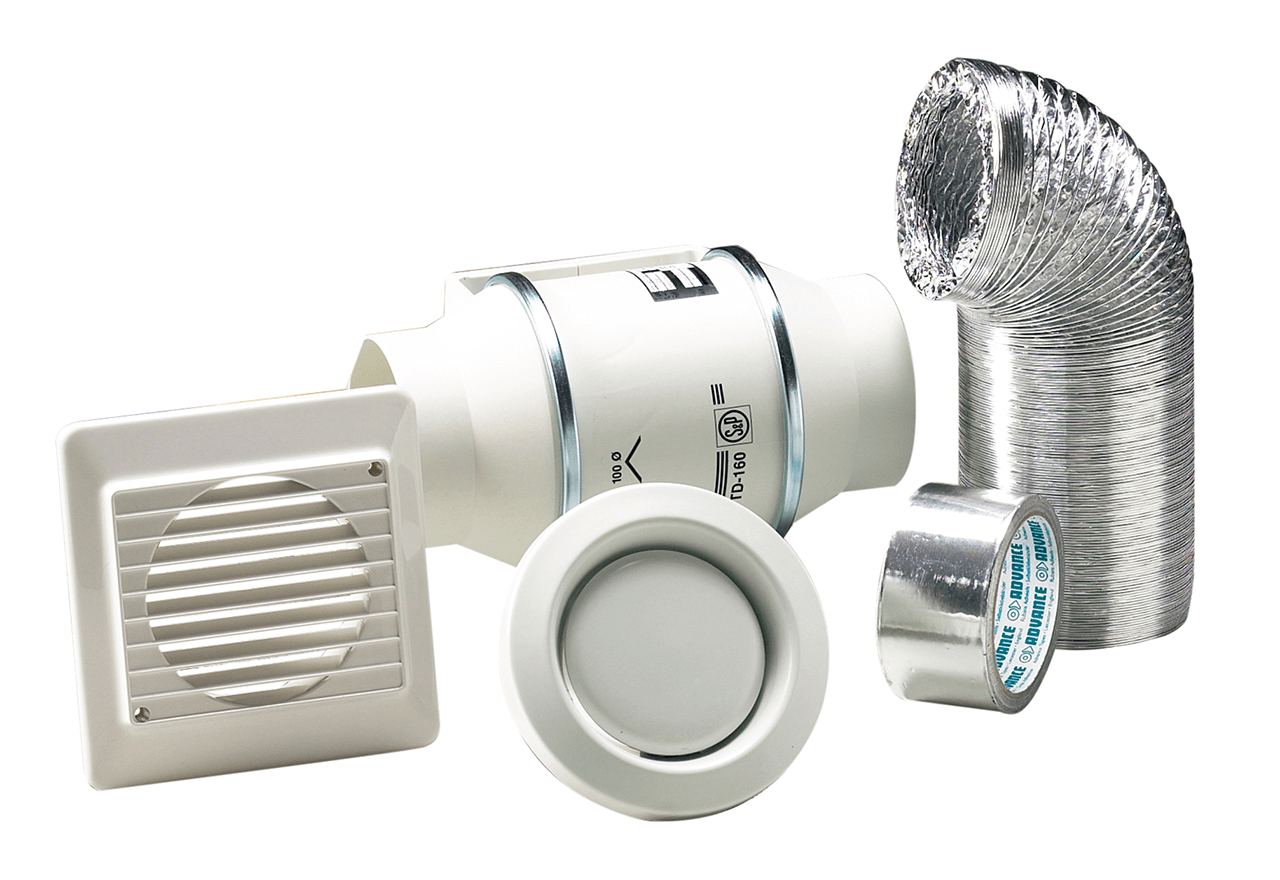

The TD kit is supplied complete with fan, ceiling valve, flexible hose (4 metres) and external grid.

Specifications

Energy consumption [W]
20
Luftmængde ved 0 Pascal [m3/t]
180
Kapslingsklasse
IP44
Minimum sound pressure at 3 meters [dB(A)]
24
Material
Plastic

Specifications

Energy consumption [W]
20
Luftmængde ved 0 Pascal [m3/t]
180
Kapslingsklasse
IP44
Minimum sound pressure at 3 meters [dB(A)]
24
Material
Plastic

Weight and measurements

Maximum width [mm]
232
Maximum depth [mm]
151
Maximum height [mm]
136
Aftræksdimension (mm)
Ø100
Packaging width(mm)
410
Packaging depth [mm]
160
Packaging height(mm)
375
Net weight [kg]
1.9
Weight
2.6

Features

Eftersug
Nej
Fugtsensor
Nej

Technical specifications

Energy consumption [W]
20
Power supply [V]
230
Kapslingsklasse
IP44
Luftmængde ved 0 Pascal [m3/t]
180
Minimum sound pressure at 3 meters [dB(A)]
24
Maximum sound pressure at 3 meters [dB(A)]
24

Other specifications

EAN
8413893105523
BodyColor
White
BodyColor (RAL)
0
Material
Plastic
Fan speed [rpm]
2500

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing
