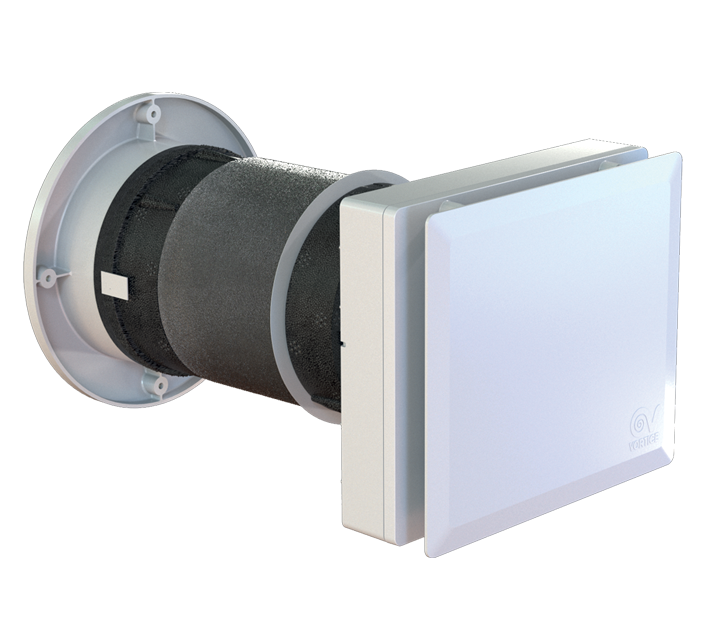

HRW Ø160 Multicom with remote control - Heat recovery

760.40.1045.2

Good for the indoor climate in all rooms
Thermex HRW Ø160 Multicom is suitable for all rooms in the house to ensure a good and healthy indoor climate. In addition, the establishment of several fans in several rooms can be connected wirelessly.

Connection diameter
Incl. Remote control
Please select variant!


Ventilation with heat recovery ensure a healthy indoor climate
Ventilation in the home is necessary to avoid mould, fungus and rot and to reduce the amount of radon gas. A bad indoor climate rhymes with fatigue, headaches, nausea and serious respiratory diseases. Ventilation contributes to achieving a healthy indoor climate for the house's residents.
The solution can consist of an ordinary fan that only draws the air out, or a central heat recovery system. It is often expensive to acquire and install, because valves must be set up and piping must be established in the home. A good and well-functioning alternative is decentralized ventilation with heat recovery – an effective solution for a better home with a healthy indoor climate.

Ventilation with heat recovery
Thermex HRW Ø100/Ø160 Multicom creates an ideal indoor air with interval intake and exhaust. The cold air from outside is heated by the heat exchanger before it is blown into the room.

Venting
The Thermex HRW Ø100/Ø160 Multicom can transport the air from the room out into the open if you need ventilation due to a bad smell, fog, moisture or too much heat.

Fresh air supply
Thermex HRW Ø100/Ø160 Multicom can draw fresh air into the room. The heat exchanger ensures that the fresh air is heated with the heat from inside.

Good for the indoor climate in all rooms
Thermex HRW Ø100/Ø160 Multicom is suitable for all rooms in the house to ensure a good and healthy indoor climate. In addition, the establishment of several fans in several rooms can be connected wirelessly. Thereby, they can form a complete ventilation system that is installed decentralized. This means that you avoid pulling complicated pipes and ducts as for a conventional ventilation system.

Specifications

Energy consumption [W]
6.5
Luftmængde ved 0 Pascal [m3/t]
38
Kapslingsklasse
IPX4
Minimum lydeffekt [dB(A)]
36
Minimum sound pressure at 3 meters [dB(A)]
19
Control
Push buttons
Material
Plastic
Voltage [V]
230

Specifications

Energy consumption [W]
6.5
Luftmængde ved 0 Pascal [m3/t]
38
Kapslingsklasse
IPX4
Minimum lydeffekt [dB(A)]
36
Minimum sound pressure at 3 meters [dB(A)]
19
Control
Push buttons
Material
Plastic
Voltage [V]
230

Weight and measurements

Maximum width [mm]
231
Maximum depth [mm]
283
Maximum height [mm]
200
Aftræksdimension (mm)
Ø160
Packaging width(mm)
250
Packaging depth [mm]
250
Packaging height(mm)
440
Net weight [kg]
3.3
Weight
5

Features

Control
Push buttons
Fugtsensor
Ja

Technical specifications

Energy consumption [W]
6.5
Kapslingsklasse
IPX4
Luftmængde ved 0 Pascal [m3/t]
38
Minimum sound pressure at 3 meters [dB(A)]
19
Maximum sound pressure at 3 meters [dB(A)]
32
Minimum lydeffekt [dB(A)]
36
SEL-værdi
544
Maximum-Soundpower [dB(A)]
49
Voltage [V]
230

Other specifications

EAN
8010300124445
El-nummer
9978877421
BodyColor
White
Material
Plastic
Max air temperature (° C)
30

Downloads

Here you will find all documents relevant to this product

Dimensional drawing

Installation manual

Exhaust fittings
