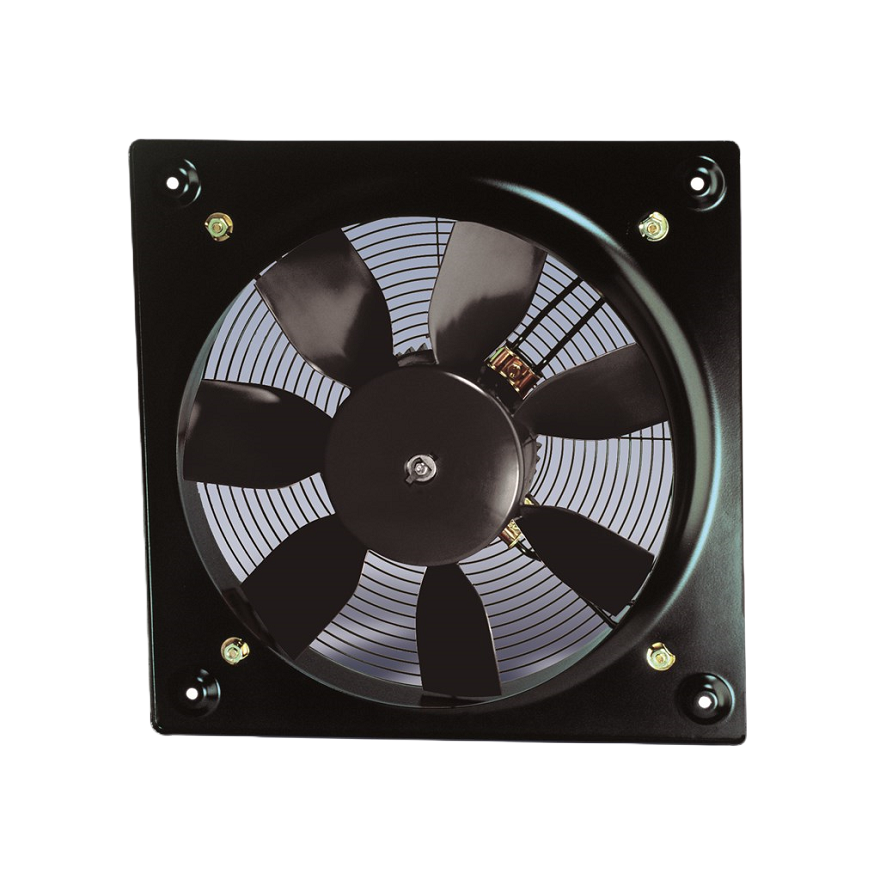

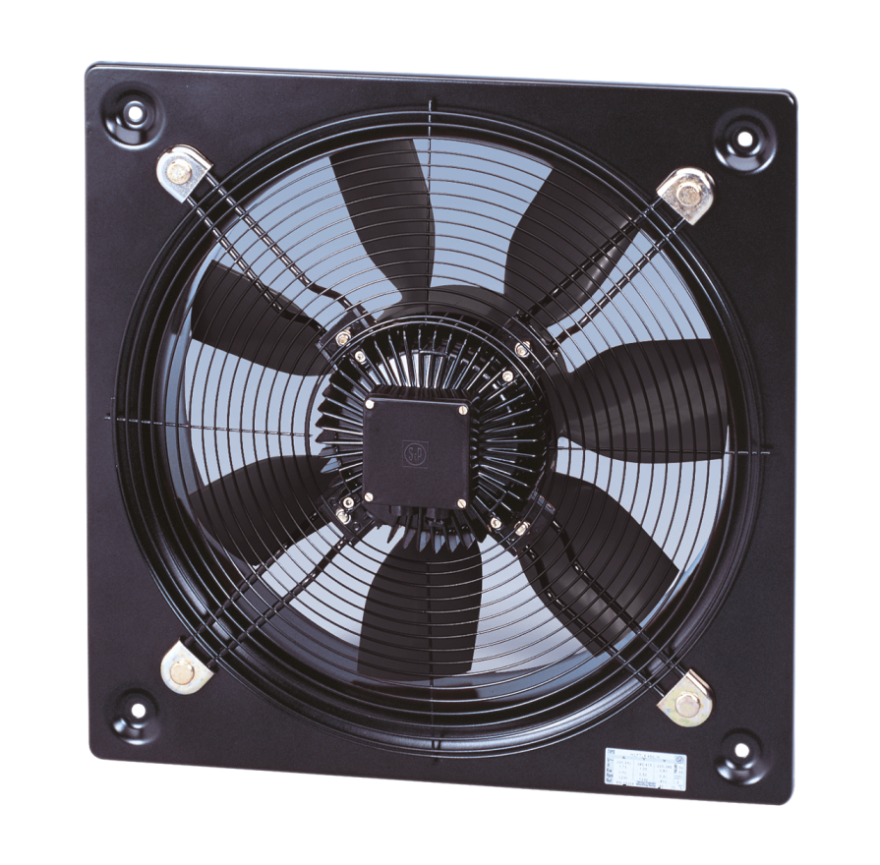

HC 315 with protective grid

250.34.3315.2
The HC 315 is a compact and robust axial fan that delivers high air performance and reliability. Ideal for industrial and commercial installations with requirements for efficient ventilation.
Size
Please select variant!

The HC 315 (HCFB/4-315/H) is a powerful and compact plate-mounted axial fan that ensures efficient ventilation in industrial and commercial environments. With its robust design and high reliability, it is ideal for installations where reliable air circulation is required.

Features:
Compact Construction: Low-profile design with direct-drive motor and factory-balanced blower wheel.
Corrosion protection: Mounting plate and engine mount with black polyester lacquer for long durability.
Flexible installation: Suitable for wall or panel mounting, standard air direction (motor over impeller).
Safety: Terminal box with PG-11 cable entry and protective grille.
Temperature range: Can handle air temperatures from -40°C to +70°C.

Specifications:
Connection: 230V, 50Hz
Power consumption: 125 W
Speeds: 1340 rpm
Air flow: 2,220 m³/h
Sound pressure: 55 dB(A) at 1.5 meters
Insulation class: F
Protection class: IP65
Material: Galvanised steel with black polyester coating
Weight: 7 kg
Dimensions: Ø315 mm (blowwheel), 400x400 mm (housing), depth approx. 122 mm

The HC 315 is a strong choice for professionals who want a reliable and efficient fan that combines compact design with high air output and flexible installation.

  • Compact galvanised steel construction with black polyester coating
  • Output: 2220 m³/h air flow rate at 1340 rpm
  • Protection class IP65 and insulation class F
  • Built-in protective grille for higher safety
  • Connectivity: 230V, 50Hz – Power consumption: 125W

Specifications

Energy consumption [W]
125
Luftmængde ved 0 Pascal [m3/t]
2220
Kapslingsklasse
IP65
Minimum sound pressure at 3 meters [dB(A)]
55
Control
None
Material
Black painted steel
Voltage [V]
230

Specifications

Energy consumption [W]
125
Luftmængde ved 0 Pascal [m3/t]
2220
Kapslingsklasse
IP65
Minimum sound pressure at 3 meters [dB(A)]
55
Control
None
Material
Black painted steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
400
Maximum depth [mm]
122
Maximum height [mm]
400
Aftræksdimension (mm)
Ø315
Packaging width(mm)
404
Packaging depth [mm]
210
Packaging height(mm)
404
Net weight [kg]
6.3
Weight
7.3

Features

Control
None
Timer funktion
Nej
Fugtsensor
Nej

Technical specifications

Energy consumption [W]
125
Kapslingsklasse
IP65
Luftmængde ved 0 Pascal [m3/t]
2220
Minimum sound pressure at 3 meters [dB(A)]
55
Maximum sound pressure at 3 meters [dB(A)]
55
Voltage [V]
230

Other specifications

EAN
8413893036780
El-nummer
9978867172
VVS-nummer
353590132
BodyColor
Black
Material
Black painted steel
Fan speed [rpm]
1340

Downloads

Here you will find all documents relevant to this product

Capacity

Dimensional drawing

Installation manual
