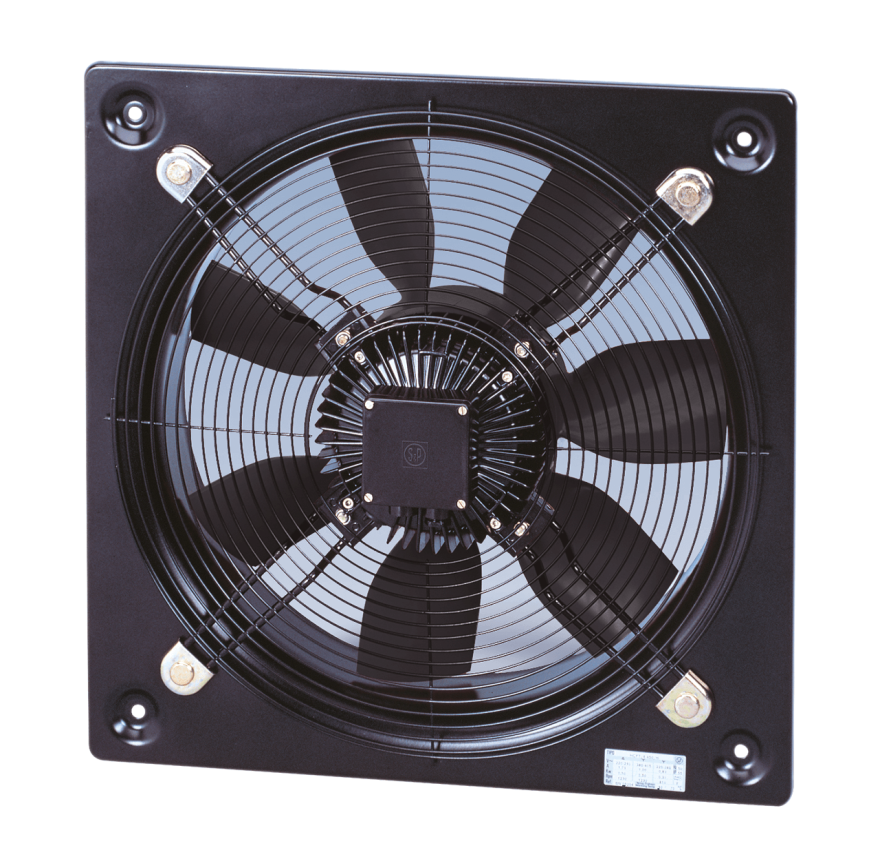

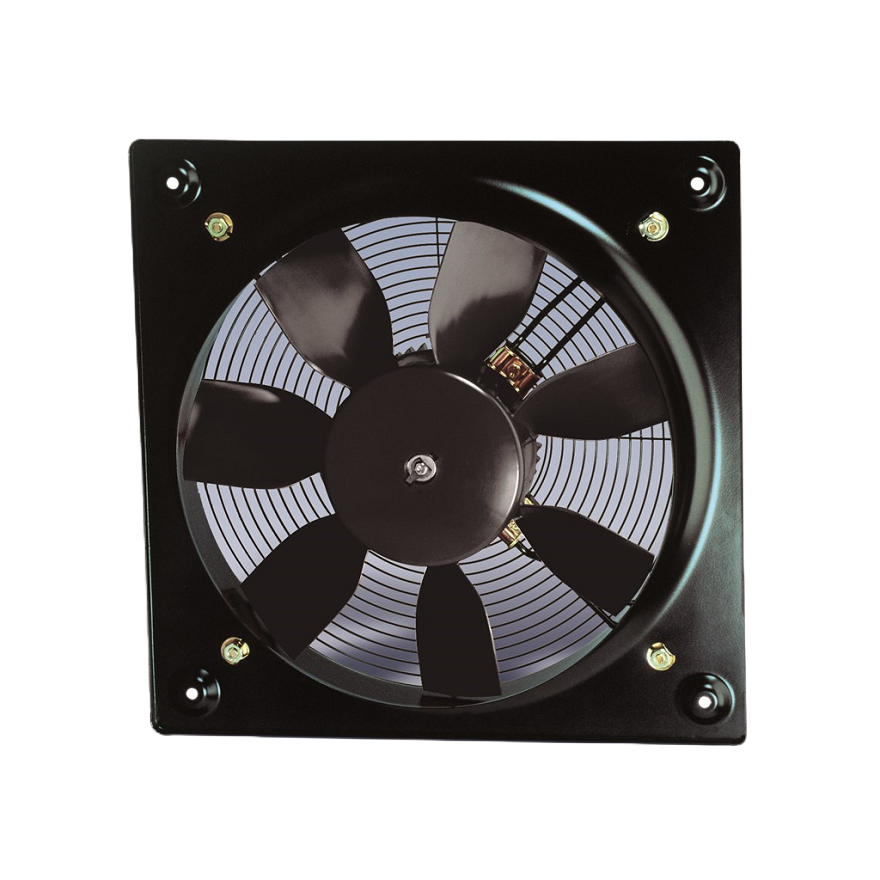

HC 355 with protective grid

250.34.3355.2
The HC 355 is a robust axial fan that combines compact design with high air output. Ideal for industry and business, where efficient ventilation and reliability are essential.
Size
Please select variant!

The HC 355 (HCFB/4-355/H) is a compact and powerful plate-mounted axial fan that ensures high performance in industrial and commercial environments. The fan is designed for reliability and easy installation, making it ideal for heavy-duty ventilation applications.

Features:
Compact construction: Robust design with direct-drive motor and factory-balanced blower wheel.
Corrosion protection: Mounting plate and engine mount treated with black polyester lacquer for increased durability.
Flexible installation: Suitable for wall or panel mounting with standard air direction (motor over impeller).
Safety: Supplied with terminal box and PG-11 cable entry as well as protective grille.
Temperature range: Can be used from -40 °C to +70 °C.

Specifications:
Connection: 230V, 50Hz
Power consumption: 168 W
Revolutions: 1415 rpm
Air flow: 3,470 m³/h
Sound pressure: 59 dB(A) at 1.5 meters
Insulation class: F
Protection class: IP65
Material: Galvanised steel with black polyester coating
Weight: 8 kg
Dimensions: Ø355 mm (blowwheel), 450x450 mm (housing), depth approx. 129 mm

The HC 355 is a solid choice for professionals who need an efficient and durable fan with high air output and easy integration into existing systems.

  • Compact galvanised steel construction with black polyester coating
  • Output: 3470 m³/h air flow rate at 1415 rpm
  • Protection class IP65 and insulation class F
  • Built-in protective grille for higher safety
  • Connectivity: 230V, 50Hz – Power consumption: 168W

Specifications

Energy consumption [W]
168
Luftmængde ved 0 Pascal [m3/t]
3470
Kapslingsklasse
IP65
Minimum sound pressure at 3 meters [dB(A)]
59
Control
None
Material
Black painted steel
Voltage [V]
230

Specifications

Energy consumption [W]
168
Luftmængde ved 0 Pascal [m3/t]
3470
Kapslingsklasse
IP65
Minimum sound pressure at 3 meters [dB(A)]
59
Control
None
Material
Black painted steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
450
Maximum depth [mm]
129
Maximum height [mm]
450
Aftræksdimension (mm)
Ø355
Packaging width(mm)
454
Packaging depth [mm]
215
Packaging height(mm)
454
Net weight [kg]
7.9
Weight
9

Features

Control
None
Timer funktion
Nej
Fugtsensor
Nej

Technical specifications

Energy consumption [W]
168
Kapslingsklasse
IP65
Luftmængde ved 0 Pascal [m3/t]
3470
Minimum sound pressure at 3 meters [dB(A)]
59
Maximum sound pressure at 3 meters [dB(A)]
59
Voltage [V]
230

Other specifications

EAN
8413893612694
El-nummer
9978867185
VVS-nummer
353590136
BodyColor
Black
Material
Black painted steel
Fan speed [rpm]
1415

Downloads

Here you will find all documents relevant to this product

Capacity

Dimensional drawing

Installation manual
