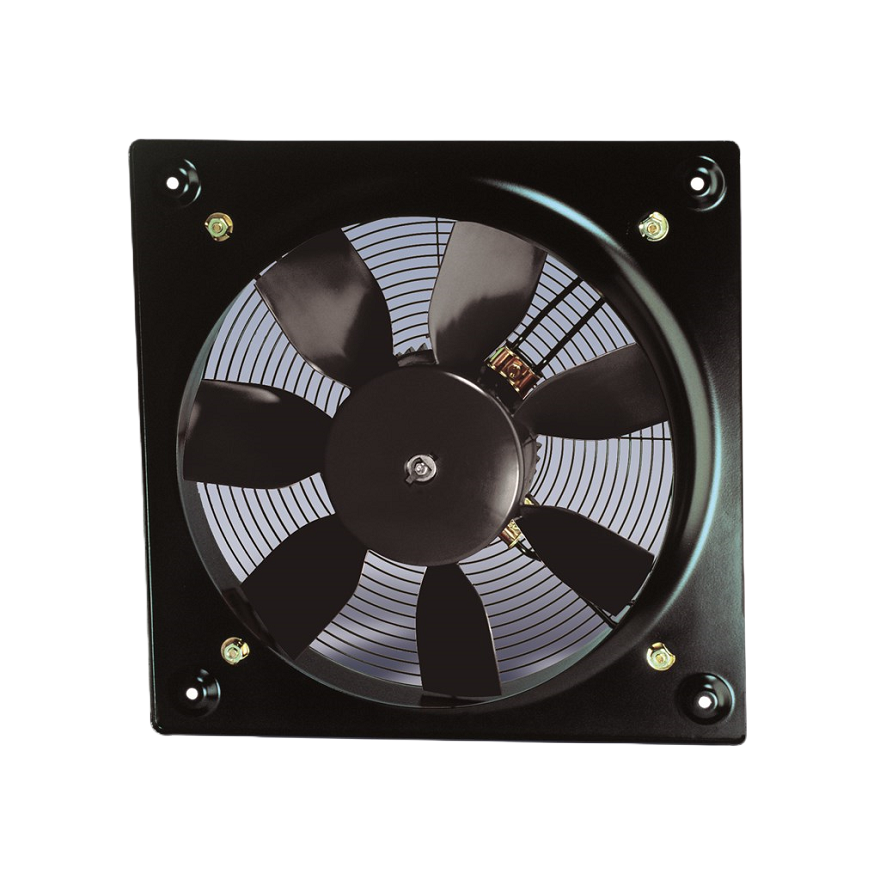

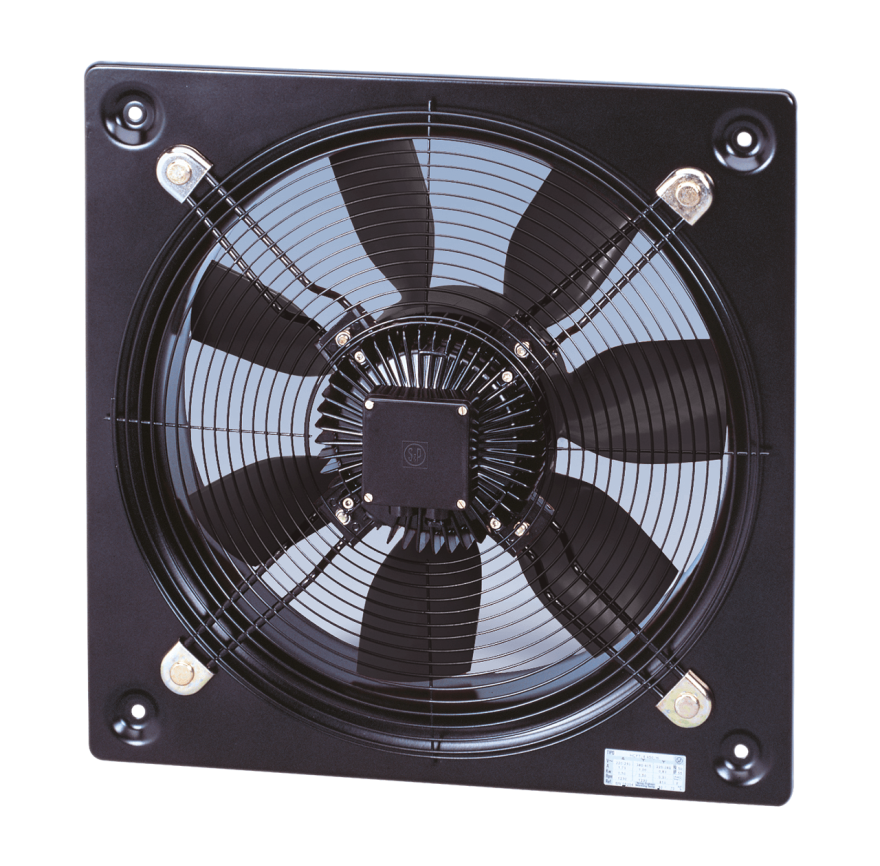

HC 400 with protective grid

250.34.3400.2
The HC 400 is a powerful axial fan, designed for heavy-duty installations. With high performance and robust construction, it ensures efficient ventilation in industrial and commercial environments.
Size
Please select variant!

The HC 400 (HCFB/4-400/H) is an efficient plate-mounted axial fan that combines high performance with a compact and reliable design. It is suitable for both industrial and commercial installations where reliable ventilation is required.

Features:
Compact design: Direct-drive motor with factory-balanced blower wheel ensures stable operation.
Corrosion protection: Surfaces protected with black polyester lacquer for long durability.
Flexible installation: Can be mounted in wall or panel, standard air direction (motor over impeller).
Safety: Terminal box with PG-11 cable entry and protective grille.
Temperature range: Can be used from -40 °C to +70 °C.

Specifications:
Connection: 230V, 50Hz
Power consumption: 271 W
Revolutions: 1420 rpm
Air flow: 4,920 m³/h
Sound pressure: 62 dB(A) at 1.5 meters
Insulation class: F
Protection class: IP65
Material: Galvanised steel with black polyester coating
Weight: 9 kg
Dimensions: Ø400 mm (blow wheel), 500x500 mm (housing), depth approx. 129 mm

The HC 400 is a reliable choice for companies looking for a strong ventilation solution with high air output, robust construction and a long service life.

  • Compact galvanised steel construction with black polyester coating
  • Output: 4920 m³/h air flow rate at 1420 rpm
  • Protection class IP65 and insulation class F
  • Built-in protective grille for higher safety
  • Connectivity: 230V, 50Hz – Power consumption: 271W

Specifications

Energy consumption [W]
271
Luftmængde ved 0 Pascal [m3/t]
4920
Kapslingsklasse
IP65
Minimum sound pressure at 3 meters [dB(A)]
62
Control
None
Material
Black painted steel
Voltage [V]
230

Specifications

Energy consumption [W]
271
Luftmængde ved 0 Pascal [m3/t]
4920
Kapslingsklasse
IP65
Minimum sound pressure at 3 meters [dB(A)]
62
Control
None
Material
Black painted steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
500
Maximum depth [mm]
129
Maximum height [mm]
500
Aftræksdimension (mm)
Ø400
Packaging width(mm)
504
Packaging depth [mm]
215
Packaging height(mm)
504
Net weight [kg]
9.2
Weight
10.3

Features

Control
None
Timer funktion
Nej
Fugtsensor
Nej

Technical specifications

Energy consumption [W]
271
Kapslingsklasse
IP65
Luftmængde ved 0 Pascal [m3/t]
4920
Minimum sound pressure at 3 meters [dB(A)]
62
Maximum sound pressure at 3 meters [dB(A)]
62
Voltage [V]
230

Other specifications

EAN
8413893613189
El-nummer
9978867198
VVS-nummer
353590140
BodyColor
Black
Material
Black painted steel
Fan speed [rpm]
1420
