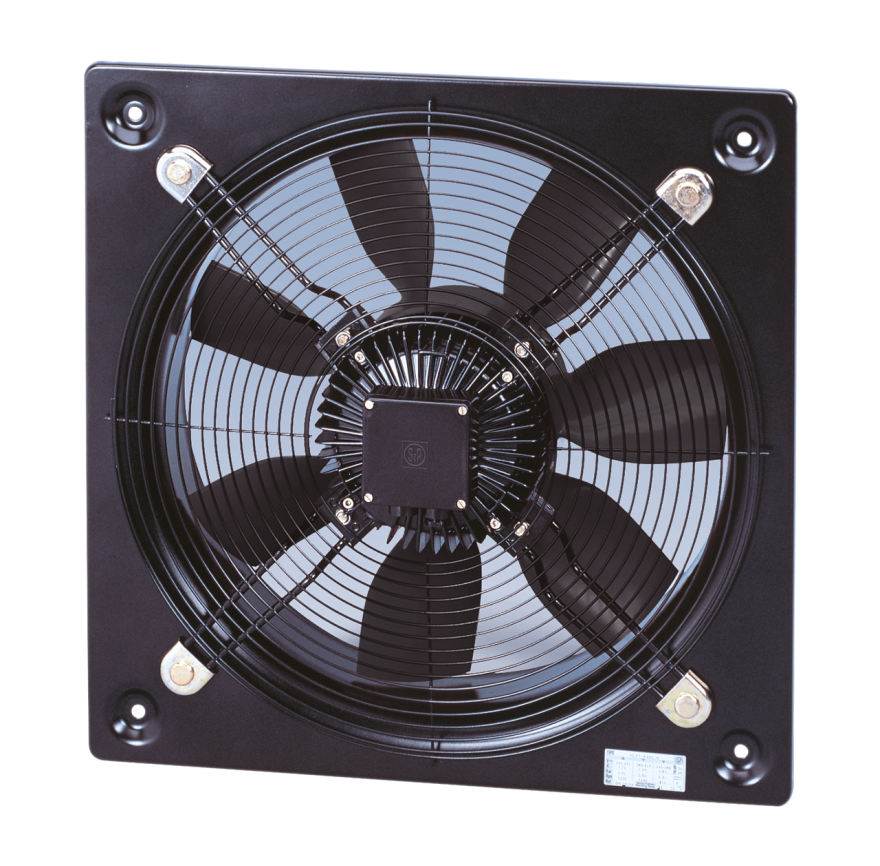

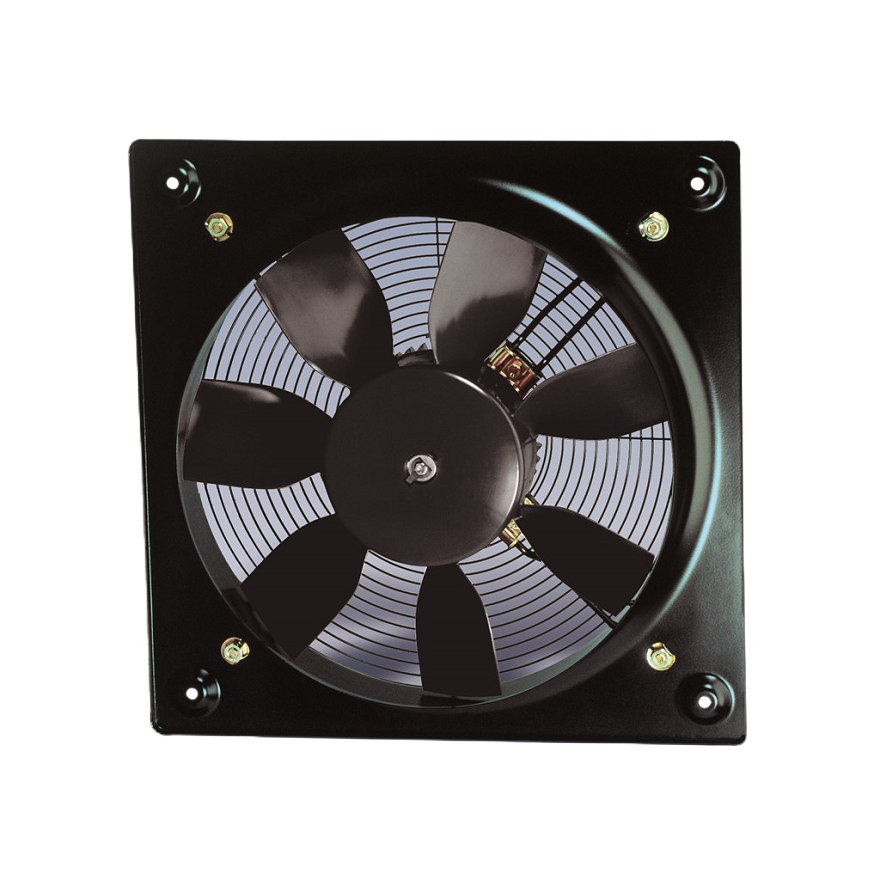

HC 500 with protective grid
250.34.3500.2
Propeller fans, which are especially intended for industrial purposes, such as extraction from warehouses, workshops and the like.
Size
Propeller fans, which are especially intended for industrial purposes, such as extraction from warehouses, workshops and the like. Air volumes from approx. 1,000 m3/h to 9,000 m3/h. The models can be supplied in 400 V. 230 V. Fan frame and motor housing made of lacquered aluminium. Propeller in fiberglass reinforced plastic. Thermal protection of motor. Vibration dampened engine mount. Closed engine, water and dustproof (Class B). Protection class IP 65. Internal protective grid. External blinds are supplied as an additional accessory. Temperature range - 40O C - + 70OC. Adjustment option Can be mounted either horizontally or vertically. Propeller blades with 340 angle. Protection class IP 65.
Specifications
Energy consumption [W]
675
Luftmængde ved 0 Pascal [m3/t]
9140
Kapslingsklasse
IP65
Minimum sound pressure at 3 meters [dB(A)]
68
Control
None
Material
Black painted steel
Voltage [V]
230
Specifications
Energy consumption [W]
675
Luftmængde ved 0 Pascal [m3/t]
9140
Kapslingsklasse
IP65
Minimum sound pressure at 3 meters [dB(A)]
68
Control
None
Material
Black painted steel
Voltage [V]
230
Weight and measurements
Maximum width [mm]
630
Maximum depth [mm]
150
Maximum height [mm]
630
Aftræksdimension (mm)
Ø500
Packaging width(mm)
634
Packaging depth [mm]
245
Packaging height(mm)
634
Net weight [kg]
17.2
Weight
19
Features
Control
None
Timer funktion
Nej
Fugtsensor
Nej
Technical specifications
Energy consumption [W]
675
Kapslingsklasse
IP65
Luftmængde ved 0 Pascal [m3/t]
9140
Minimum sound pressure at 3 meters [dB(A)]
68
Maximum sound pressure at 3 meters [dB(A)]
68
Voltage [V]
230
Other specifications
EAN
8413893038173
El-nummer
9978867211
VVS-nummer
353590150
BodyColor
Black
Material
Black painted steel
Fan speed [rpm]
1400
Downloads
Here you will find all documents relevant to this product
